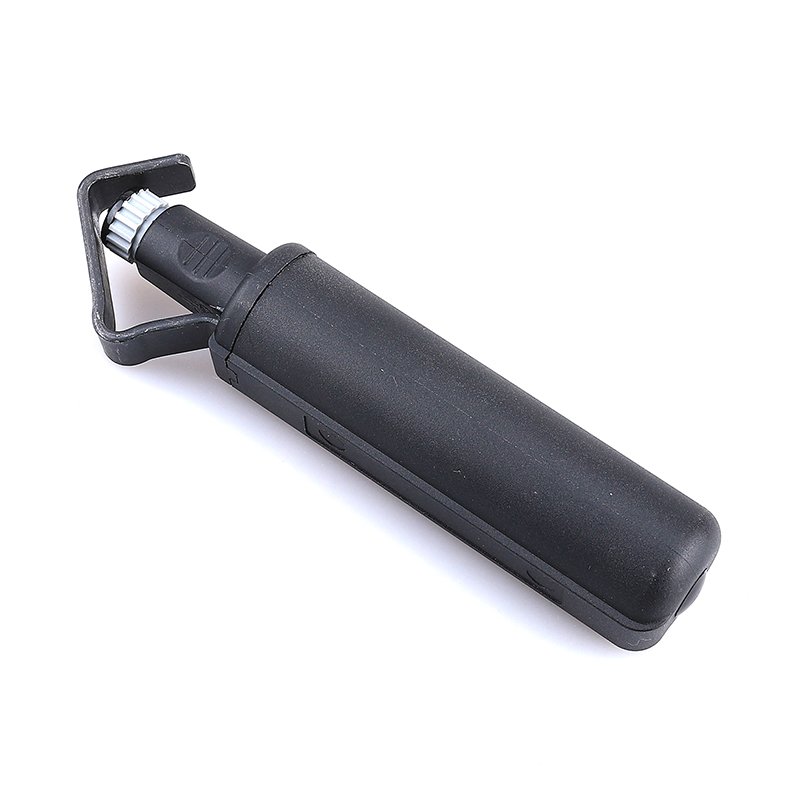

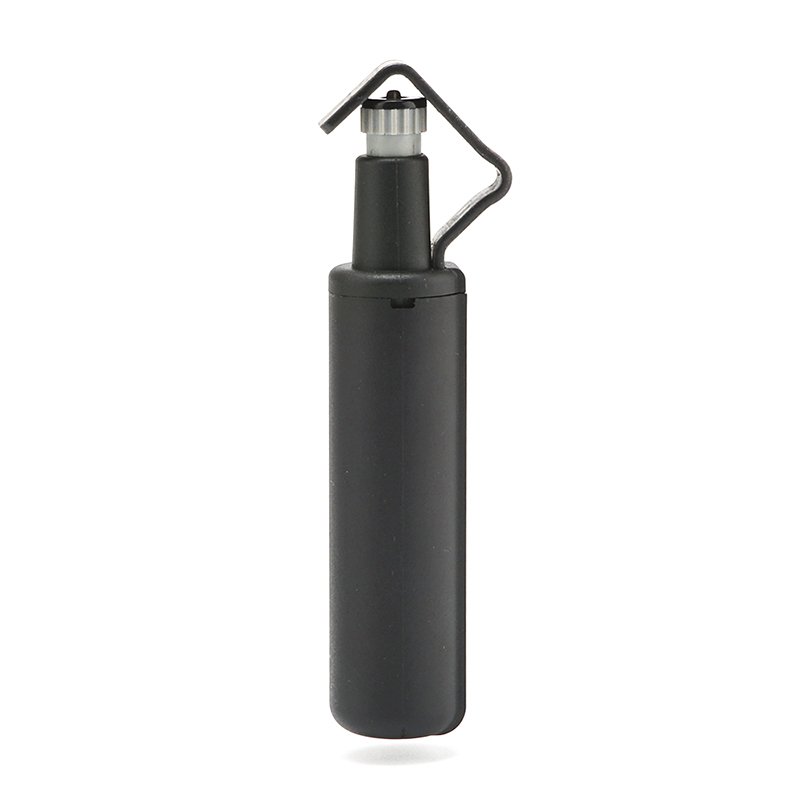

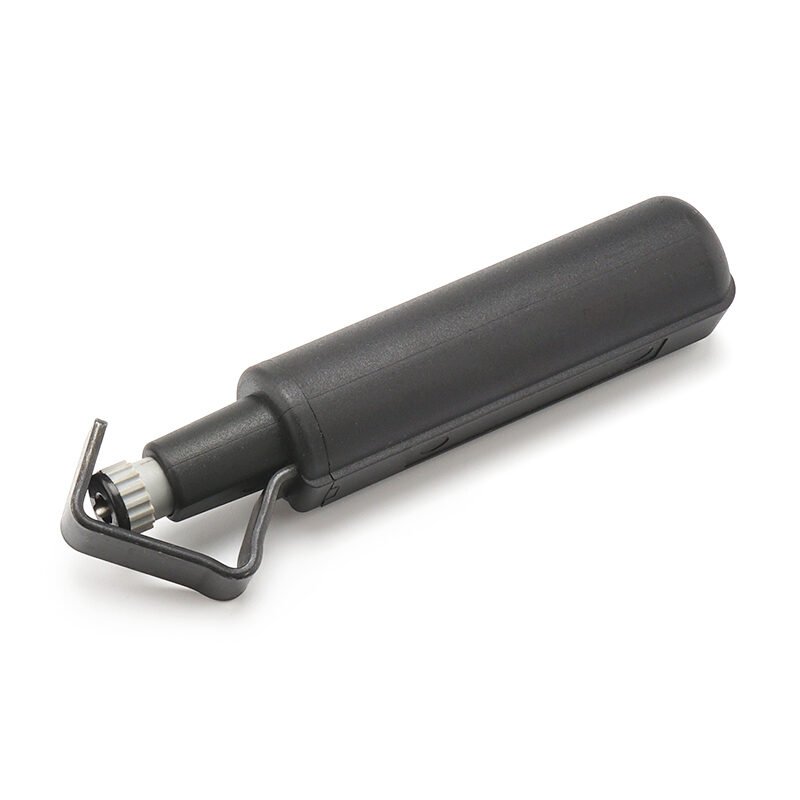

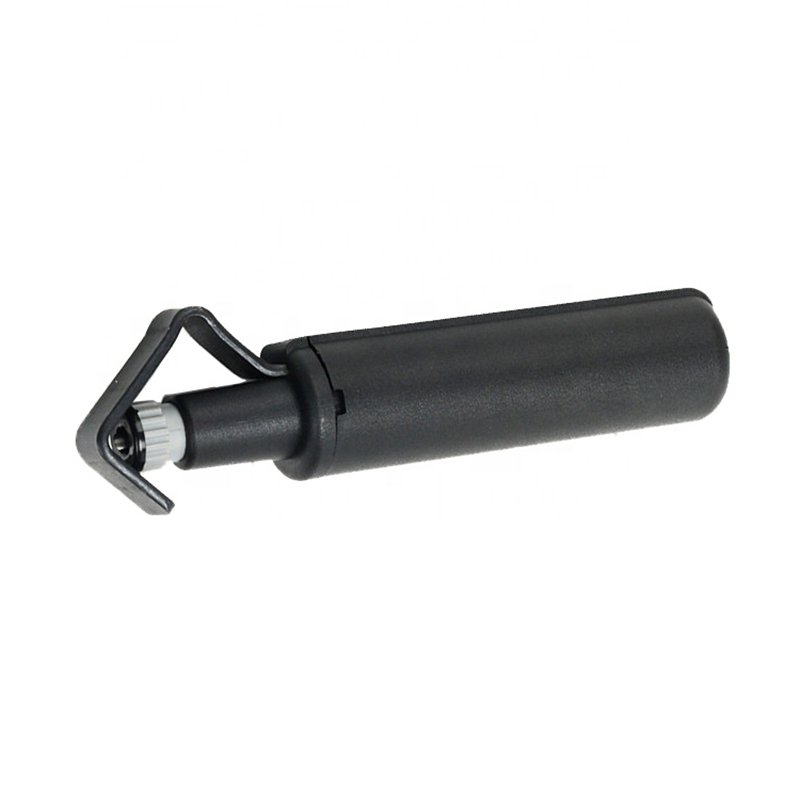

4.5-29mm Round Cable Stripper
The Round Cable Stripper is a versatile and easy-to-use tool that is designed for fast, safe, and precise cable stripping. It is a triple action tool that can be used for end stripping, spiral cuts, and jacket removal. The Round Cable Stripper has an adjustable blade that can be used for various cable diameters. The blade is also long-lasting and easy to replace.
Description
Triple Action Round Cable Stripper | Easy & Precise Jacket Removal
Features
- Triple action tool for end stripping, spiral cuts, and jacket removal
- Adjustable blade for various cable diameters
- 90-degree blade rotation for easy operation
- Long-lasting blade
- Easy to use

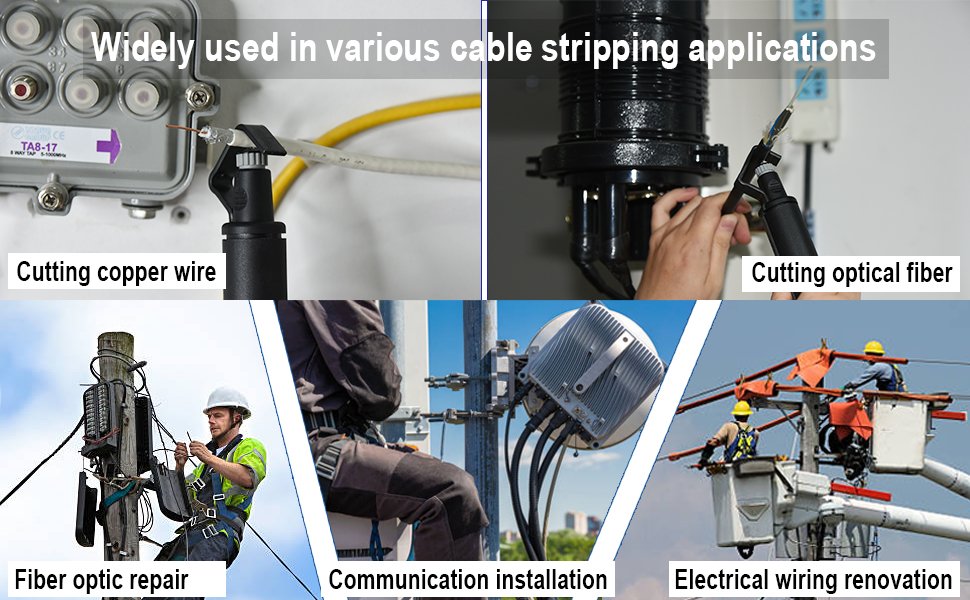

Applications
- Maintenance in Telecome
- Maintenance CATV
- Test Lab of optical fibers
- Other Fiber Optic Measurements

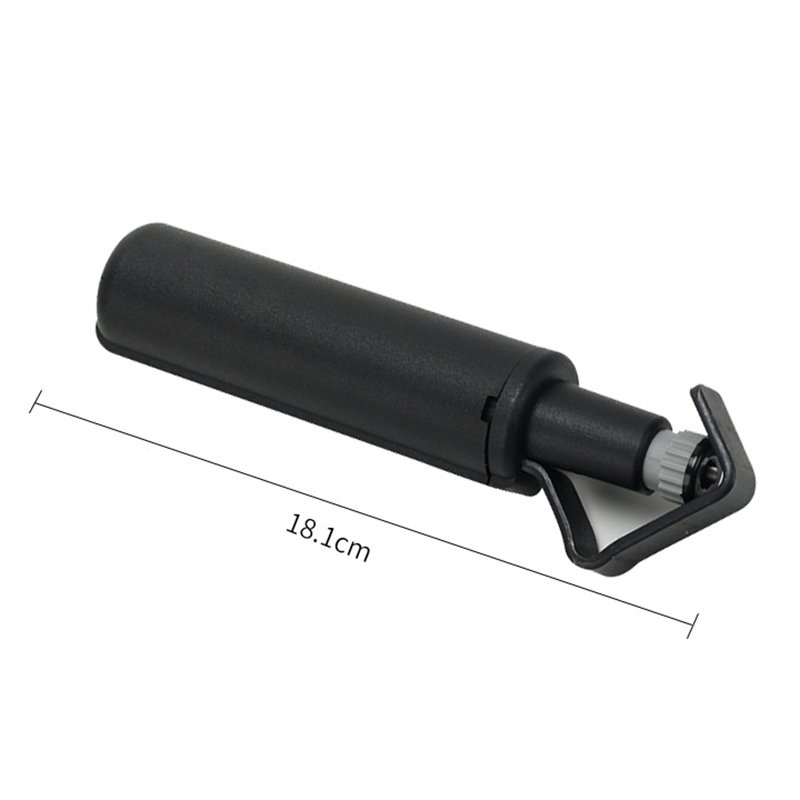

Product Specifications
| Parameter | Value |
| Wire Stripping Tool |
Round Cable Stripper
|
| Color | Black |
| Functions |
Strip for PE, PVC, Rubber of the Sheath out of the Cable
|
| Range | 4.5mm-29mm |
| Cutting Track |
Horizontal, Vertical, Spirale
|
How to Use

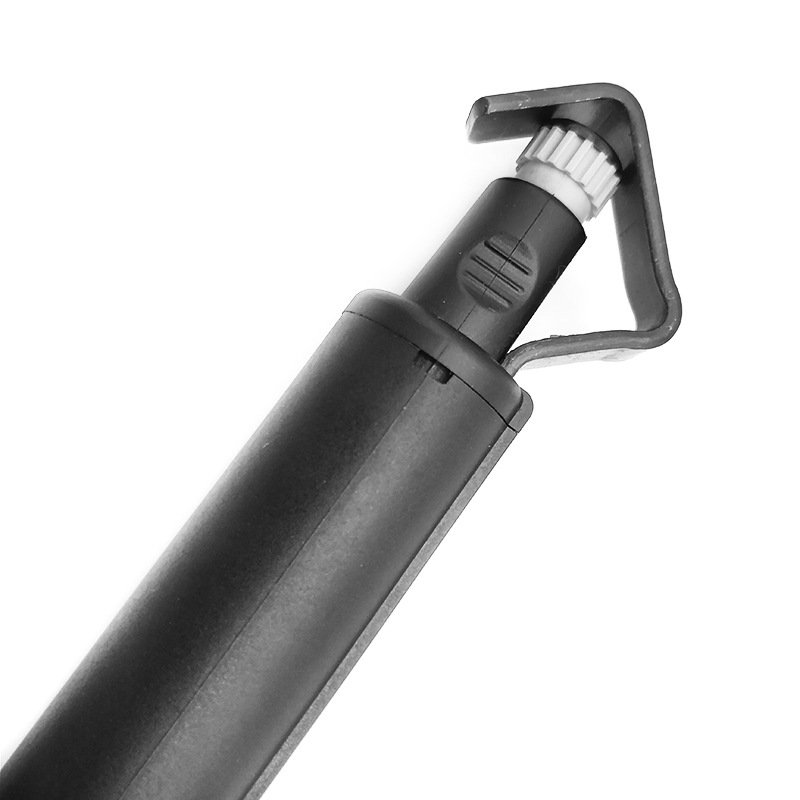

- Adjust the cutting depth of the blade to the insulation thickness by rotating the knurled head.
- With thumb on the back of upper jaw frame, push upper jaw outward, insert cable at desired position and release upper jaw.
- The first cut will be a rotary cut around the cable.
- For a longitudinal cut, twist the tool handle 1/4 turn to the right and pull toward the end of cable.
- For spiral cut, pull up on the collar of the tool to set tool blade at an angle for spiral cut.
- In this position, the tool will have a small space exposed between the collar and the body indicating the tool is set for spiral cutting.
- To return tool to original position, push down on collar and twist to the left. The collar will lock into position.
- To replace the blade, lift the upper jaw frame and unscrew the knurled head screw to gain access to the blade. Lift out the blade and put replacement into slot provided in the tool and replace the knurled head.
Additional Information
- This tool is a manually operated cutting device designed for fast, safe and precise jacket removal of PE, PVC and Rubber jackets.
- Both end and mid-span stripping made easy.
