8-28.6mm Armored Cable Slitter | Fiber Optic Cable Slitter | Armored Cable Stripper
The 8-28.6mm Armored Cable Slitter is a versatile tool that can be used for a variety of tasks, including slitting the corrugated copper, steel, or aluminum armor layer on fiber optic cables. It is designed to cut out the armor sheath of the other layer of the cable to obtain the internal fiber optic cable. The 8-28.6mm Armored Cable Slitter is a professional-grade tool that is ideal for mid-span or end slitting loose tube micro cables.
Description

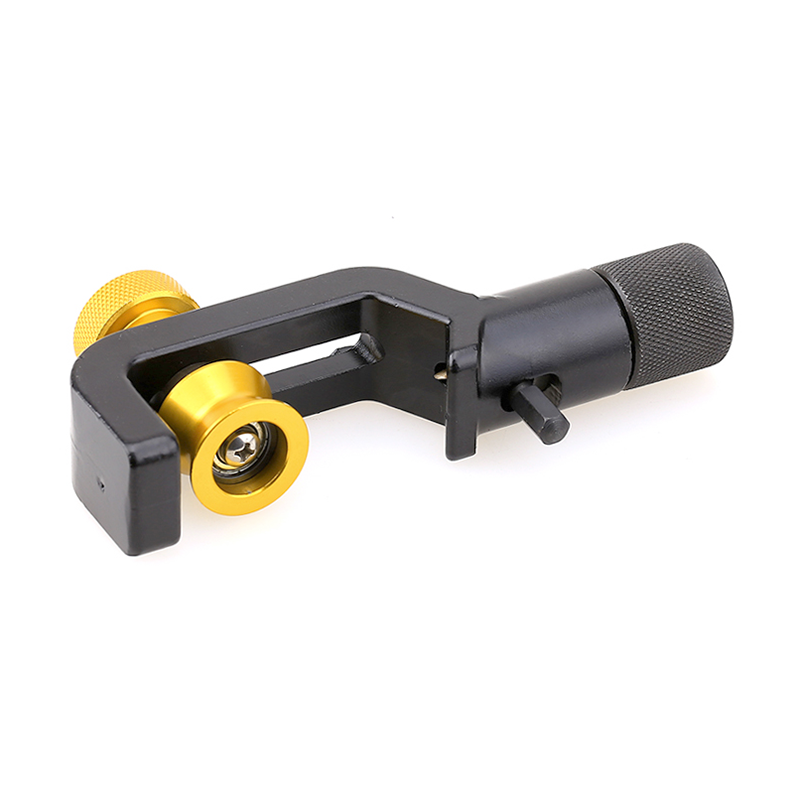

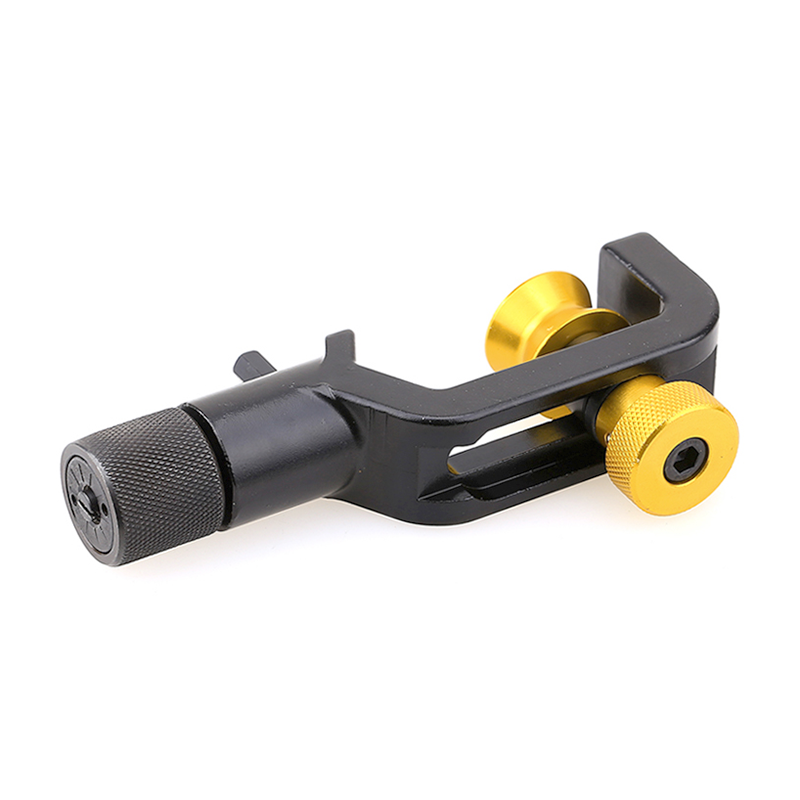

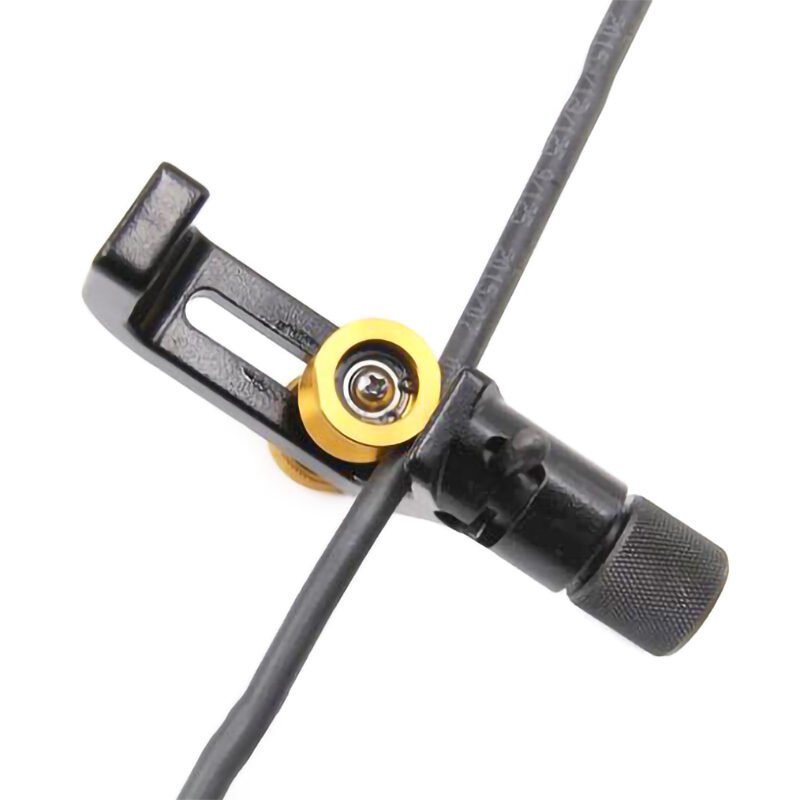

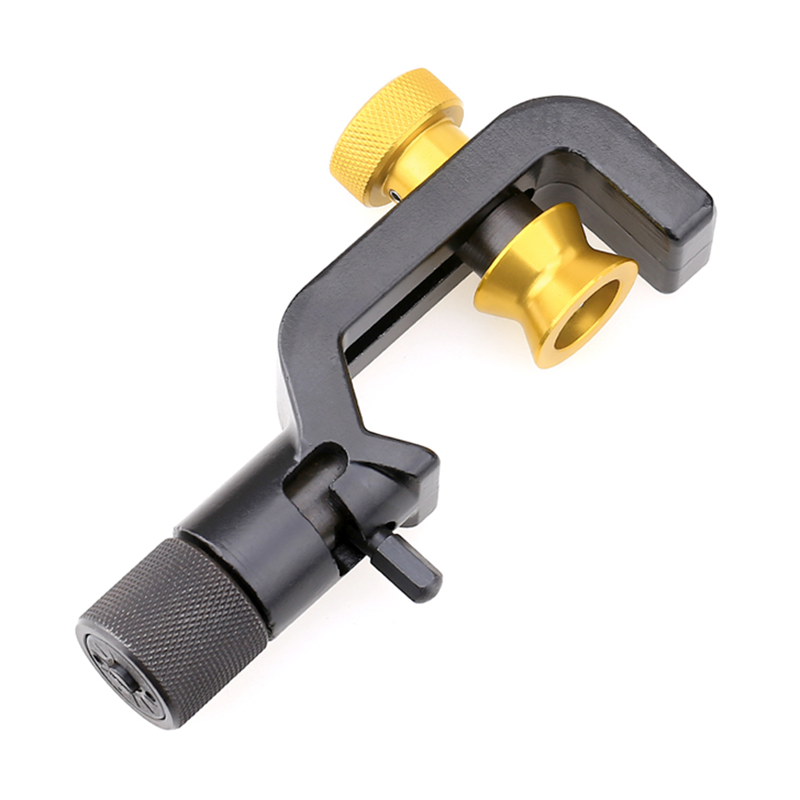

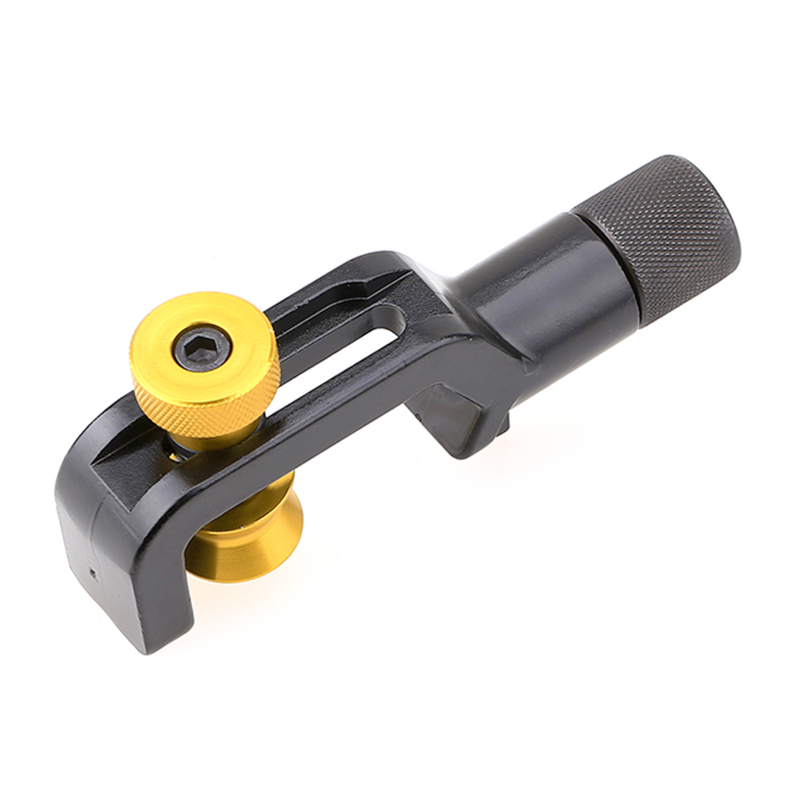

8-28.6mm Armored Cable Slitter for Fiber Optic Cable
Features
- Slits corrugated copper, steel, or aluminum armor layer for fiber feeder, central tube, and other armored cables
- “Roller” style cable follower provides cable stability and allows for easier tool movement along the cable
- Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting)
- Bottom slot screw has 10 graduations that adjusts the blade height as it is turned
Applications
- Maintenance in telecom
- Maintenance in CATV
- Test labs of optical fibers
- Other fiber optic measurements
Specifications
| Parameter | Value |
| Stripping diameter | 8-28.6mm |
| Material | Aluminum alloy |
| Blade angle |
Rotate 90 degrees
|
| Handle length | 45mm |
| Size |
130mm x 55mm x 25mm
|
Benefits
- It is a versatile tool that can be used for a variety of tasks.
- It is a professional-grade tool that is ideal for mid-span or end slitting loose tube micro cables.
- It is easy to use and adjust.
- It is made from durable materials and is built to last.
How to Use
- To use the 8-28.6mm Armored Cable Slitter, first open the jaws of the tool by pressing the release button.
- Place the cable in the jaws of the tool and adjust the blade height using the bottom slot screw.
- Close the jaws of the tool and squeeze the handles to cut the armor sheath of the cable.
- To rotate the blade 90 degrees, activate the blade lever. This is useful for mid-span preparation (ringing and slitting).
Tips
- When using the 8-28.6mm Armored Cable Slitter, be sure to wear safety glasses and gloves.
- Do not use excessive force when cutting the armor sheath of the cable.
- If the cable is too thick for the 8-28.6mm Armored Cable Slitter, use a larger tool.
Conclusion
The 8-28.6mm Armored Cable Slitter is an essential tool for anyone who works with fiber optic cables. It is a versatile, easy-to-use, and durable tool that is sure to come in handy for a variety of tasks.
