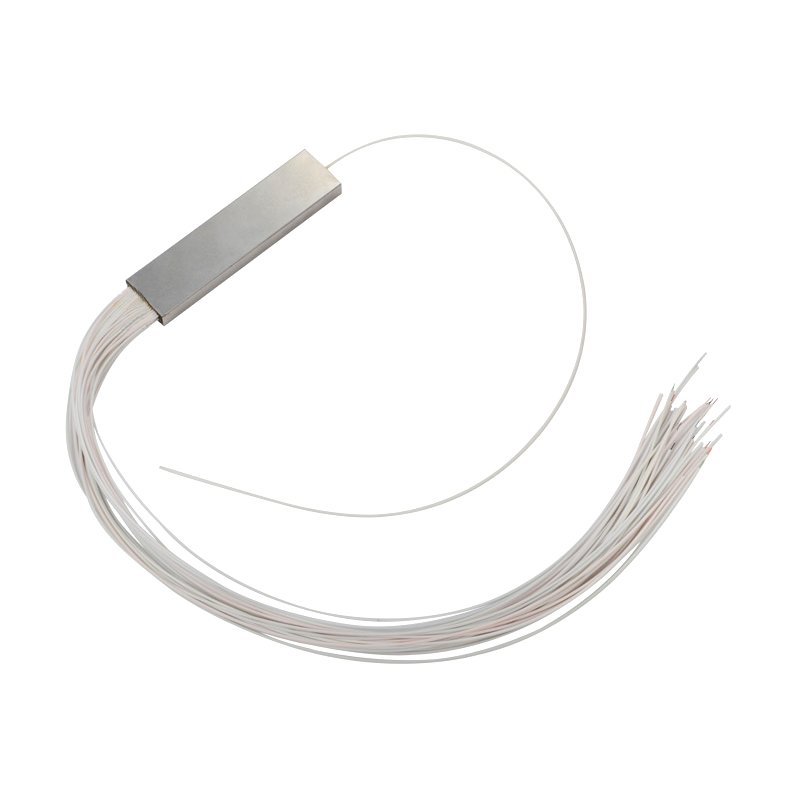

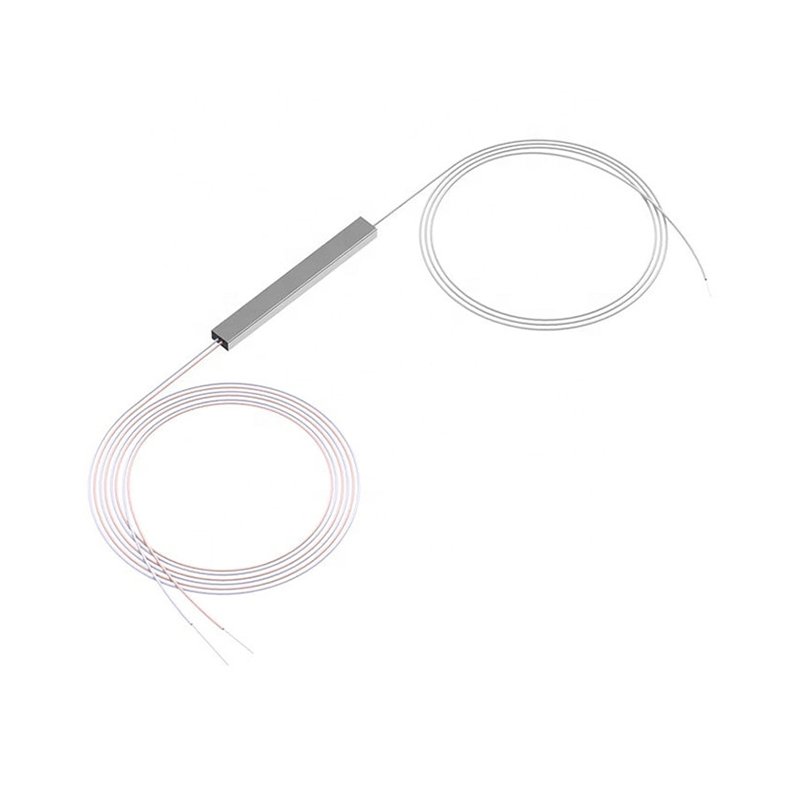

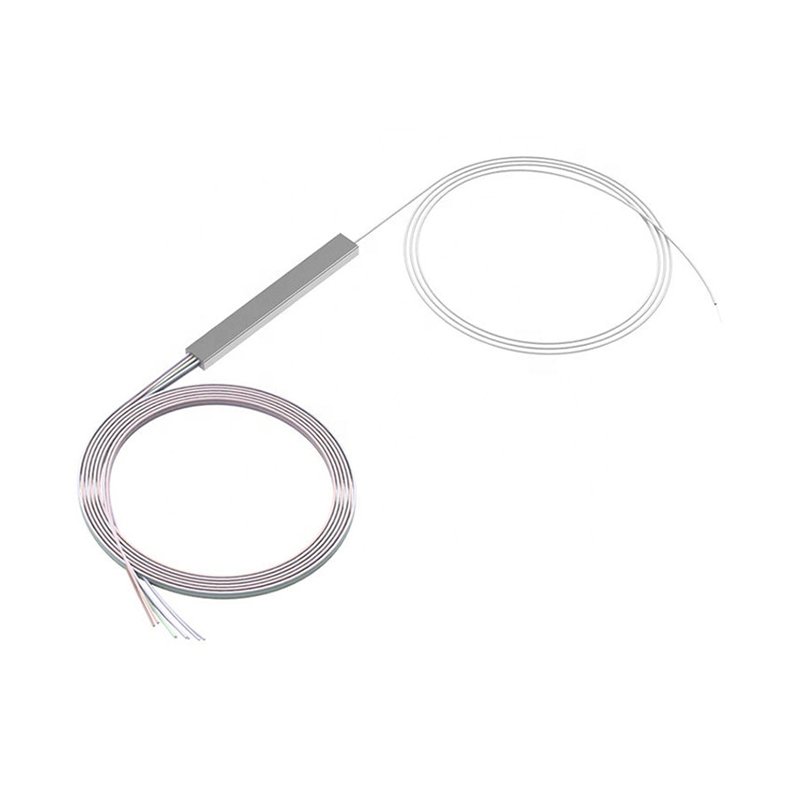

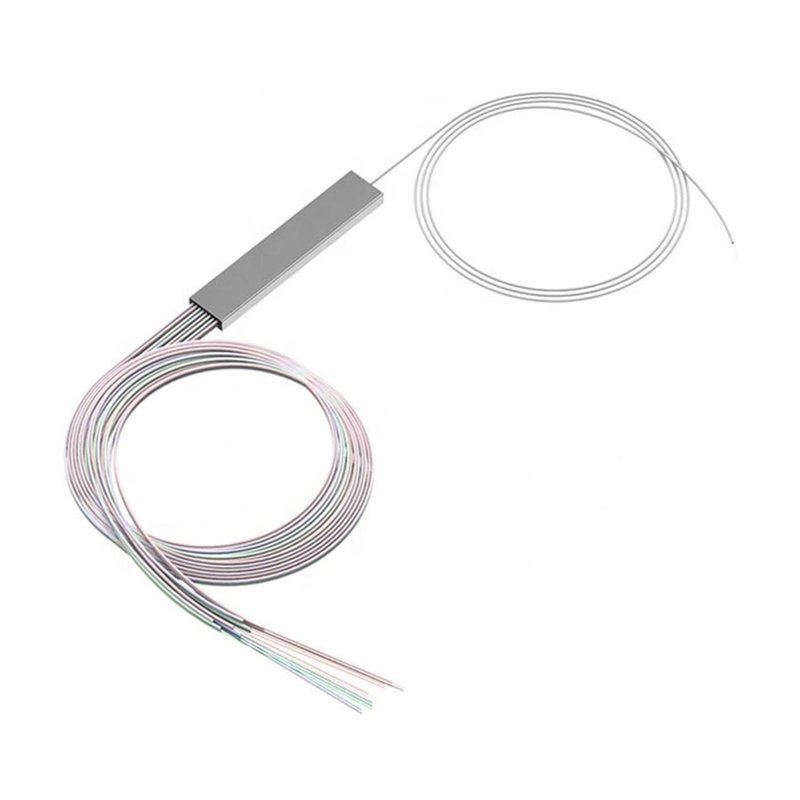

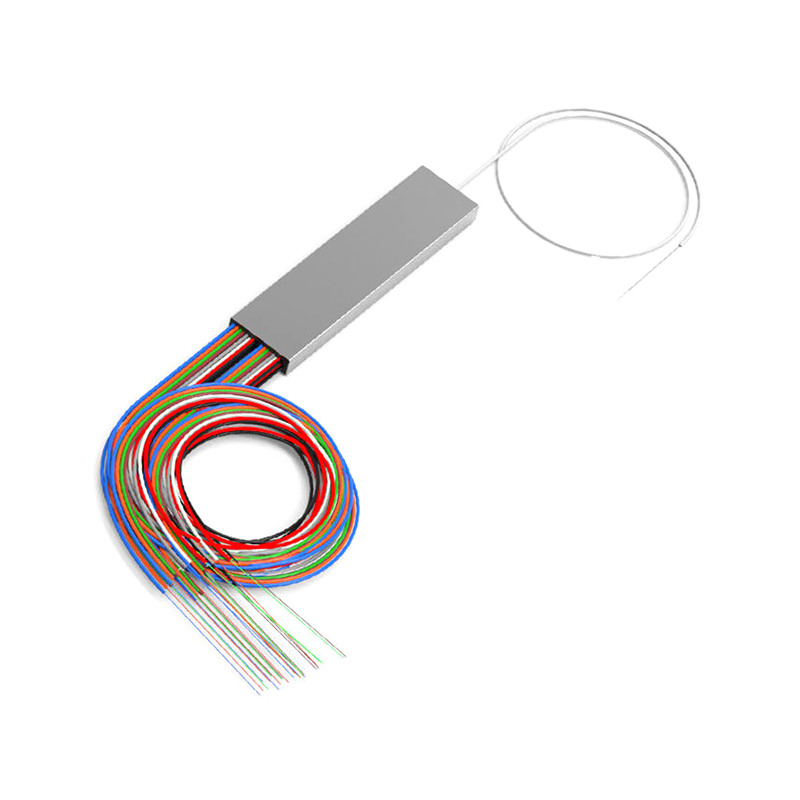

Bare Fibre PLC Splitter

A Bare Fibre PLC Splitter is a passive optical device that splits an optical fiber signal into multiple channels. It is widely used in a variety of applications, including Fiber to the Home (FTTH), Fiber to the Building (FTTB), and Passive Optical Networks (PON).

Description

High Reliability Bare Fibre PLC Splitters | Low Insertion Loss | B2B Wholesale

A Bare Fibre PLC Splitter is a passive optical device that splits an optical fiber signal into multiple channels. It is a versatile device that can be used in a variety of applications, including:

  • Fiber optic networking
  • Fiber optic communication
  • Fiber optic sensors

Bare Fibre PLC Splitters are known for their small size, high reliability, and low insertion loss. They are also available in a wide variety of split ratios, making them suitable for a wide range of applications.

Features

  • Small size and light weight
  • High reliability and stability
  • Low insertion loss and low polarization dependent loss
  • High channel counts
  • Excellent environmental stability and widely used
  • Connector Type: SC or Customer specified

Common Parameters

Parameter Value
Operating Wavelength 1260-1650(mm)
Fiber Type
G657A1 or as customers’ order’e
Port Configuration
1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 1×128
Insertion Loss (dB)
3.8/4.0, 7.1/7.3, 10.2/10.5, 13.5/13.7, 16.5/16.9, 20.5/21.0, 23.8/24.2+
Loss Uniformity (dB)
0.4, 0.6, 0.8, 1.2, 1.5, 2.0, 2.5
Polarization Dependent Loss(dB)
0.2, 0.2, 0.2, 0.25, 0.3, 0.35, 0.4€
Wavelength Dependent Loss(dB)
0.3, 0.3, 0.3, 0.5, 0.5, 0.5, 0.5
Temperature Dependent Loss (-40~85) (dB)
0.40, 0.4, 0.4, 0.5, 0.5, 0.5, 0.5
Return Loss (dB) 55/50
Directivity (dB) > 55
Operating & storage temperature (°C) -40~80

Applications

  • FTB Deployments (GPON/ΒΡΟΝ/ΕΡΟΝ)
  • Cable television (CATV)
  • Local area networks (LAN)
  • Test equipment
  • Passive optical networks (PON)

Benefits

  • Reduced cost
  • Increased efficiency
  • Improved network performance
  • Simplified network design

How to Choose the Right Bare Fibre PLC Splitter

When choosing a Bare Fibre PLC Splitter, it is important to consider the following factors:

  • Operating wavelength
  • Fiber type
  • Split ratio
  • Insertion loss
  • Loss uniformity
  • Polarization dependent loss
  • Wavelength dependent loss
  • Temperature dependent loss
  • Return loss
  • Directivity
  • Operating & storage temperature

Once you have considered these factors, you can choose the Bare Fibre PLC Splitter that is right for your needs.
