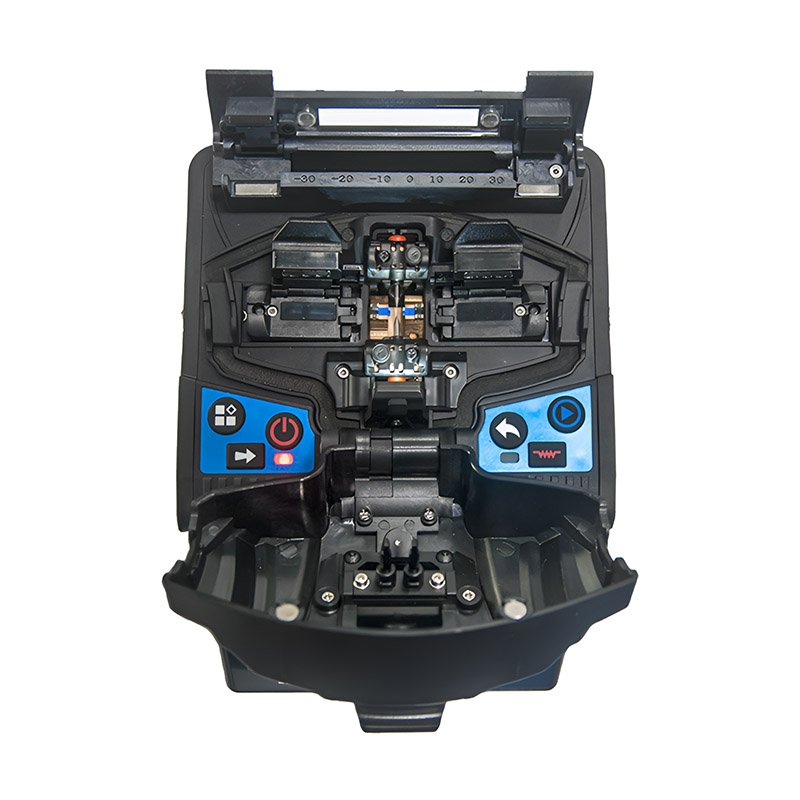

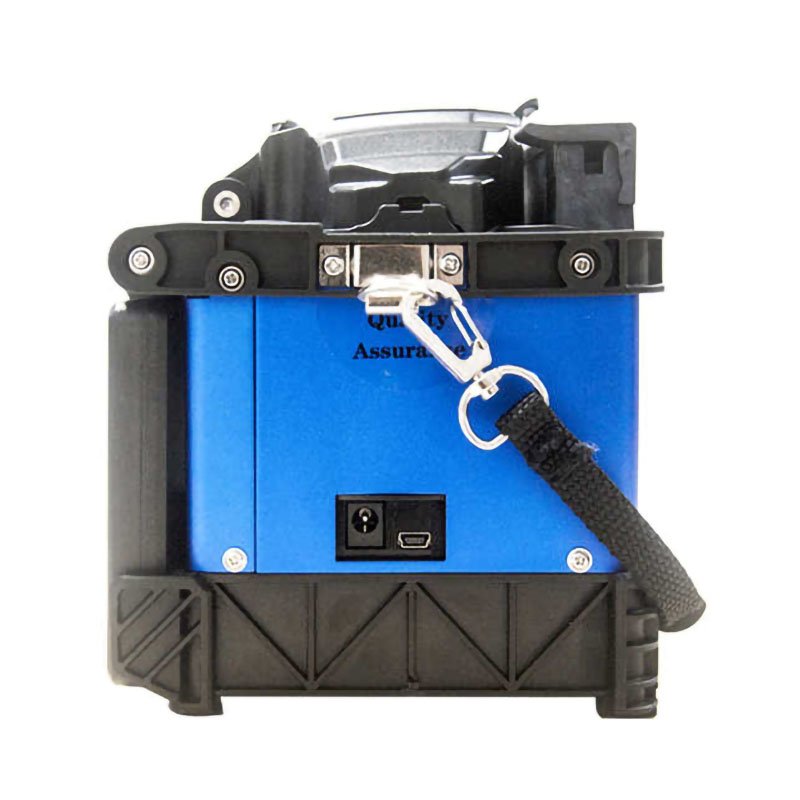

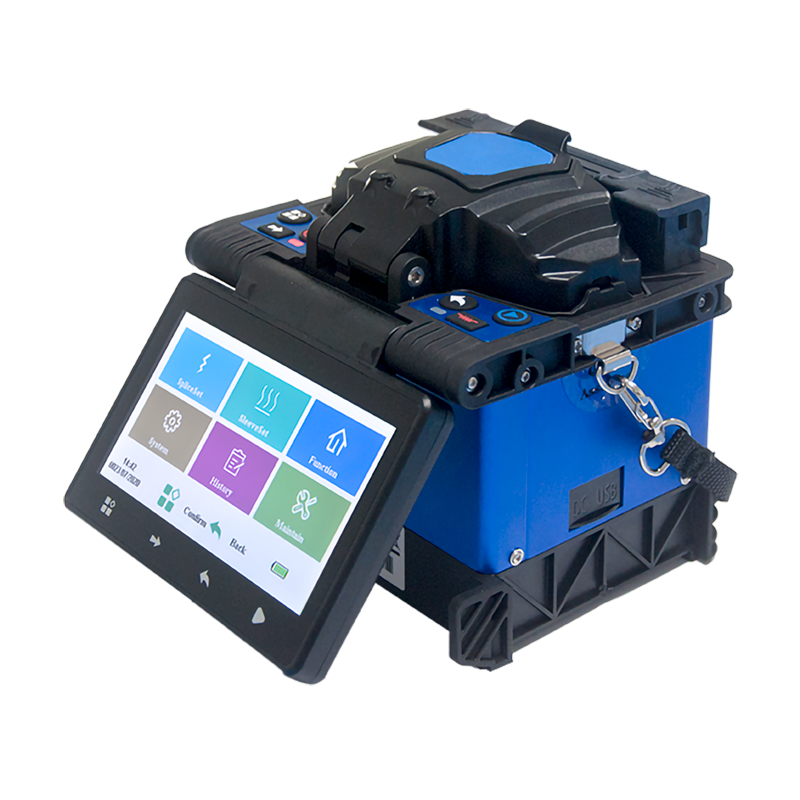

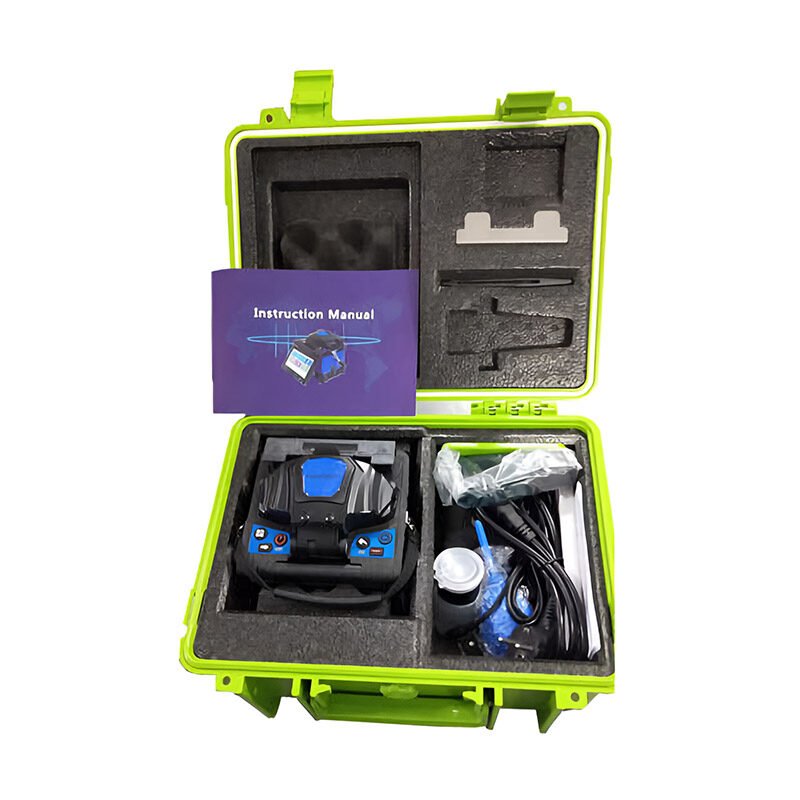

Digital Fiber Fusion Splicer
The Digital Fiber Fusion Splicer is a versatile tool that can be used for a variety of tasks, such as splicing optical fibers, making them perfect for a variety of applications. The Digital Fiber Fusion Splicer is a versatile tool that can be used for a variety of tasks, such as splicing optical fibers, making them perfect for a variety of applications.
Description
High Performance Digital Fiber Fusion Splicer | Fast, Accurate Splicing
Features
- Core to core alignment by PAS technology (PAS Protile Alignment System)
- Fiber core can be displayed clearly
- Single X or Y view and X&Y view simultaneously
- Auto check & display quality of cleaved end face

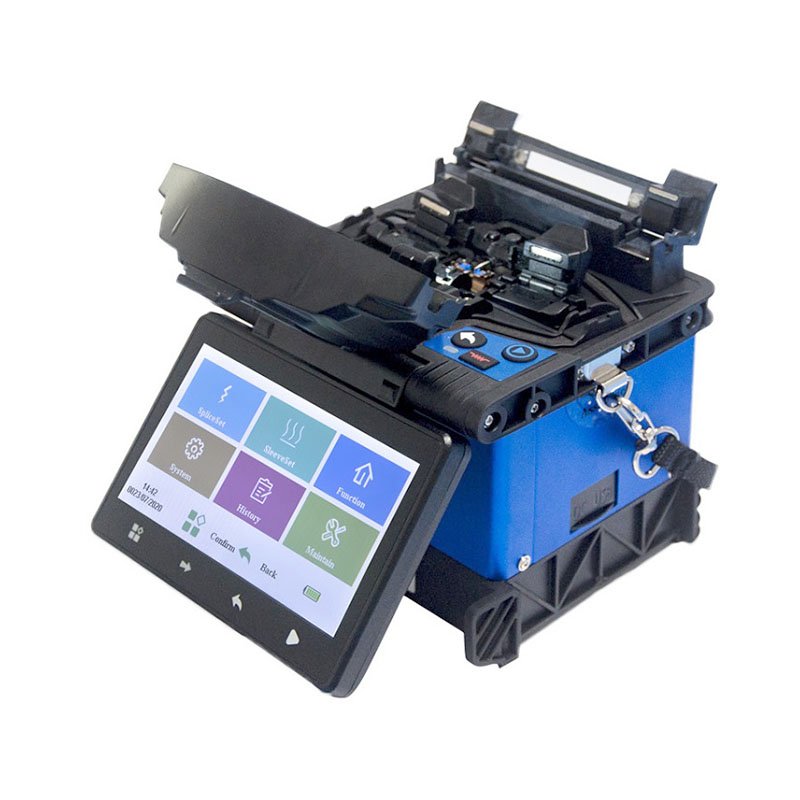

- 3.5-inch color LCD monitor USB interface
- Software upgrade via USB interface
Applications
- Maintenance in Telecom
- Engineering maintenance of optical fiber network
- Engineering maintenance of Digital Data Network
- Teaching and research of optical communication
- Other optical fiber works
Technical Specifications
| Parameter | Value |
| Applicable Optical Fibers |
SM(G.652), MM(G.651), NZ(G.655), DS(0.653), COS(G.654).BUI(G.657), EDF
|
| Applicable Core Type | Single Core |
| Applicable Fiber Diameter |
Cladding diameter 80~150µm, Coating diameter 100~1000μm
|
| Splicing Mode |
Pre-store 8 groups Customize 792 groups
|
| Splicing Results |
10000 group splicing records & splicing images
|
| Recording | Recording- |
| Splicing Speed |
9 sec (Standard Mode) 7s (Fast Mode)
|
| Alignment |
Core to core alignment. Coat alignment
|
| Splicing Loss |
Average Splicing Loss 0.02dB(SM), 0.01dB(MM), D4dB(DS), 0.04dB(NZ)
|
| Return Loss | 26dB |
| Splicing Loss Estimation | Exist |
| Power Supply |
Input 220V±10%, 1.44A, 50/60Hz output 13.5V/5A
|
| Battery |
11.1V Lithium battery, typically splicing/heating 260 times, charging time 3 h, 500 times rechargeable, 5200mAh
|
| Operation Environment |
Altitudes 0~5000m relative humidity 0~95% (No condensation), temperature -20℃~55℃, maximum wind speed15m/s
|
| Storage Conditions |
Relative humidity O 95% (No condensation), temperature-40~80℃
|
| Corrosiveness Resistance |
The main device, components and their materials meet the requirements of GB/T 2423.54-2005 and are not vulnerable to the corrosiveness of fluid pollution.
|
| Weight |
1.19kg (Without battery), 1.53kg(With battery)
|
| Dimension |
1450x131Wx152H(mm)
|
| Heating Shrinkable Tub |
Applicable Diameter 2mm,3mm, 4mm, 6mm
|
| Applicable Length |
60mm, 50mm, 45mm, 40mm, 25mm, 20mm
|
| Heating Time |
2mm tube (10-155 adjustable), 4mm tube (14-196 adjustable), 6mm tube (17-235 adjustable)
|
| Heating Temperature |
10~260℃ (Customizable)
|
|
Auto fiber recognition and heating after covered
|
|
| Others |
Tension Test 2N (Optional)
|
| Display |
5 inches TFT true color HD LCD screen, support multi-language selection
|
| Magnification |
X/Y:200 times, X/Y-400 times
|
| USB Port | USB2.0 |
| Illumination |
LED double white light
|
Benefits
- High speed and accuracy: The Digital Fiber Fusion Splicer can splice optical fibers in as little as 9 seconds, with an average splicing loss of 0.02dB (SM) and 0.01dB (MM).
- Easy to use: The Digital Fiber Fusion Splicer has a simple and intuitive interface that makes it easy to use, even for beginners.
- Durability: The splicer is built to withstand harsh environments with an operating temperature range of -20℃ to 55℃ and a storage temperature range of -40℃ to 80℃.
- Portability: This lightweight and compact splicer (approximately 1.5kg with battery) makes it easy to transport and use in the field.
- Long battery life: The included lithium battery allows for up to 260 splices and heating cycles on a single charge, minimizing downtime.
- Rechargeable battery: The battery can be recharged up to 500 times, reducing operating costs.
- Large, high-definition display: The 5-inch TFT LCD screen provides a clear view of the fiber cores during the splicing process.
- Multiple languages: The user interface can be switched between multiple languages for international use.
- Data storage: The splicer can store up to 10,000 splicing records and images for easy reference and analysis.
- Auto features: Auto functions like core alignment, cleaved end face verification, and heating after fiber cover placement streamline the splicing process and reduce the risk of errors.
- Software upgradeable: The splicer’s software can be upgraded via USB to ensure compatibility with future advancements.
The Digital Fiber Fusion Splicer is a powerful and versatile tool designed to streamline and simplify fiber optic splicing. With its high speed, accuracy, and ease of use, this splicer is ideal for a wide range of applications in telecom maintenance, data network engineering, research, and various other fiber optic projects. Its durability, portability, and long battery life make it a reliable choice for field use. Whether you’re a seasoned technician or just starting out, the Digital Fiber Fusion Splicer can help you achieve professional-grade fiber optic connections.
