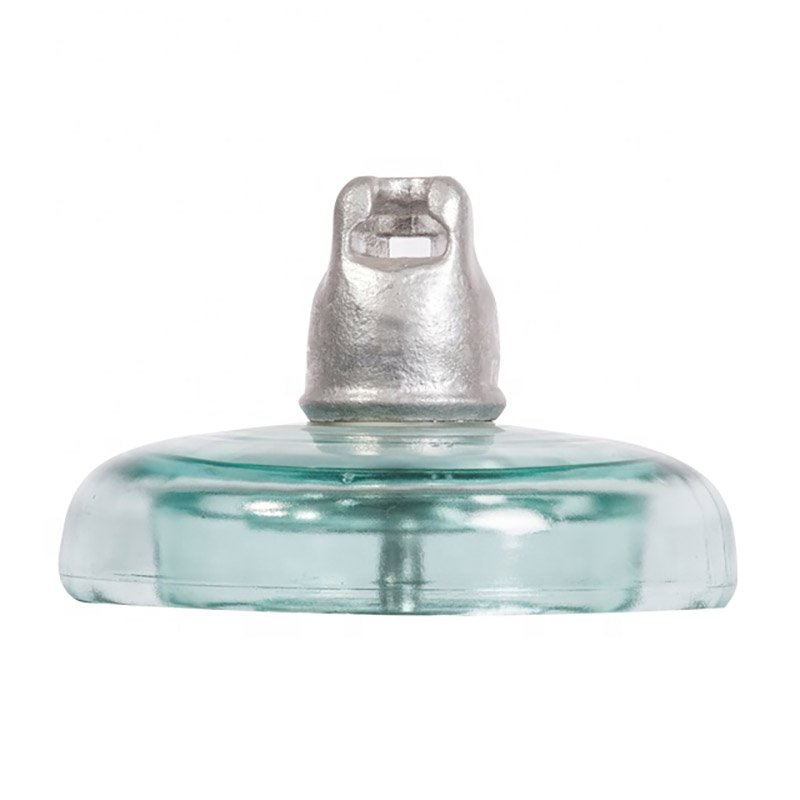

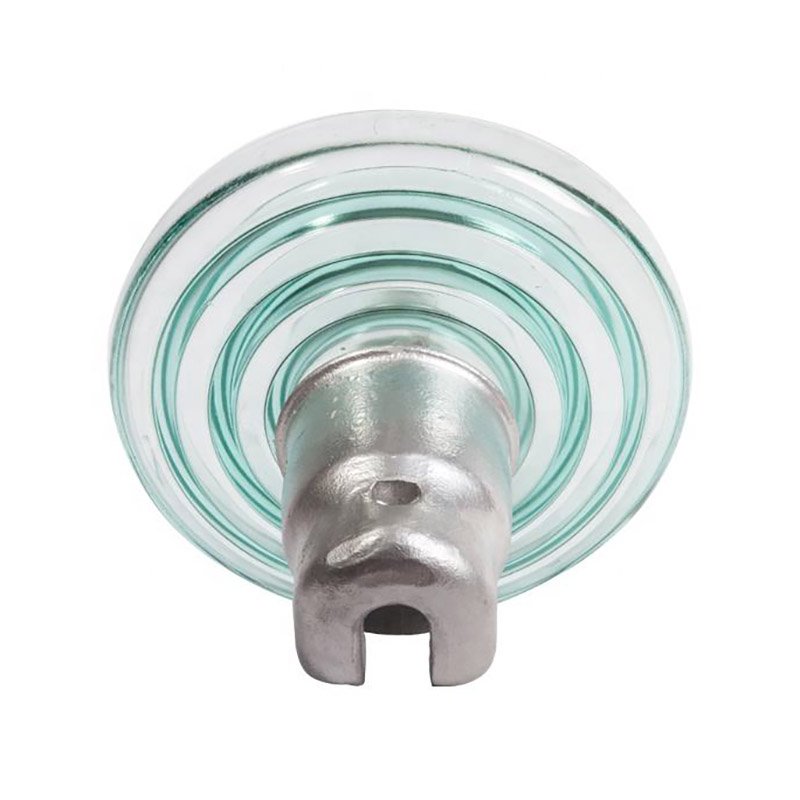

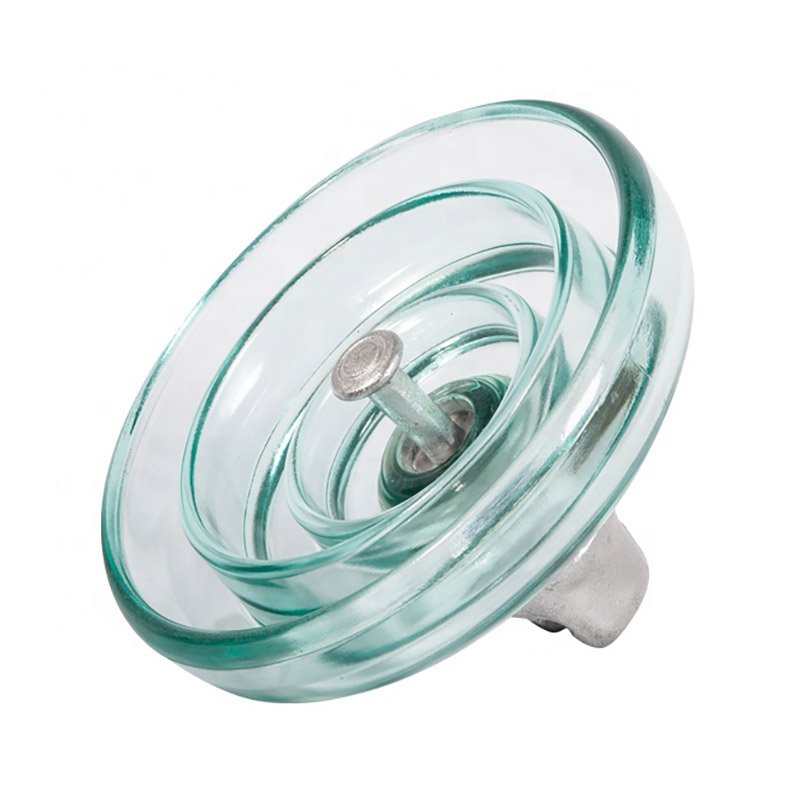

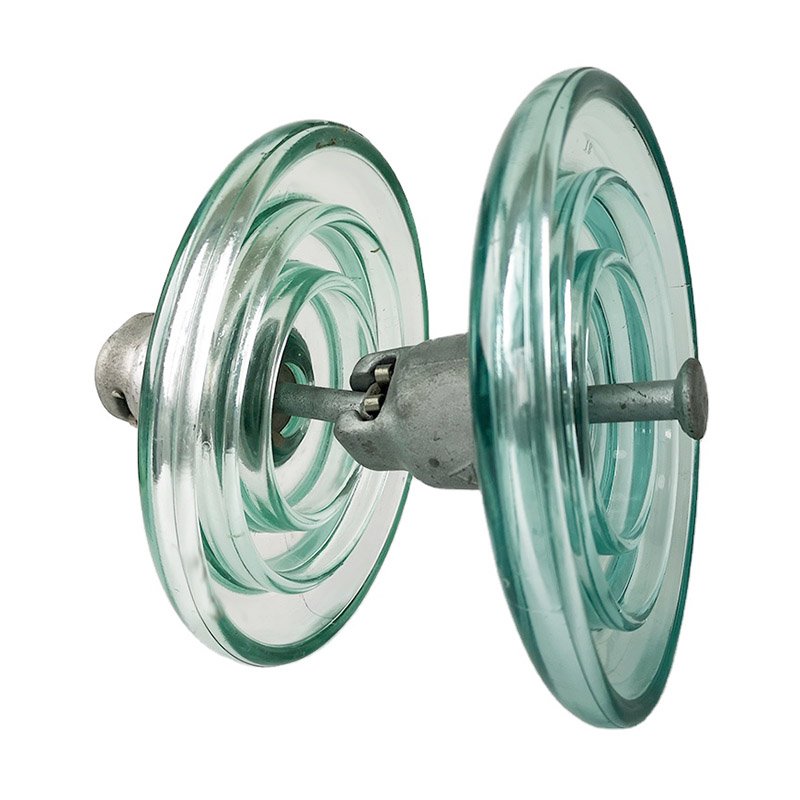

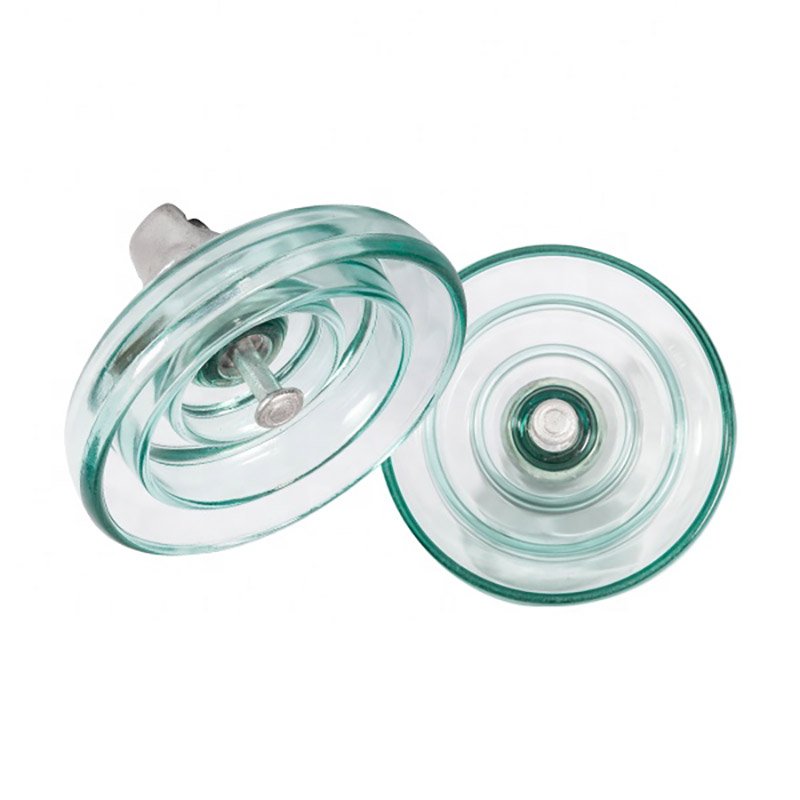

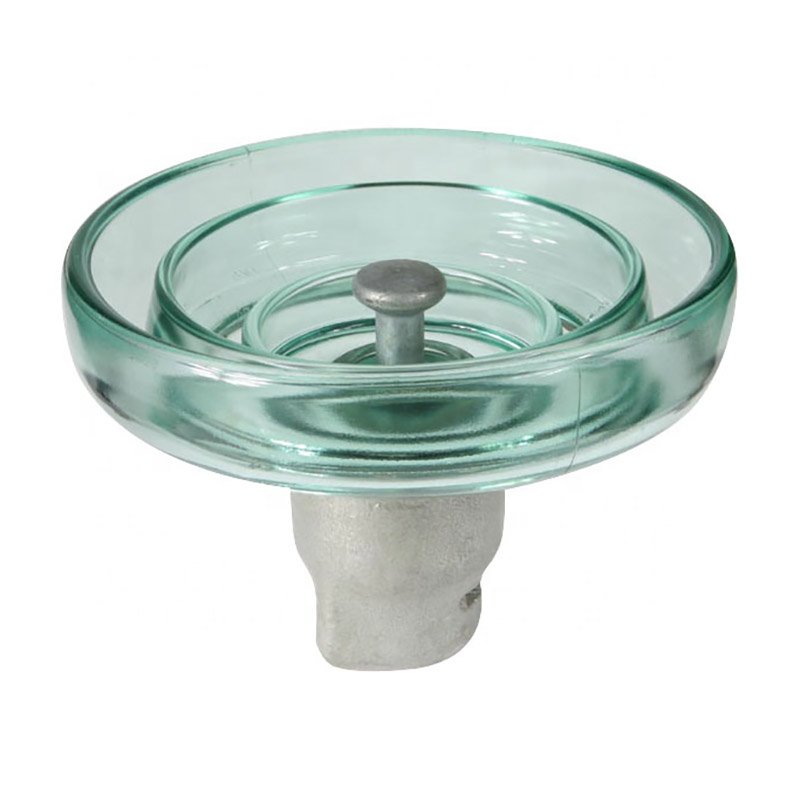

Glass Insulator

A glass insulator is a type of electrical insulator that is made of glass. Glass insulators are used to support and insulate electrical wires and conductors from each other and from the ground. They are commonly used in power transmission and distribution systems, as well as in a variety of other electrical applications.

Description

Glass Insulator

Why use glass insulators? Glass insulators are a popular choice for a variety of reasons, including:

  • High strength and durability: They are very strong and can withstand a lot of wear and tear. They are also resistant to moisture, corrosion, and UV radiation.
  • Excellent electrical insulation properties: They have excellent electrical insulation properties, which means that they can prevent electrical current from flowing between conductors.
  • Long lifespan: They can last for many years with little or no maintenance.
  • Cost-effective: They are a relatively inexpensive option for electrical insulation.

Common applications

  • Power transmission and distribution systems: They are commonly used in power transmission and distribution systems to support and insulate high-voltage lines.
  • Substations: They are also used in substations to insulate electrical equipment and to prevent short circuits.
  • Transformers: They are used in transformers to insulate the primary and secondary windings from each other.
  • Other electrical applications: They are also used in a variety of other electrical applications, such as electric motors, generators, and appliances.

Parameters

Parameter Description
Material Soda-lime glass
Mechanical strength 50-70 MPa
Compressive strength 100-150 MPa
Tensile strength 10-15 MPa
Electrical insulation resistance >1000 MΩ
Dielectric constant 4-5
Dielectric loss factor <0.001
Operating temperature range -40 to 80°C

Benefits

  • High strength and durability
  • Excellent electrical insulation properties
  • Long lifespan
  • Cost-effective
  • Environmentally friendly
  • Easy to install and maintain

How to choose the right glass insulator

When choosing a glass insulator, it is important to consider the following factors:

  • The voltage of the electrical system
  • The mechanical load on the insulator
  • The environmental conditions
  • The desired lifespan
  • The cost
