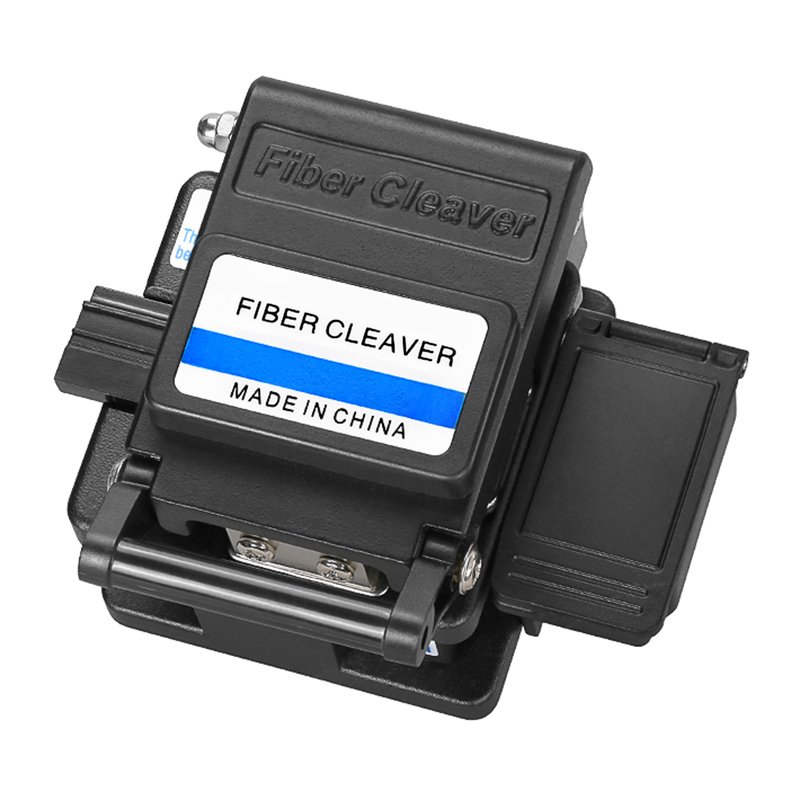

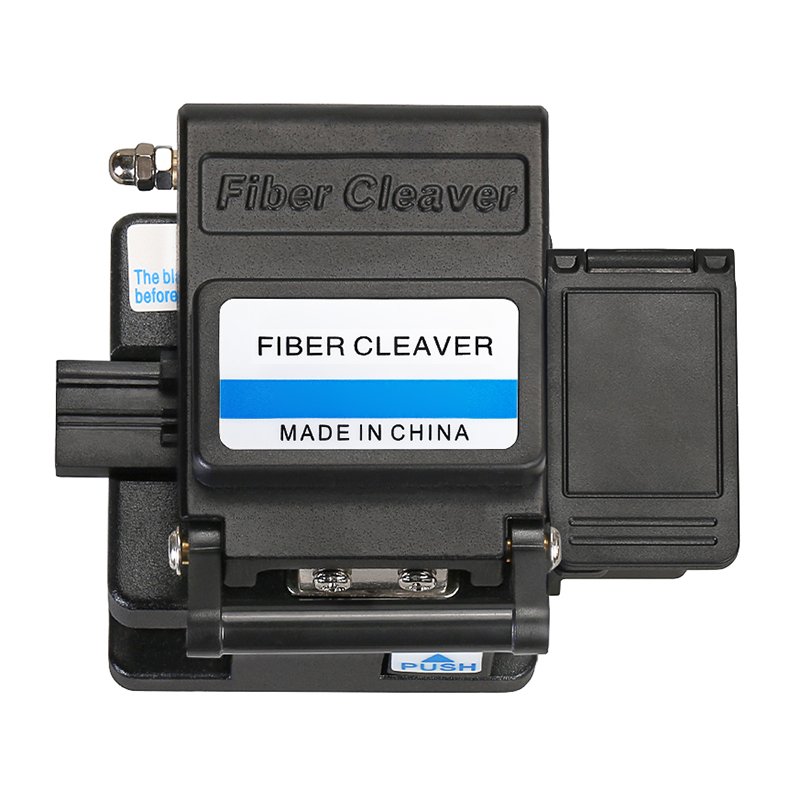

250-900µm High Precision Fiber Cleaver
The High Precision Fiber Cleaver is a compact and portable tool designed for high-precision cutting of single-core optical fibers. It is widely used in telecommunications, CATV, optical fiber testing, and other applications.
Description
High Precision Fiber Cleaver: Clean Cuts, Easy Use, Long Blade Life
Features
- High precision cutting: The High Precision Fiber Cleaver produces clean, flat cleaves with a low cleave angle, which is critical for low-loss optical fiber splicing and transmission.
- Long blade life: The blade is made of high-quality tungsten steel and has a long life of up to 36,000 cuts.
- Easy to use: The High Precision Fiber Cleaver is simple to operate and can be used by anyone with minimal training.
- Compact and portable: It is small and lightweight, making it easy to carry and use in the field.
Applications
- Telecommunications: The High Precision Fiber Cleaver is used to prepare optical fibers for splicing and connectorization in telecommunications networks.
- CATV: The High Precision Fiber Cleaver is used to prepare optical fibers for splicing and connectorization in CATV systems.
- Optical fiber testing: It is used to prepare optical fibers for testing in optical fiber test equipment.
- Other applications: It can also be used in other applications such as medical fiber optics, industrial fiber optics, and military fiber optics.
Specifications
| Parameter | Value |
| Fiber type | Single-core |
| Fiber diameter |
0.25 mm and 0.9 mm
|
| Cleave angle |
Less than 0.5 degrees
|
| Blade life |
Up to 36,000 cuts
|
| Cutting length |
9-16 mm (0.25 mm) or 10-16 mm (0.9 mm)
|
| Operating temperature | -40°C to 80°C |
| Storage temperature | -40°C to 80°C |

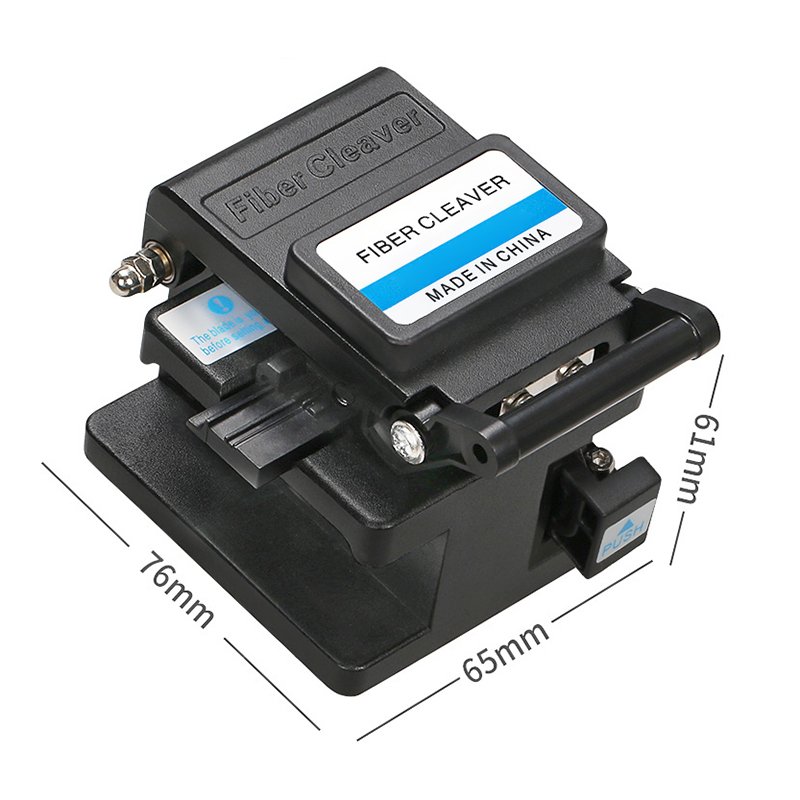

| Dimensions |
65 mm (W) x 76 mm (D) x 61 mm (H)
|
| Weight | 273 g |
Benefits
- Low-loss optical fiber splicing and transmission: The High Precision Fiber Cleaver produces clean, flat cleaves with a low cleave angle, which is critical for low-loss optical fiber splicing and transmission.
- Reduced splicing and connectorization time: The long blade life of the High Precision Fiber Cleaver means that you will spend less time replacing blades and more time splicing and connectorizing fibers.
- Easy to use: It is simple to operate and can be used by anyone with minimal training.
- Compact and portable: It is small and lightweight, making it easy to carry and use in the field.
How to Use

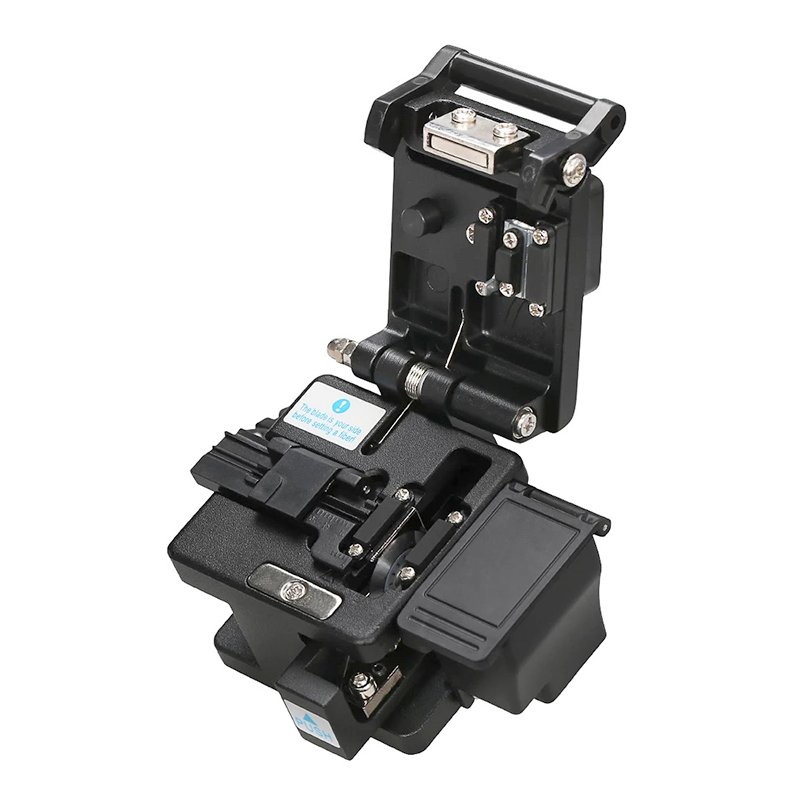

- Open the fiber cleaver cover.
- Place the fiber in the fiber holder.
- Close the fiber cleaver cover.
- Press the lever to cleave the fiber.
- Open the fiber cleaver cover and remove the cleaved fiber.
Additional Information

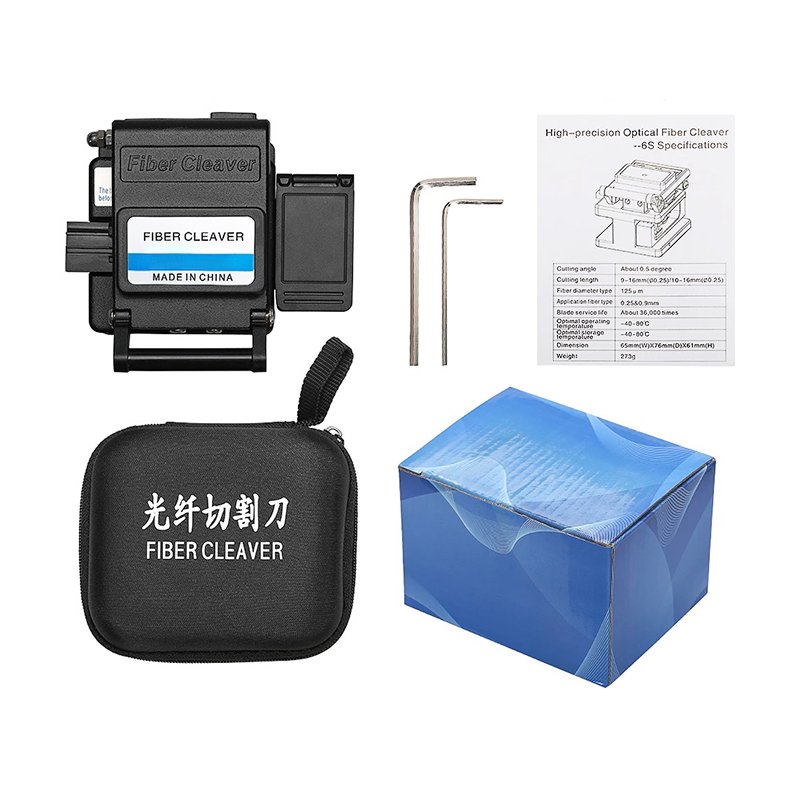

- It comes with a waste fiber storage box to keep your workspace clean.
- It is made of high-quality materials and is built to last.
- It is backed by a 1-year warranty.
Order Your High Precision Fiber Cleaver Today!
The High Precision Fiber Cleaver is an essential tool for anyone who works with optical fibers. It is easy to use, produces high-quality cleaves, and is built to last. Order your High Precision Fiber Cleaver today!
