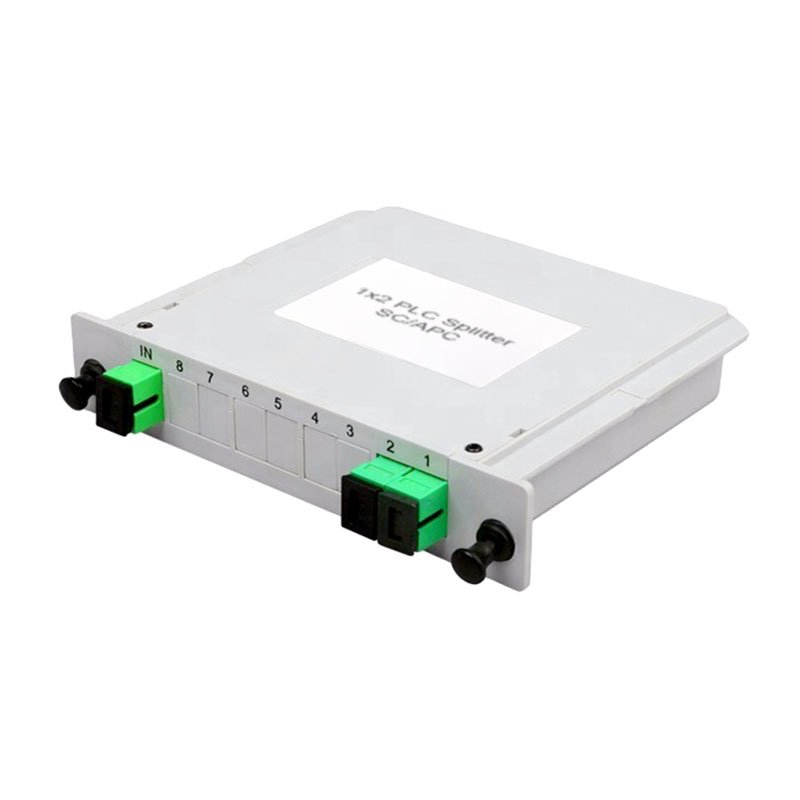

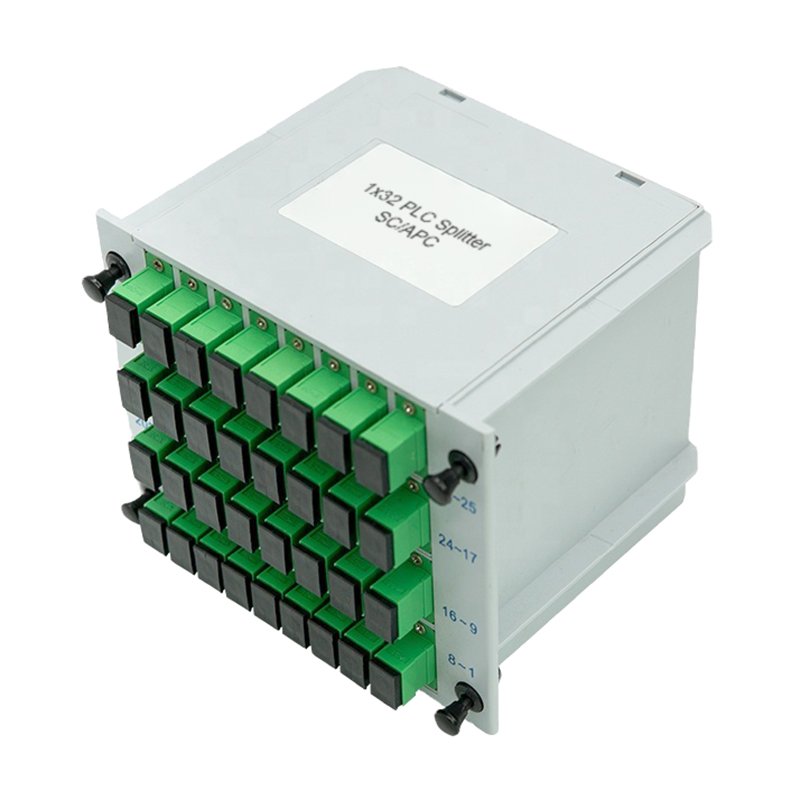

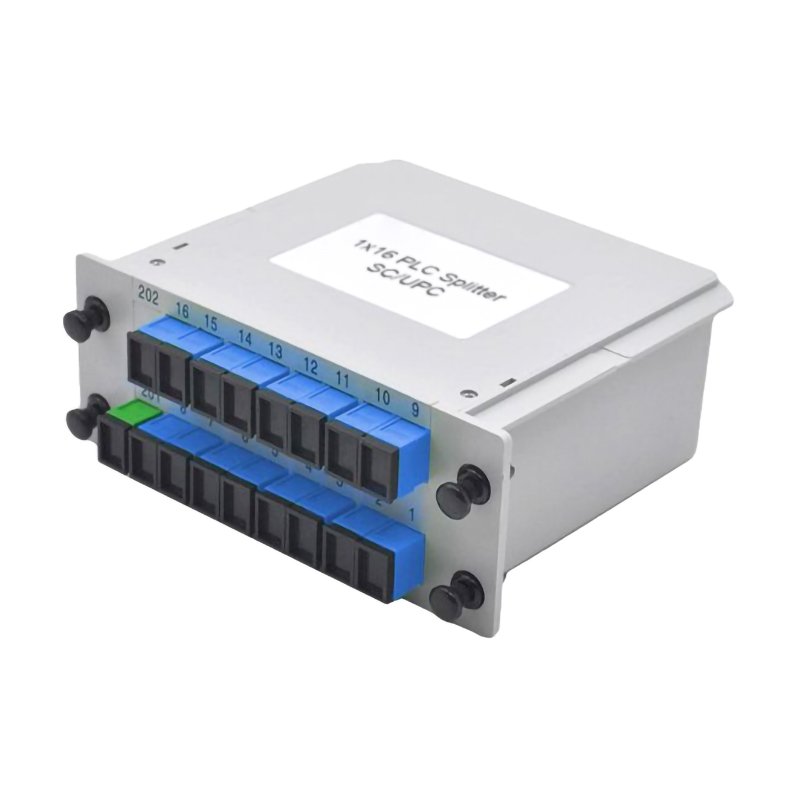

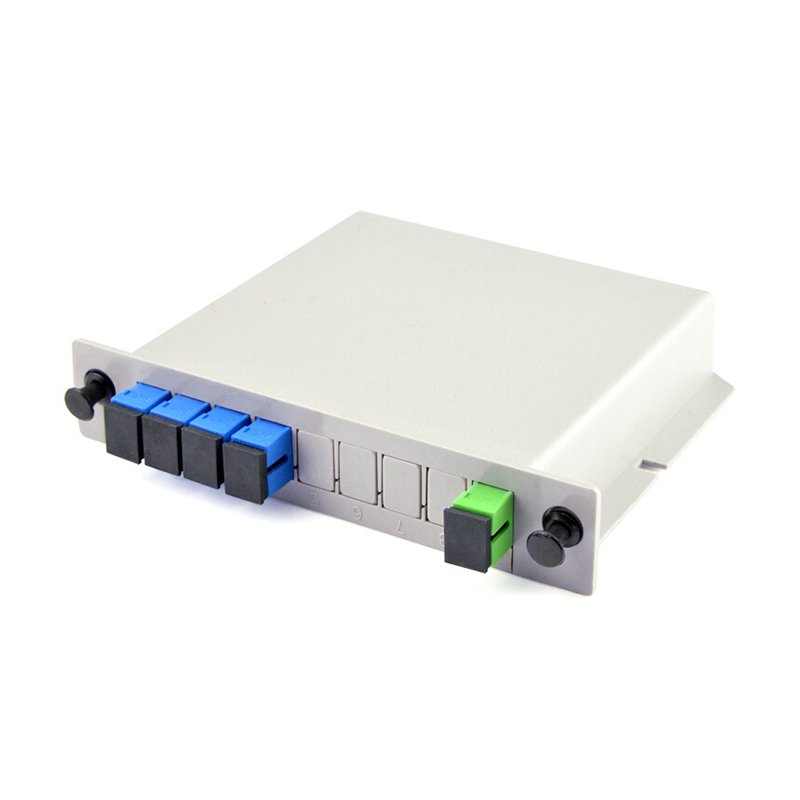

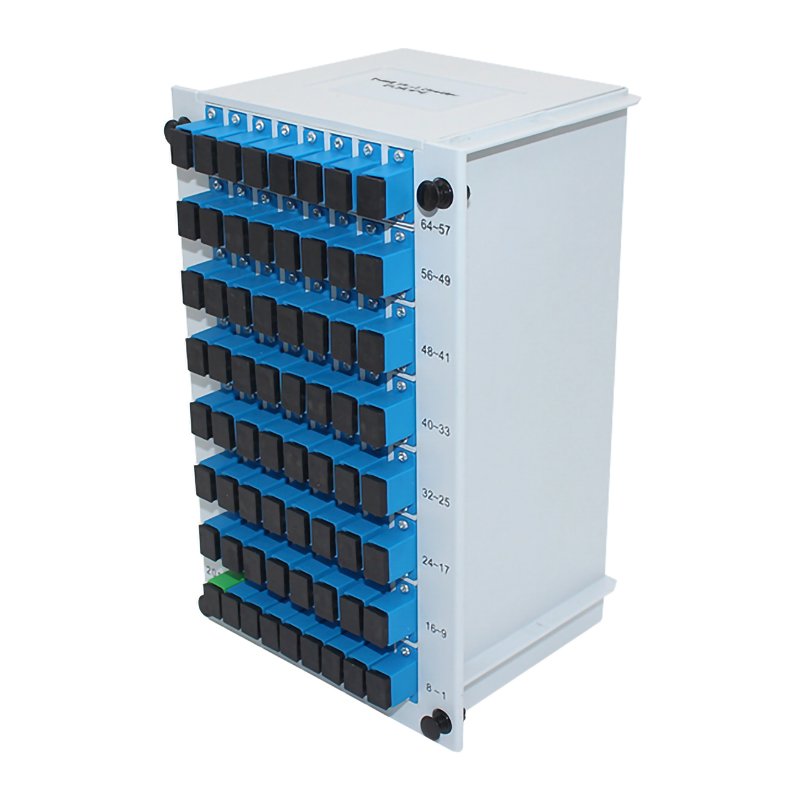

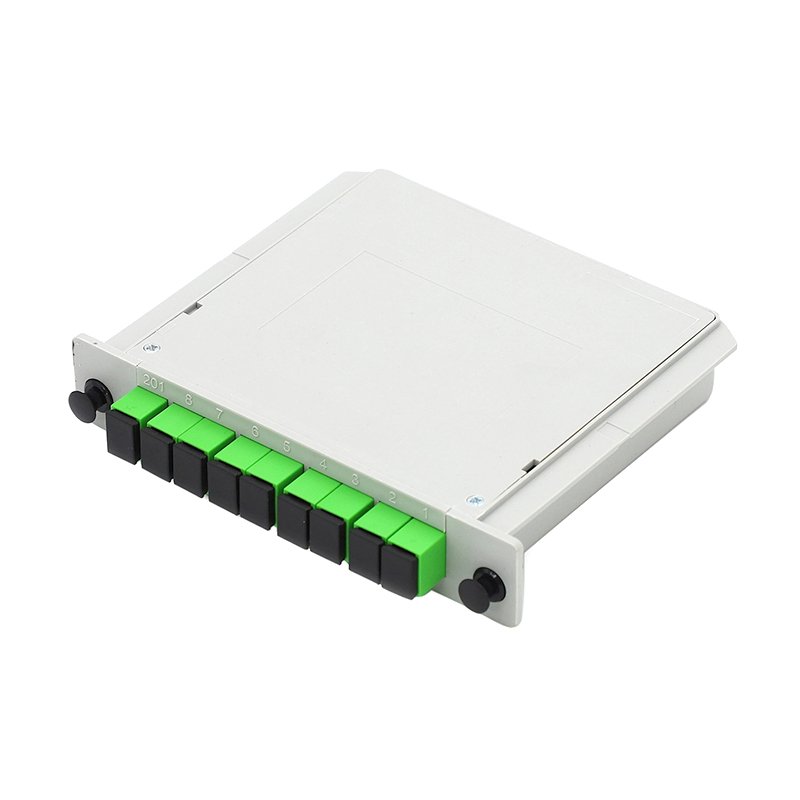

Insert Cassette PLC Splitter
An Insert Cassette PLC Splitter is a type of optical power splitter that is designed for use in a variety of applications. It is available in a variety of sizes and configurations, so you can find the perfect solution for your needs. Insert Cassette PLC Splitters are used to distribute optical signals from a single source to multiple destinations. They are commonly used in Fiber To The Home (FTTH) applications, as well as in data centers and enterprise networks.
Description
High-Quality Insert Cassette PLC Splitters | Low Loss, Reliable Performance
Benefits
There are many benefits to using Insert Cassette PLC Splitters, including:
- Low insertion loss and low PDL: Insert Cassette PLC Splitters are designed to minimize insertion loss and polarization dependent loss (PDL), which ensures that your optical signals are transmitted with the highest possible quality.
- Uniform power splitting: Insert Cassette PLC Splitters are designed to split optical power evenly among all of the output ports, which ensures that all of your devices receive the same amount of signal strength.
- High reliability: Insert Cassette PLC Splitters are made from high-quality materials and are rigorously tested to ensure that they will provide years of reliable service.
- Compact size and various package: Insert Cassette PLC Splitters are available in a variety of sizes and configurations to meet your specific needs. They are also available in a variety of package types, including ABS plastic, metal, and ruggedized.
Applications
Insert Cassette PLC Splitters are commonly used in a variety of applications, including:
- FTTH: Insert Cassette PLC Splitters are commonly used in FTTH applications to distribute optical signals from a central office (CO) to multiple homes and businesses.
- Data centers: Insert Cassette PLC Splitters are commonly used in data centers to distribute optical signals between servers, switches, and other network devices.
- Enterprise networks: Insert Cassette PLC Splitters are commonly used in enterprise networks to distribute optical signals between offices, buildings, and campuses.
Parameters
The following table shows the common parameters for Insert Cassette PLC Splitters:
| Parameter | Value |
| Wavelength (nm) | 1260-1650 |
| Insertion loss (IL) (dB) | ≤1.0 |
| Uniformity (dB) | ≤0.5 |
| Return loss (RL) (dB) | ≥50 |
| Polarization dependent loss (PDL) (dB) | ≤0.2 |
| Directivity (dB) | ≥60 |
| Operating temperature (°C) | -40 to 85 |
| Storage temperature (°C) | -40 to 85 |
| Humidity (%) | ≤95% |
| Atmospheric pressure (kPa) | 62 to 106 |
| Fiber type |
SM G657A or customized
|
| Connector type | SC, FC, LC |
How to Choose an Insert Cassette PLC Splitter
When choosing an Insert Cassette PLC Splitter, you will need to consider the following factors:
- Number of output ports: The number of output ports that you need will depend on your application. For example, if you are using the splitter in an FTTH application, you will need a splitter with at least one output port for each home or business that you will be serving.
- Wavelength: The wavelength of the splitter that you need will depend on the type of laser that you are using. If you are using a 1310 nm laser, you will need a splitter that is designed for that wavelength.
- Insertion loss and PDL: The lower the insertion loss and PDL, the better. However, you will need to balance these factors with your budget.
- Uniformity: The higher the uniformity, the better. However, you will need to balance this factor with your budget.
- Return loss: The higher the return loss, the better. However, you will need to balance this factor with your budget.
- Polarization dependent loss: The lower the PDL, the better. However, you will need to balance this factor with your budget.
- Directivity: The higher the directivity, the better. However, you will need to balance this factor with your budget.
- Operating temperature: The operating temperature range of the splitter that you choose must be compatible with the environment
