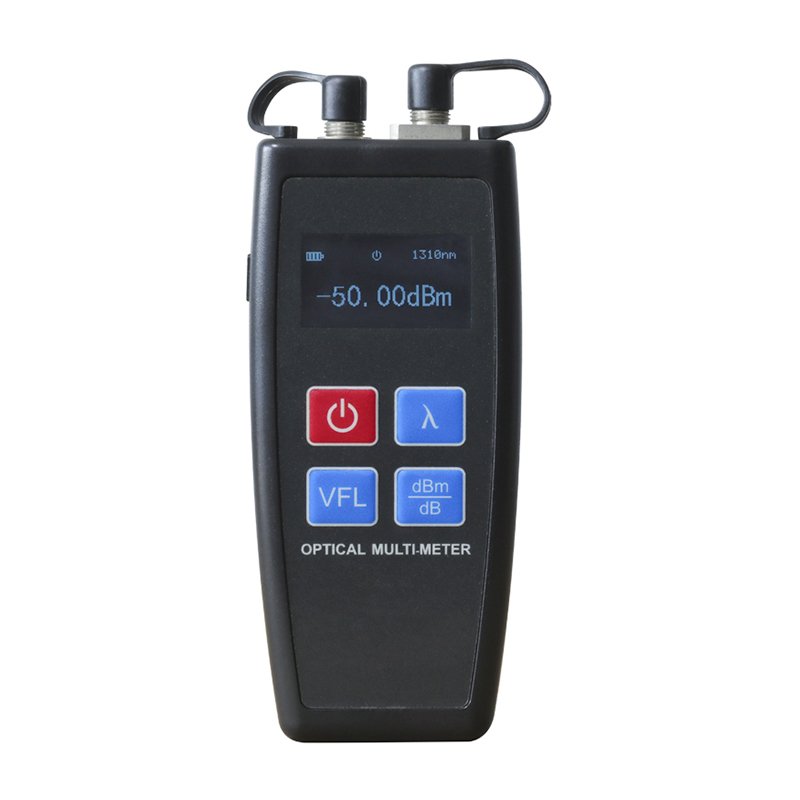

Mini Optical Power Meter with VFL

The Mini Optical Power Meter is a handheld instrument designed for the installation, operation, and maintenance of fiber optic networks. It is a compact, durable, and easy-to-use tool that provides accurate power measurements for a wide range of applications.

Description

Mini Optical Power Meter: A Precise and Portable Tool for Fiber Optic Network Testing

Key Features:

  • High accuracy and low error: The Mini Optical Power Meter features high accuracy and low error, ensuring reliable and precise power measurements.

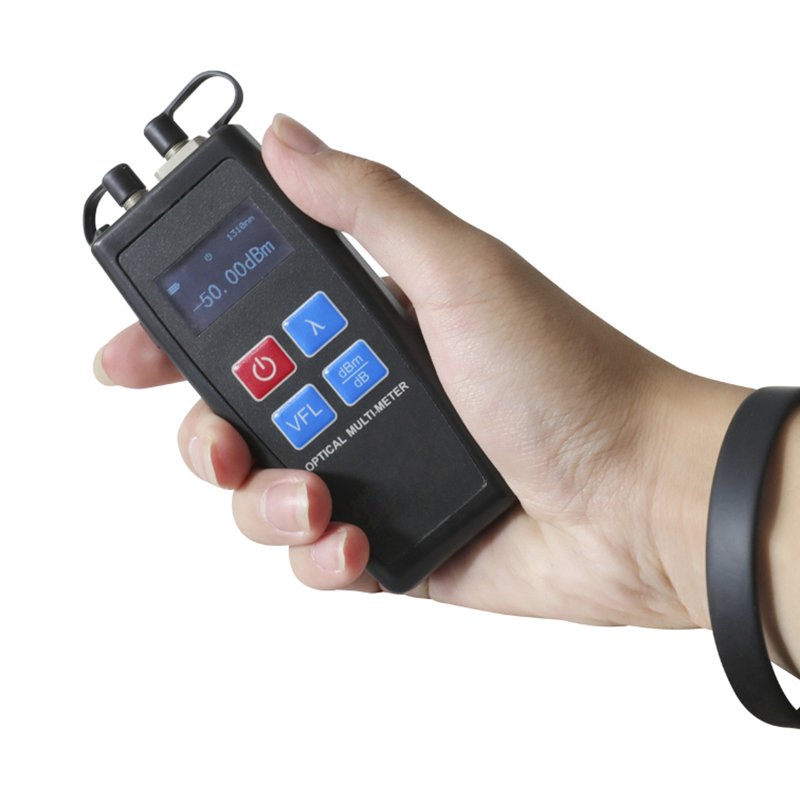

  • Mini and ergonomic design: With its compact and ergonomic design, the Mini Optical Power Meter is easy to carry and operate with one hand, making it ideal for field use.

  • OLED high-definition screen: The high-definition OLED screen provides clear and easy-to-read power measurements, even in low-light conditions.

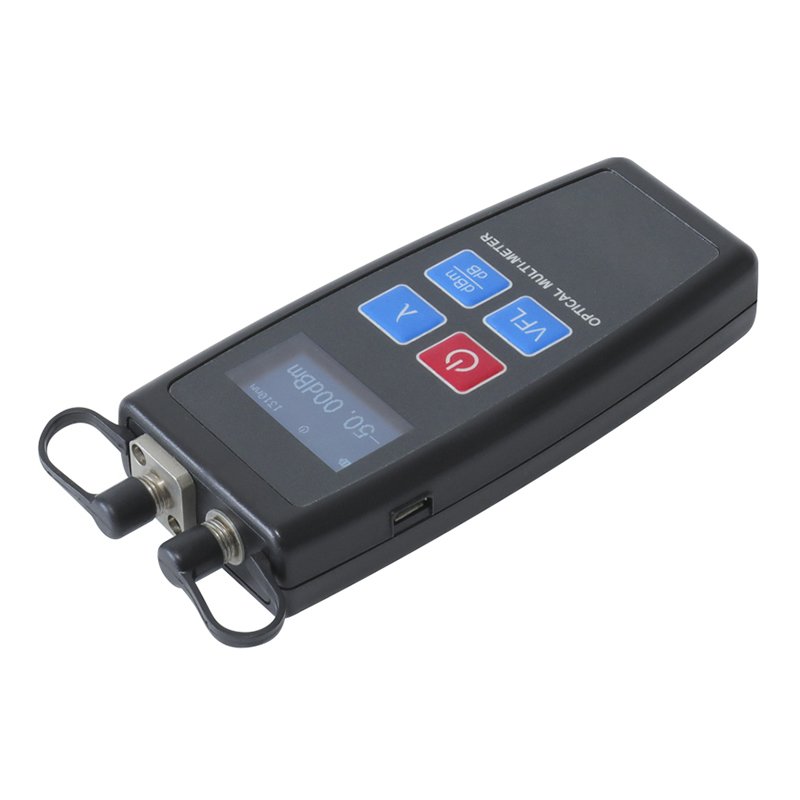

  • Universal interface: It features a universal interface that supports FC/SC/ST connectors, making it compatible with a wide range of fiber optic networks.

  • Wavelength memory function: The wavelength memory function allows the Mini Optical Power Meter to store the last selected wavelength, which saves time and improves efficiency.

  • Micro-USB power supply: It can be powered by a micro-USB cable, providing convenient power options.

  • Automatic shutdown and energy conservation: The Mini Optical Power Meter features automatic shutdown and energy conservation functions to extend battery life.

  • Six calibration wavelengths: It supports six calibration wavelengths (850, 1300, 1310, 1490, 1550, and 1625 nm), making it suitable for a wide range of applications.

  • Support hang by rope and anti-lost: The Mini Optical Power Meter comes with a lanyard hole and anti-lost strap, which helps to prevent it from being lost or dropped.

  • dBm, dB and mW switching: It can display power measurements in dBm, dB, and mW, providing flexibility for different users.

Applications:

  • Telecom maintenance: The Mini Optical Power Meter is widely used for maintenance in telecom networks.

  • Engineering maintenance of optical fiber networks: The Mini Optical Power Meter is also used for engineering maintenance of optical fiber networks.

  • Engineering maintenance of digital data networks: It is used for engineering maintenance of digital data networks.

  • Teaching and research of optical communication: The Mini Optical Power Meter is used for teaching and research of optical communication.

  • Other optical fiber works: It is used for other optical fiber works.

Technical Specifications:

Feature Specification
Wavelength range (nm) 850-1700
Detector type InGaAs
Power measurement range (dBm) -70~+6
Power uncertainty (dB) ±0.3
Calibrated wavelength (nm)
850, 1300, 1310, 1490, 1550, 1625
Display resolution (dB) 0.05
Red light output power (mW) 1 or 10
Transmission distance (km) 5 or 10
Operating frequency (Hz) CW/2Hz
Operating temperature (°C) -10~+60
Storage temperature (°C) -25~+70
Power saving time (min) 10/no power off
Battery life (h)
≥130 (OPM model)
Power supply

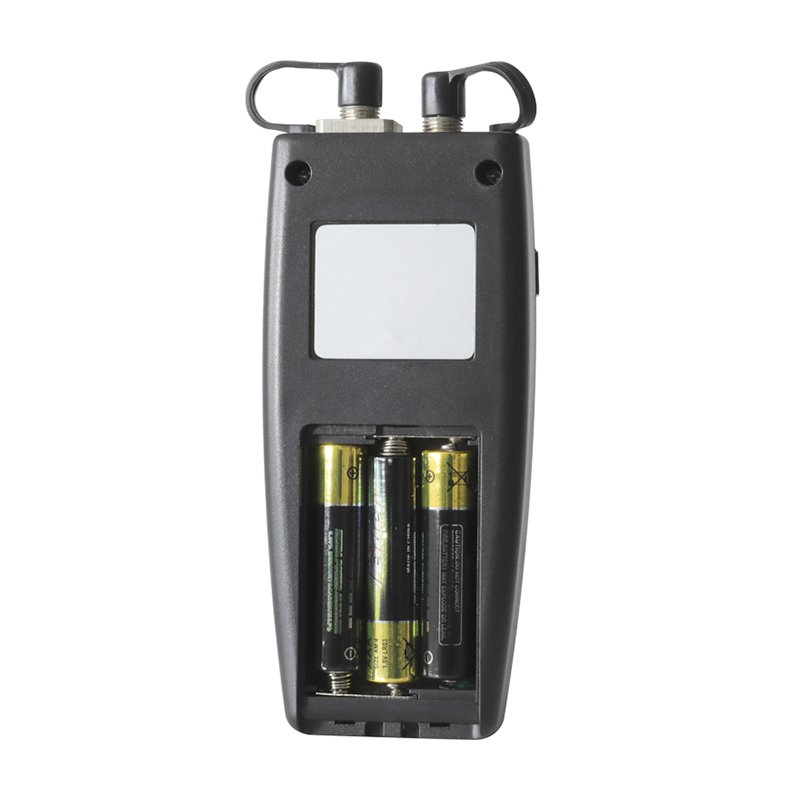

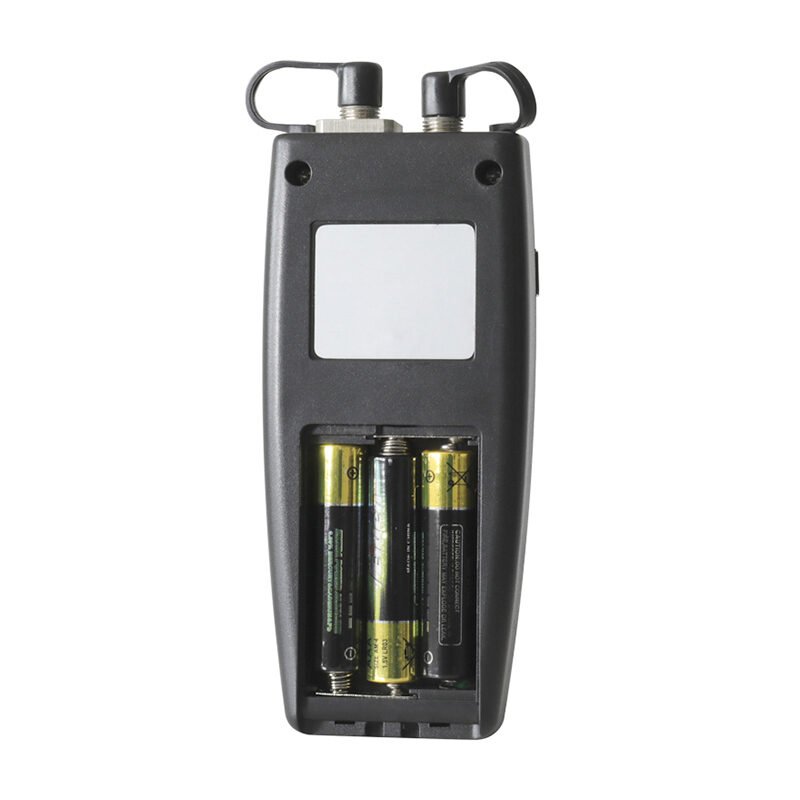

3 batteries of the 7 AAA 1.5V/micro USB power supply
Weight (kg) 0.07
Dimensions (cm) 12.8*5*2

Order your Mini Optical Power Meter today and experience the precision and portability of this essential fiber optic test tool.
