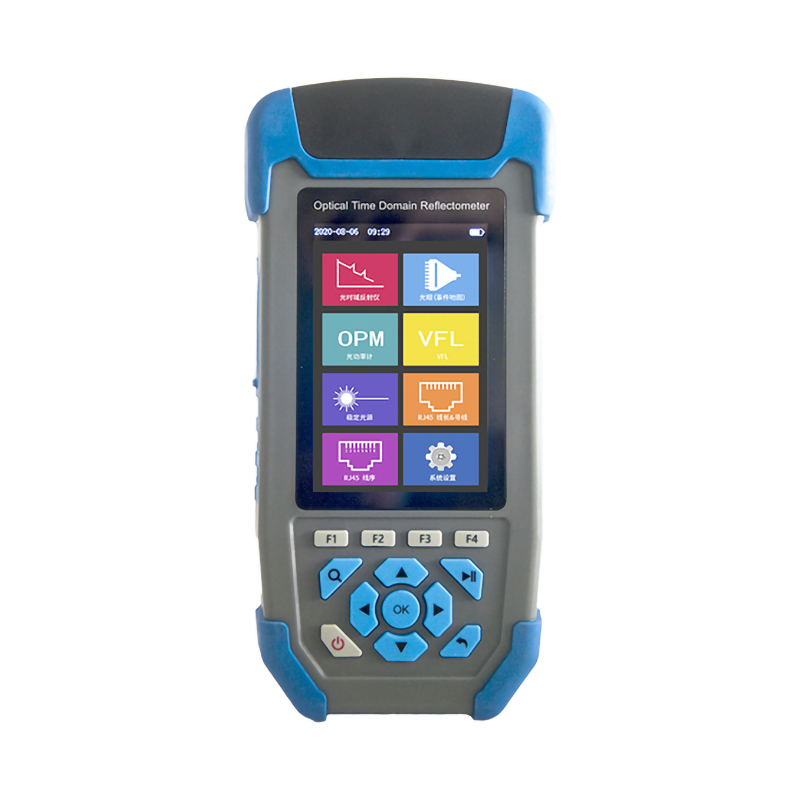

Mini OTDR
The Mini OTDR is a compact and portable fiber optic tester that is designed for the installation and maintenance of fiber optic networks. It is easy to use and affordable, making it a great choice for both field and lab use.
Description
Mini OTDR: Portable Fiber Optic Tester | Easy to Use, Powerful Results
Key Features
- All-in-one design: It combines eight functions into one device, including OTDR, event maps, stable light source, optical power meter, visual fault locator, cable sequence proofreading, cable length measurement, and lighting functions.
- Quick fault detection: The Mini OTDR can quickly and accurately detect faults in fiber optic cables.

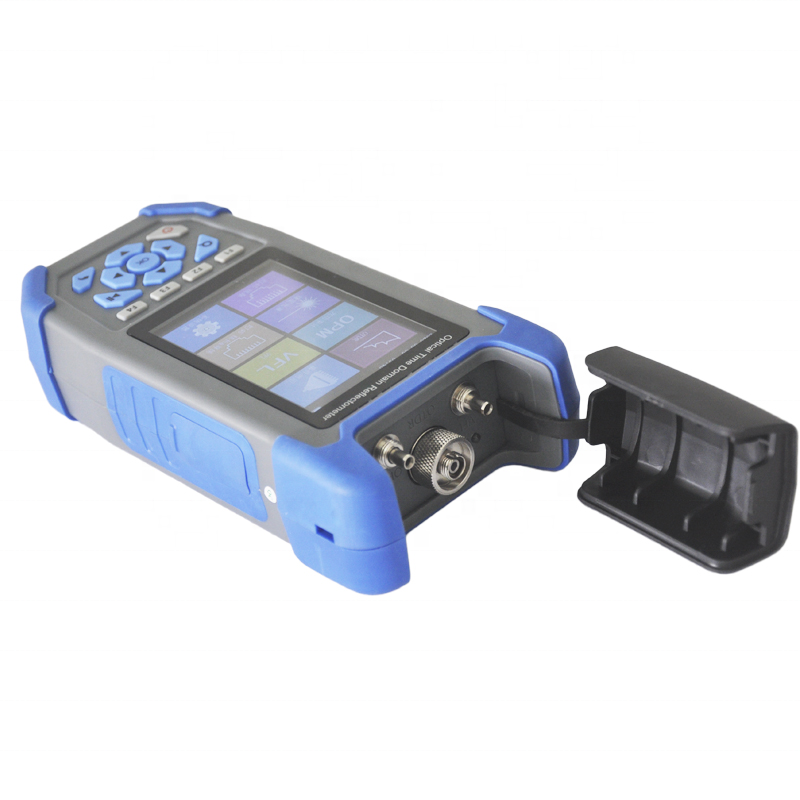

- Universal connector: It has a universal connector that is compatible with FC/SC/ST/LC connectors.
- Large storage capacity: The Mini OTDR can store up to 600 records.
- Data transfer: It can transfer data via USB port.
- Long battery life: It has a built-in 4000mAh lithium battery that can be recharged via USB charging cable or power bank.
- Ergonomic design: It is ergonomically designed and compact in size, making it easy to carry and use.
Mini OTDR Parameters
| Wavelength | 1310nm/1550nm±20nm | |
| Fiber Type | G.652 SM Fiber | |
| Dynamic Range | 24dB/22dB | |
| Event Blind Zone | 3m | |
| ATT Blind Zone | 8m | |
| Test Range | 500m~60km | |
| Pulse Width | 3ns~10us | |
| Ranging Accuracy | ± (1m+Sampling Interval +0.005％×Test Distance) | |
| Loss Accuracy | ±0.2dB/dB | |
| Sampling Points | 16k~128k | |
| Sampling Resolution | 0.05m~8m | |
| Reflection Accuracy | ±3dB | |
| Data Storage | Internal：≥600；External：TF Card | |
| Laser Safety Level | Class Ⅱ level | |
| File Format | SOR Standard File Format | |
| Connector | FC/UPC (Interchangeable SC, ST) | |
| OPM | ||
| Wave Range | 800nm~1700nm | |
| Interface Type | Universal Joint FC/SC/ST | |
| Test Range | -50dBm～+26dBm | |
| Uncertainty | ±5% | |
| Frequency Identification | CW/270/330/1k/2kHz | |
| Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
| LS | ||
| LD Type | FP-LD | |
| Output Wavelength | 1550nm±20nm |
1310nm/1550nm±20nm
|
| Output Power | ≥-5dBm | |
| Modulation Frequency | 270/330/1k/2kHz | |
| Stability | CW，±0.5dB/15min (Test after15mins of preheating) | |
| Connector | FC/UPC (Interchangeable SC, ST) | |
| VFL | ||
| Work Wavelength | 650nm±20nm | |
| Output Power | ≥10mW | |
| Mode | CW/1Hz/2Hz | |
| Connector | FC/SC/ST | |

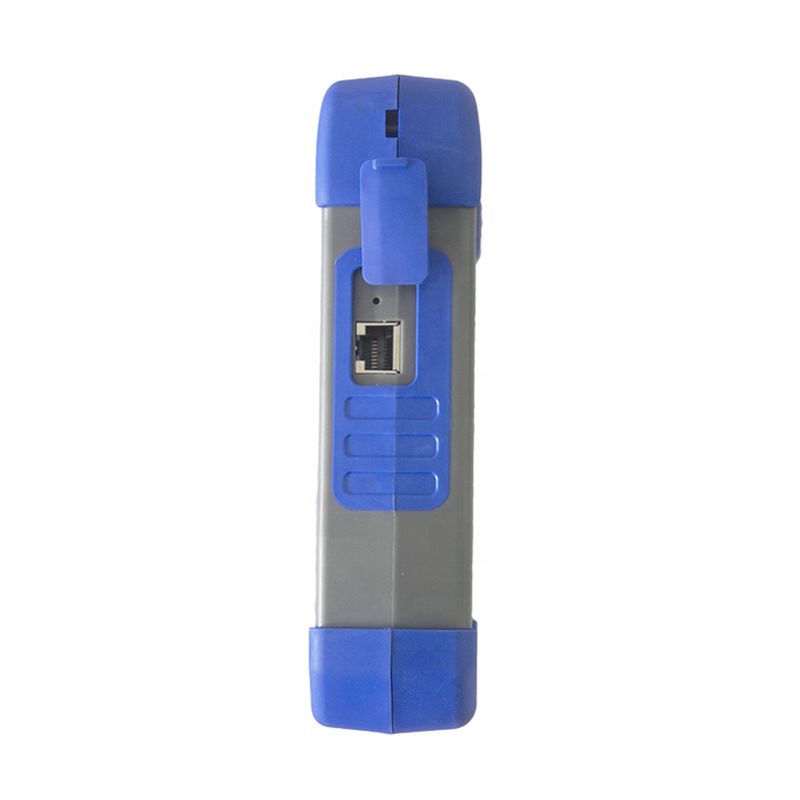

| RJ45 Cable Length Measurement | ||
| Test Range | 300m | |
| Other Parameters | ||
| Display | 3.5-inch Color LCD | |
| Data Interface | Micro USB | |
| External Storage | TF Card | |
| Power Supply | Polymer Li-battery：3.7V，4000mAh Power Adapter：5VDC，2A |
|
| Battery Life | Standby＞20h；Measuring Time＞12h | |
| Operating Temperature | -10℃～+50℃ | |
| Storage Temperature | -40℃～+70℃ | |
| Relative Humidity | 0～95％Non Condensing | |
| Weight | ≤350g | |
| Dimension | 173mm×82mm×37mm | |
| Functions：Orange，OTDR/OPM/LS/VFL/RJ45 Sequence/Flashlight | ||
Applications
The Mini OTDR can be used for a wide variety of applications, including:
- Installation and maintenance of fiber optic networks
- Fault detection and troubleshooting
- Fiber optic link testing
- Research and development
Benefits
The Mini OTDR offers a number of benefits, including:
- Portability: It is small and lightweight, making it easy to carry and use in the field.
- Ease of use: The Mini OTDR is easy to use, even for those with no prior experience with OTDRs.
- Affordability: It is affordable, making it a great value for the money.
- Accuracy: The Mini OTDR is accurate and reliable, providing you with the data you need to make informed decisions.
- Versatility: It can be used for a wide variety of applications.
Why Choose the Mini OTDR?
It is the perfect choice for anyone who needs a portable, affordable, and easy-to-use fiber optic tester. It is ideal for a wide variety of applications, including installation and maintenance of fiber optic networks, fault detection and troubleshooting, fiber optic link testing, and research and development.
Order Your Mini OTDR Today!
Contact us today to order your Mini OTDR. We offer a variety of shipping options to get your Mini OTDR to you quickly and easily.
