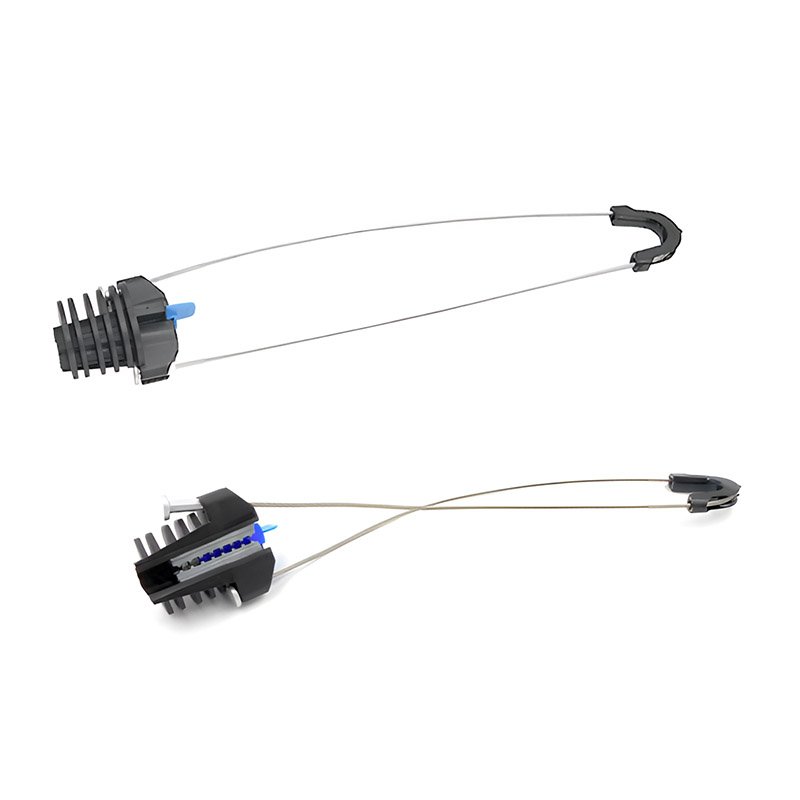

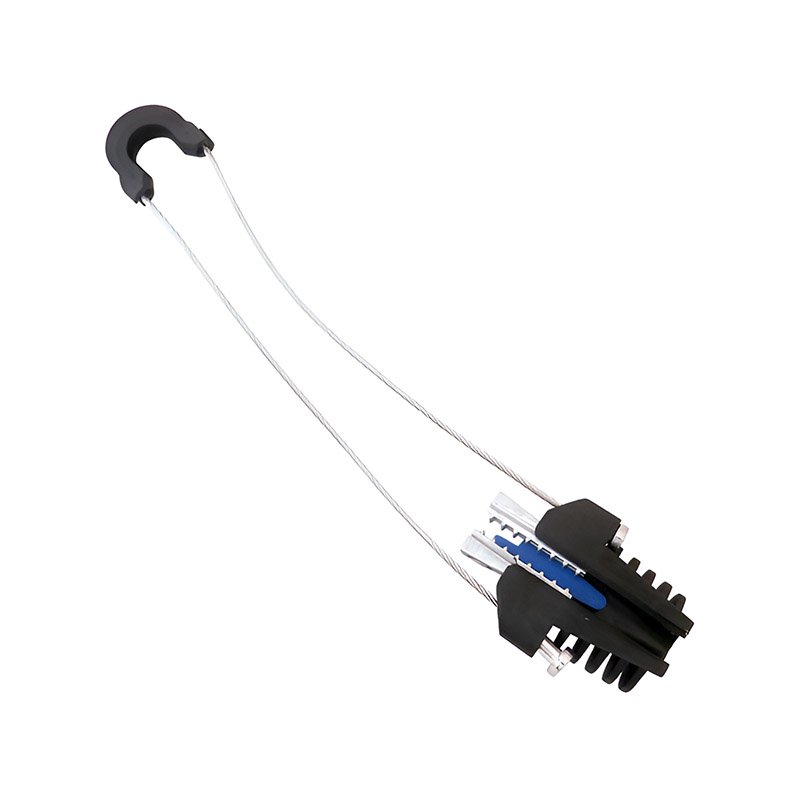

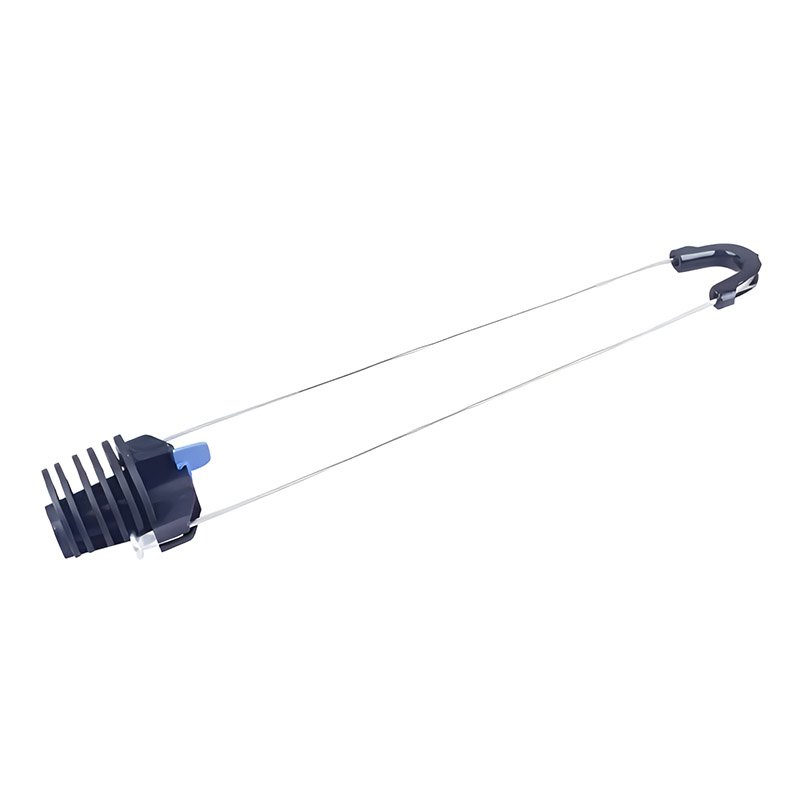

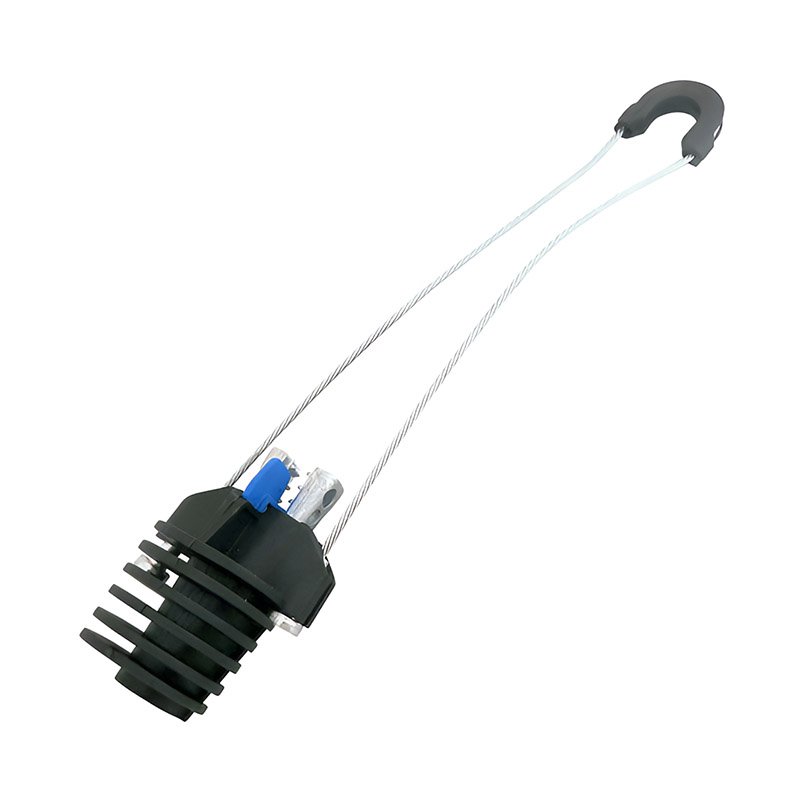

PA-05 Anchoring Clamp for Figure 8 Fiber Optic Cable
The PA-05 Anchoring Clamp is a versatile and durable anchoring device designed to securely anchor fiber optic cables with steel messengers on outdoor aerial telecommunication lines. It is widely used in FTTH/FTTX applications and is known for its ease of use, high performance, and long-lasting reliability.
Description
PA-05 Anchoring Clamp: A Reliable Solution for Anchoring Fiber Optic Cables
Key Features:
-
Simple and Tool-Free Installation: The PA-05 Anchoring Clamp can be installed without the need for any special tools, significantly reducing installation time and costs.
-
Secure Cable Grip: The anchoring clamp features a unique wedge design that automatically grips the cable within the conical body, ensuring a firm and secure hold.
-
Weather Resistance: It is made from UV-resistant, glass fiber reinforced synthetic material, making it resistant to harsh weather conditions and ensuring long-lasting performance.
Applications:
-
Aerial Fiber Optic Cable Deployment: The PA-05 Anchoring Clamp is ideal for anchoring fiber optic cables in aerial telecommunication lines, including FTTH/FTTX networks.
-

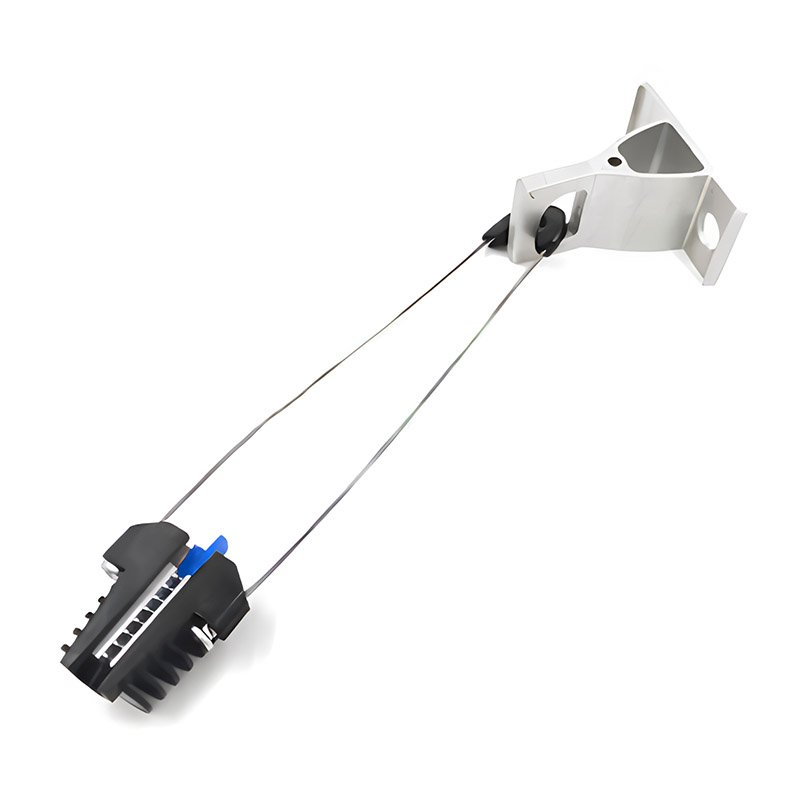

Pole and Wall Mounting: The anchoring clamp can be mounted on poles, walls, and other structures to provide secure anchoring points for fiber optic cables.
-
Guy Wire Support: It can also be used to support guy wires and other tensioning elements in aerial installations.
Common Parameters of the PA-05 Anchoring Clamp:
Parameter | Value |
Cable Type |
Fig-8 Steel Messenger
|
Cable Size | 3-5 mm |
Span | 30-70 m |

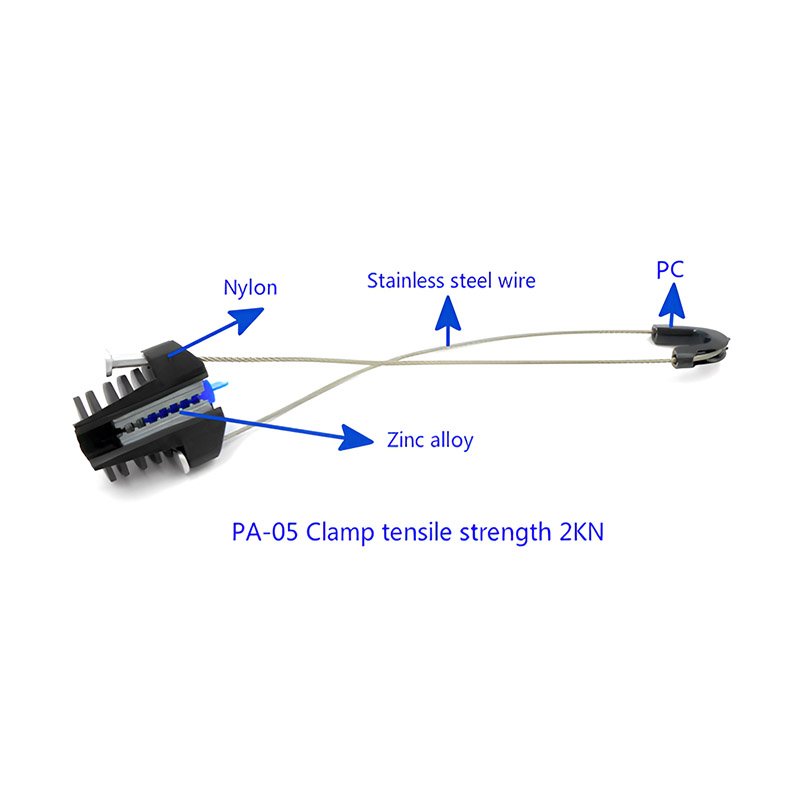

MBL | 2 KN |
Material |
UV-resistant, glass fiber reinforced synthetic material
|
Operating Temperature | -40°C to +70°C |
Why Choose the PA-05 Anchoring Clamp?
The PA-05 Anchoring Clamp offers a combination of benefits that make it a superior choice for anchoring fiber optic cables:
-
Ease of Use: The tool-free installation and simple design make the PA-05 Anchoring Clamp easy to use, even for untrained personnel.
-
Reliability: The high-quality materials and robust construction ensure that it will provide long-lasting performance and secure cable anchoring.
-
Versatility: It is suitable for a wide range of applications, including aerial fiber optic cable deployment, pole and wall mounting, and guy wire support.
-
Cost-Effectiveness: Its efficient design and tool-free installation help to reduce installation costs and labor time.
The PA-05 Anchoring Clamp is a reliable and cost-effective solution for anchoring fiber optic cables in aerial telecommunication lines. Its ease of use, high performance, and versatility make it an ideal choice for a wide range of applications.
