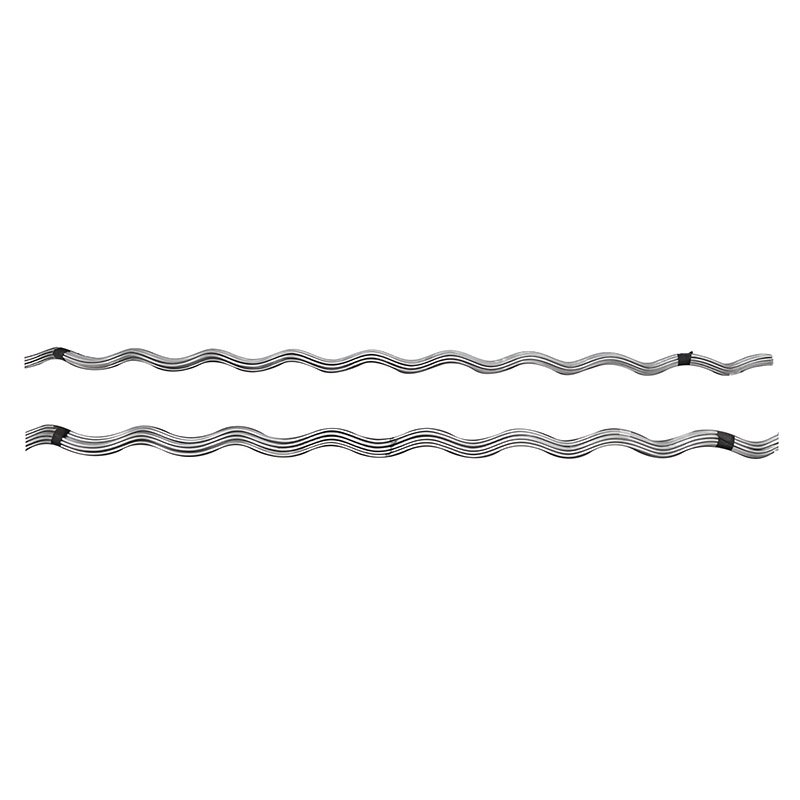

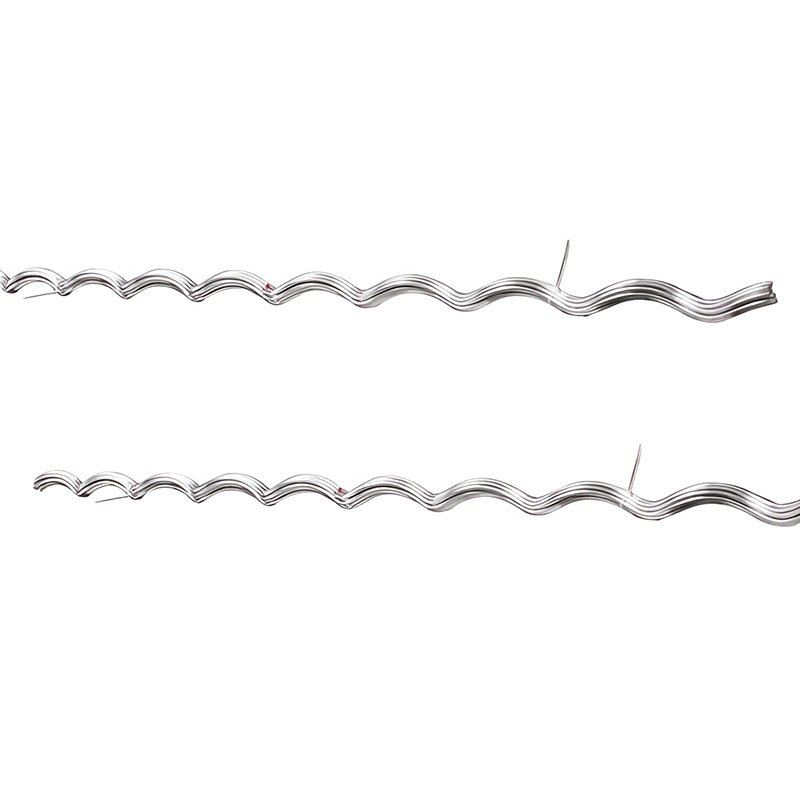

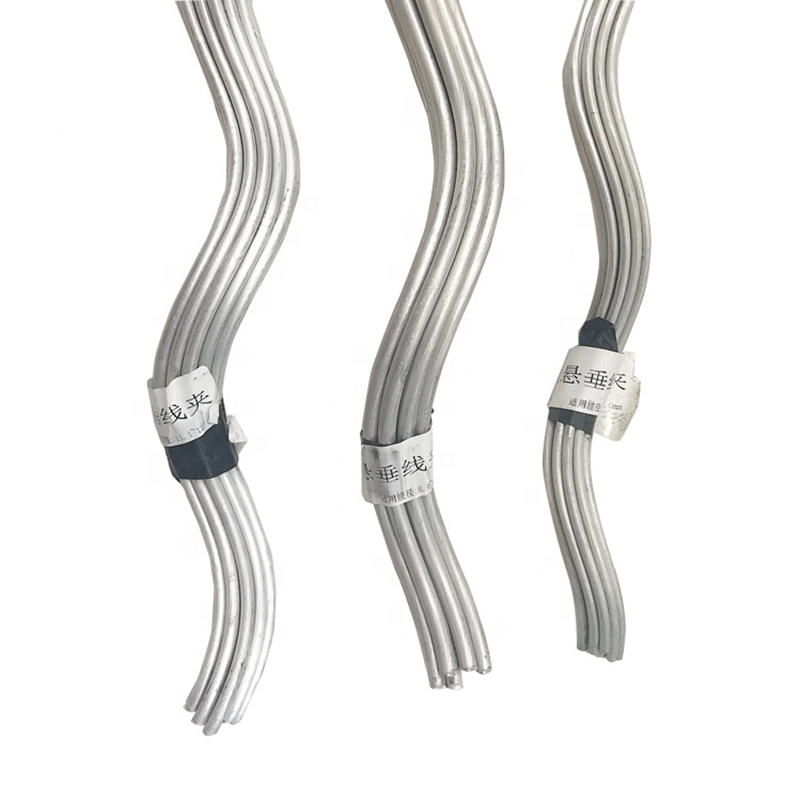

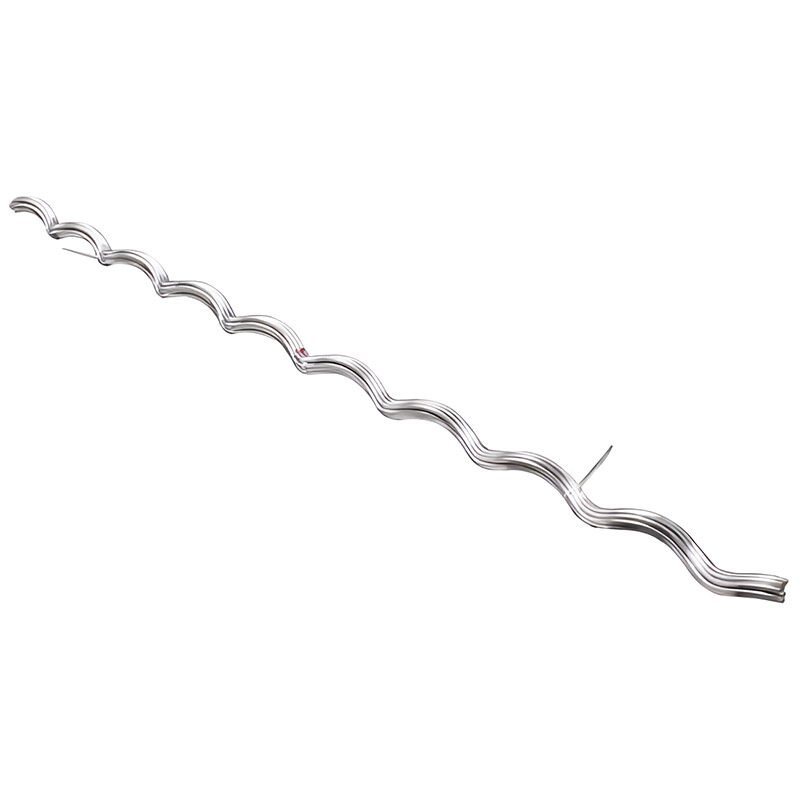

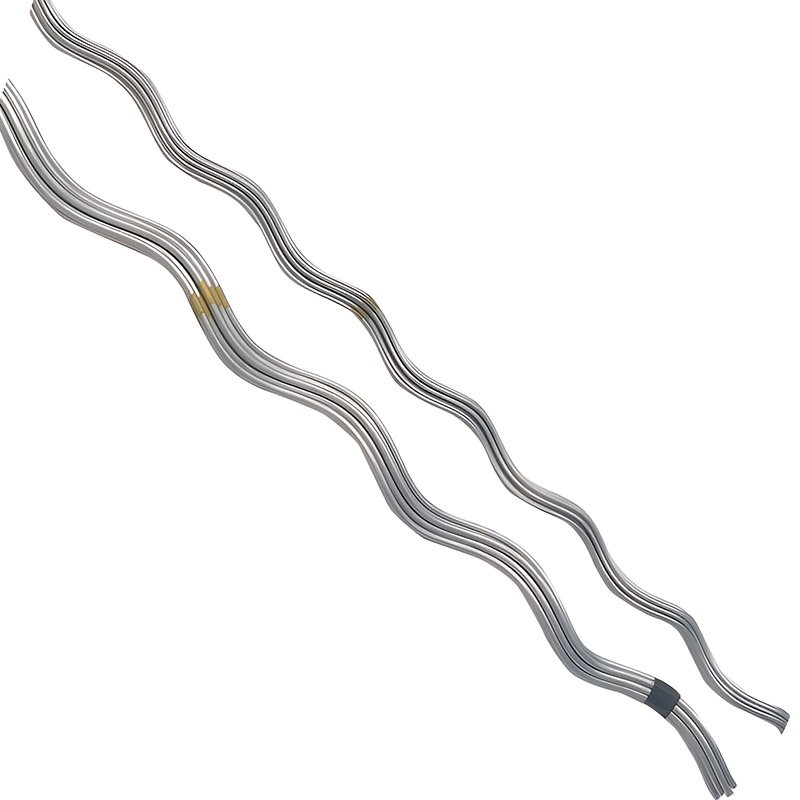

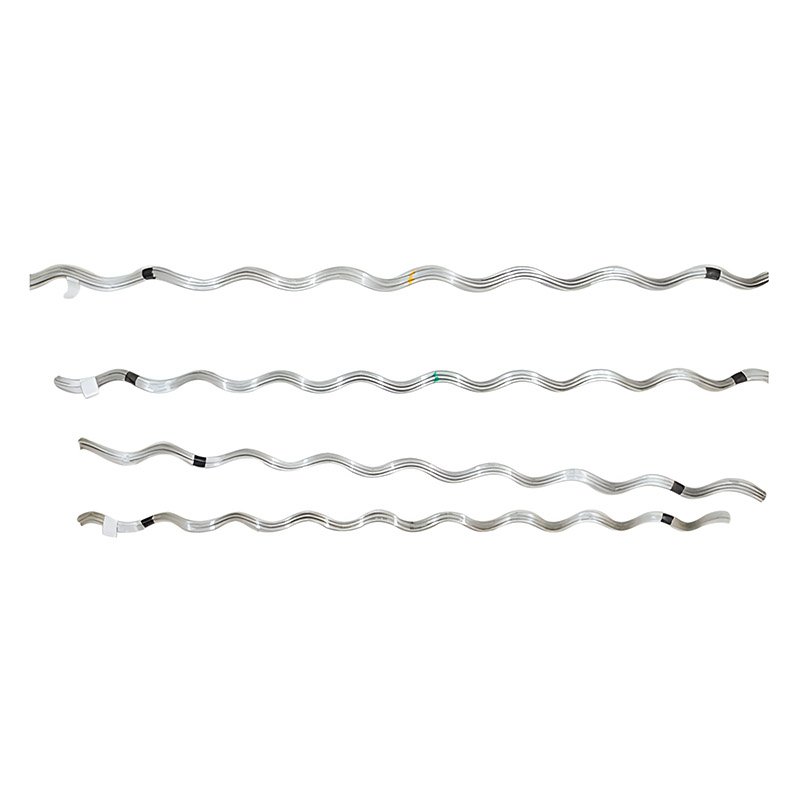

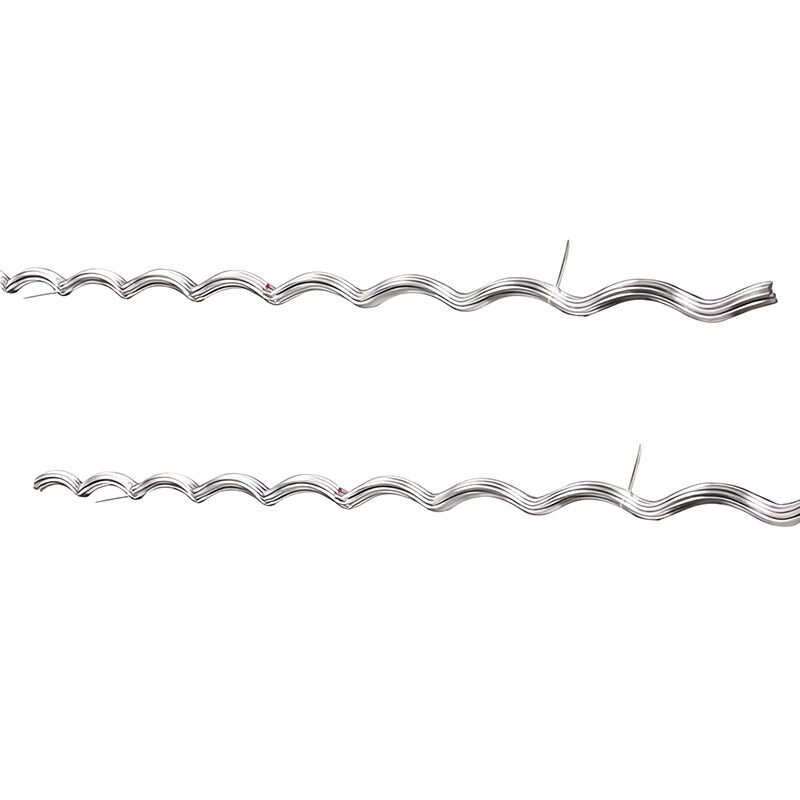

Preformed Armor Rods
Preformed Armor Rods are a versatile and durable solution for protecting overhead cables from damage caused by bending, compression, abrasion, and flashover. They are also used to repair damaged aluminum-based conductors and restore their mechanical strength and conductivity.
Description
Preformed Armor Rods: Reliable Cable Protection Solutions
Applications
Preformed Armor Rods are commonly used in the following applications:
- Overhead power transmission lines
- Telecommunication lines
- Guy wires
- Aerial lifts
- Military applications
Benefits
Preformed Armor Rods offer a number of benefits, including:
- Protection from damage: Preformed Armor Rods can protect cables from a variety of damaging factors, including bending, compression, abrasion, and flashover.
- Easy installation: They are easy to install and can be applied to cables without the need for special tools or equipment.
- Long lifespan: Preformed Armor Rods are made of durable materials that can withstand harsh weather conditions and provide long-lasting protection.
- Cost-effective: They are a cost-effective way to protect cables from damage.
Common Parameters
The following table shows some of the common parameters for Preformed Armor Rods:
| Diameter Range (mm) | Average Length (mm) | Average Weight (kg) | Colour Code |
| 13.3 – 14.0 | 1470 | 0.7 | Black |
| 14.1 – 14.8 | 1520 | 0.8 | Red |
| 14.9 – 15.3 | 1580 | 0.9 | Black |
| 15.4 – 16.0 | 1630 | 1 | Purple |
| 16.1 – 16.6 | 1660 | 1 | Red |
| 16.7 – 17.2 | 1680 | 1.1 | Brown |
| 17.3 – 17.8 | 1730 | 1.3 | Blue |
| 17.9 – 18.8 | 1830 | 1.4 | Green |
| 18.9 – 19.8 | 1830 | 1.5 | Orange |
| 20.7 – 21.4 | 1930 | 2 | Purple |
| 21.5 – 23.0 | 1980 | 2.2 | Red |
| 23.1 – 23.6 | 2030 | 2.5 | Green |
| 23.7 – 24.7 | 2230 | 2.7 | White |
| 24.8 – 25.8 | 2340 | 2.5 | Yellow |
| 25.9 – 26.2 | 2380 | 4.2 | Brown |
| 26.3 – 27.0 | 2430 | 4.2 | Blue |
| 27.1 – 27.8 | 2430 | 4.2 | Green |
| 27.9 – 28.9 | 2540 | 4.7 | Orange |
| 29.0 – 29.4 | 2540 | 4.8 | Purple |
| 29.5 – 30.6 | 2540 | 5.2 | Red |
| 30.7 – 32.2 | 2540 | 5.8 | Black |
| 30.3 – 33.7 | 2540 | 5.9 | White |
| 33.7 – 35.3 | 2540 | 6.2 | Yellow |
How to Order
To order Preformed Armor Rods, please contact our sales team. We will be happy to assist you in selecting the right product for your application.
