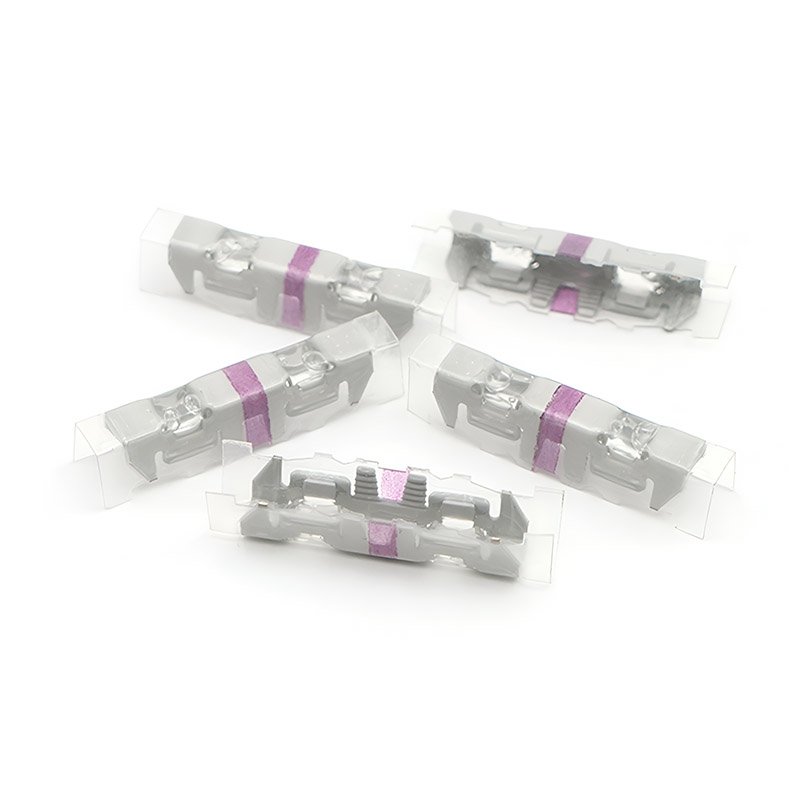

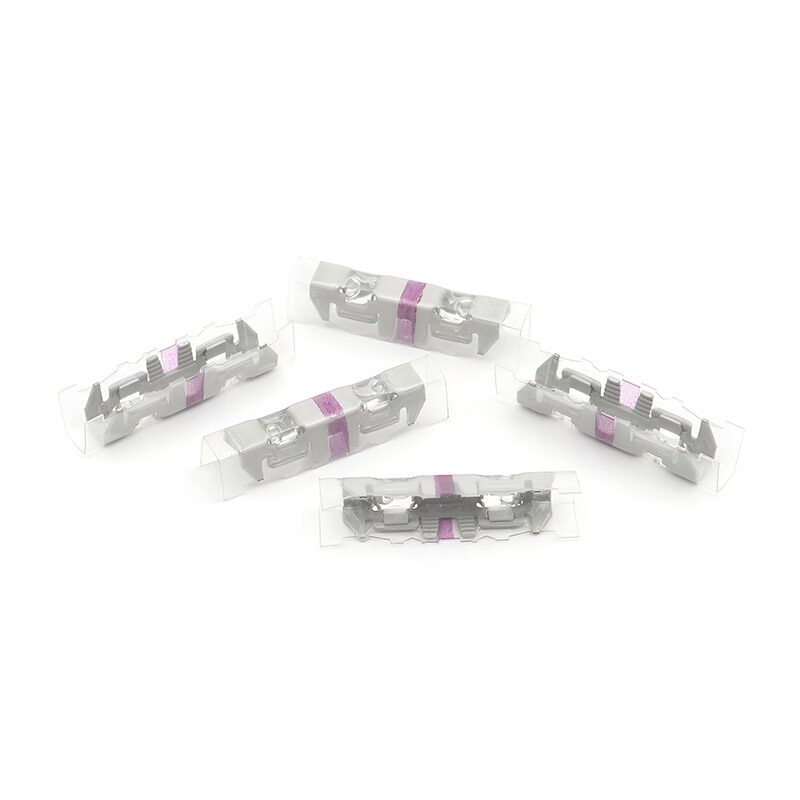

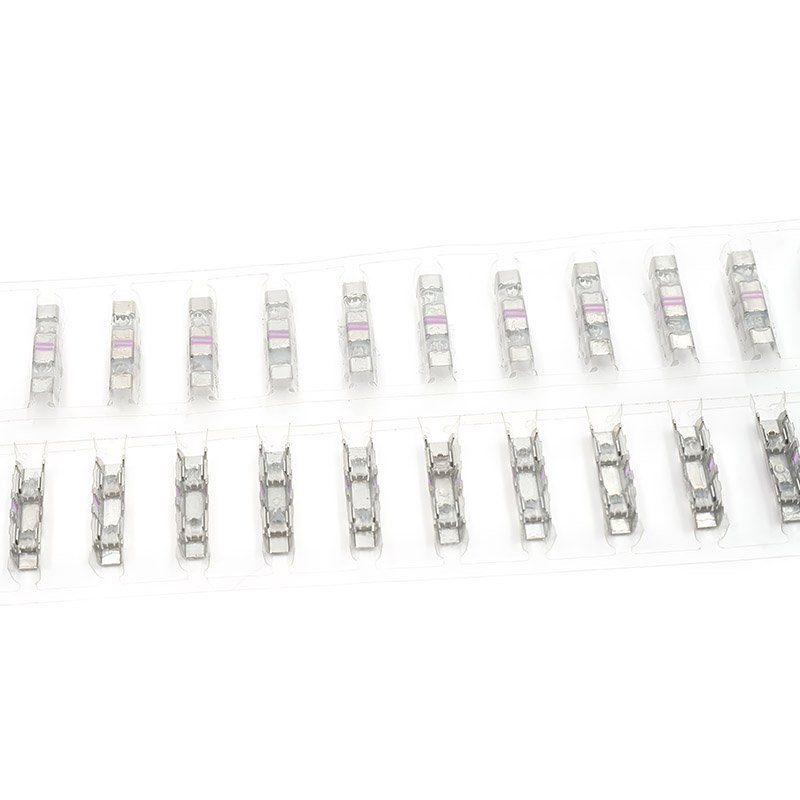

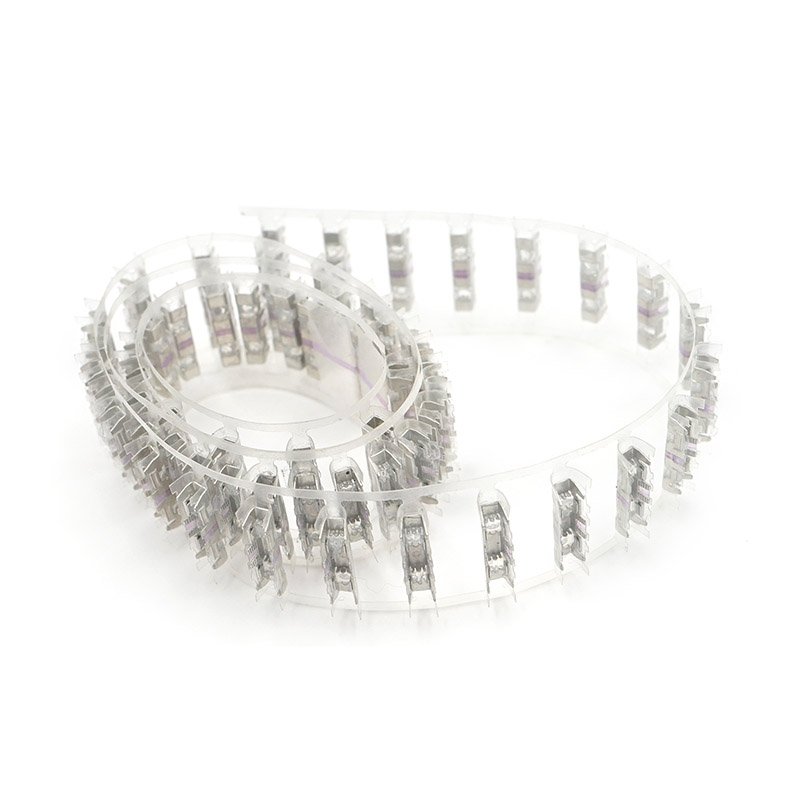

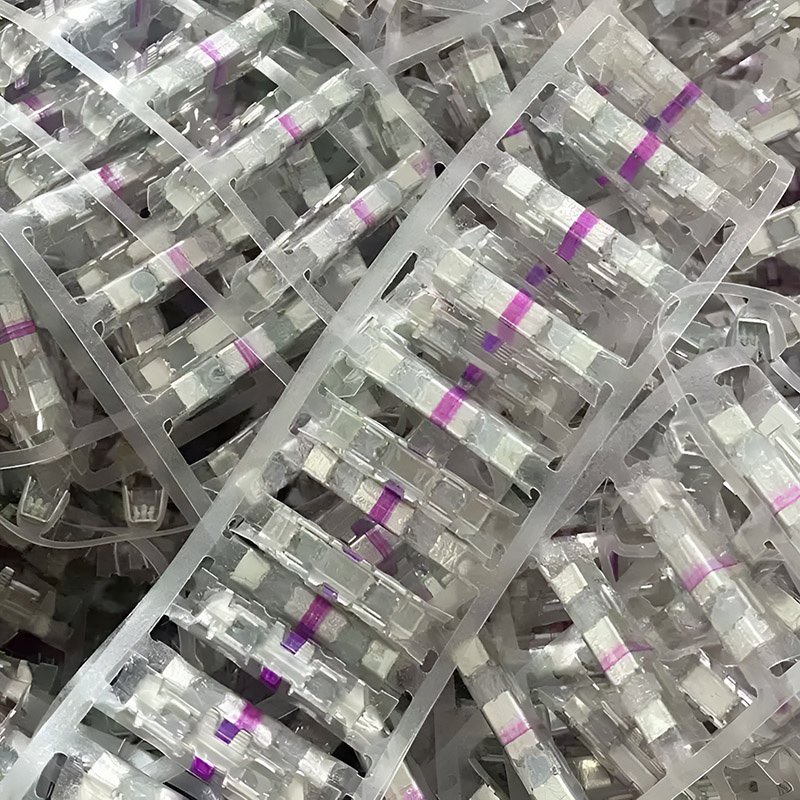

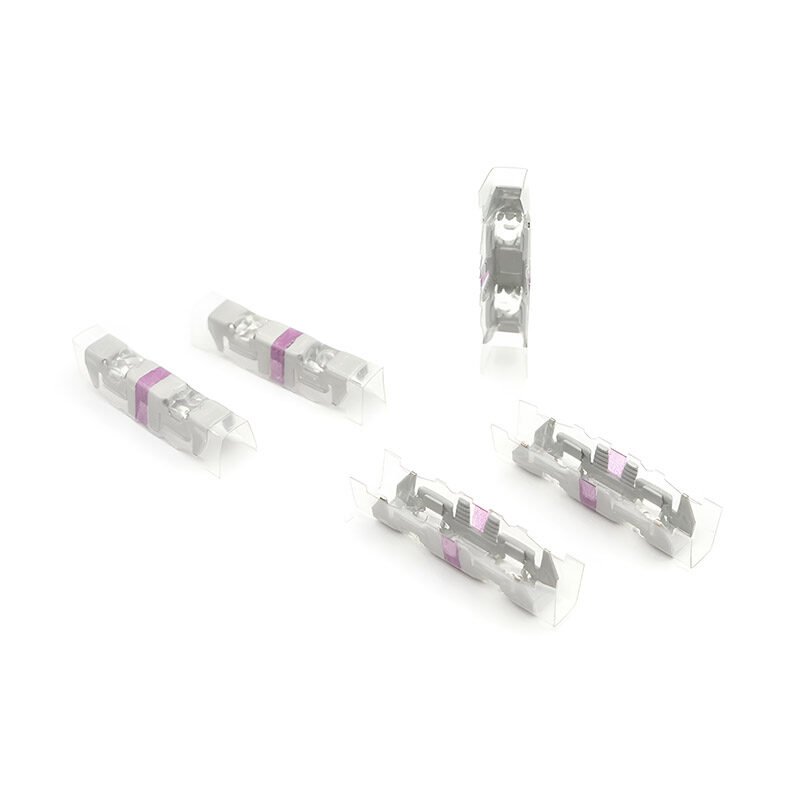

Purple Picabond Connector
Purple Picabond Connector is a versatile and affordable way to connect multiple electrical cables. They are designed for splicing multi-conductor telephone cable and can also be used with solid core wire, 28 to 19 AWG (0.32 to 0.9 mm), with pulp, paper, or plastic insulation. Purple Picabond Connector is made from tin-plated phosphor bronze and tin-plated brass with bonded polyester insulation for superior splicing and connectivity. They are color-coded purple for wire size and weather resistance.
Description
Purple Picabond Connector: A Versatile and Affordable Solution for Connecting Electrical Cables
Features and Benefits
- Versatile: Can be used for straight, butt, tap, and bridge splices
- Affordable: Cost-effective solution for connecting multiple cables
- Durable: Made from tin-plated phosphor bronze and tin-plated brass with bonded polyester insulation for superior corrosion resistance
- Weather-resistant: Color-coded purple for wire size and weather resistance
- Lightweight and compact: Reduce the space required over other splicing techniques by up to 33 percent
Common Specifications
Specification | Value |
Wire Size |
22 to 26 AWG (0.64 to 0.40 mm)
|
Insulation Type |
Pulp, paper, or plastic
|
Body Material |
Tin-plated phosphor bronze and tin-plated brass
|
Insulation Material |
Bonded polyester
|
Color | Purple |
Temperature Range | -40°C to +85°C |
Humidity | Up to 95% |
How to Use Purple Picabond Connector
- Strip the insulation from the ends of the wires to be spliced.
- Insert the wires into the connector until they are fully seated.
- Crimp the connector with a Picabond crimping tool.
- Inspect the splice to ensure that it is secure.
Purple Picabond Connector is a versatile and affordable solution for connecting multiple electrical cables. They are easy to use and provide a reliable connection that is resistant to corrosion and weathering.
