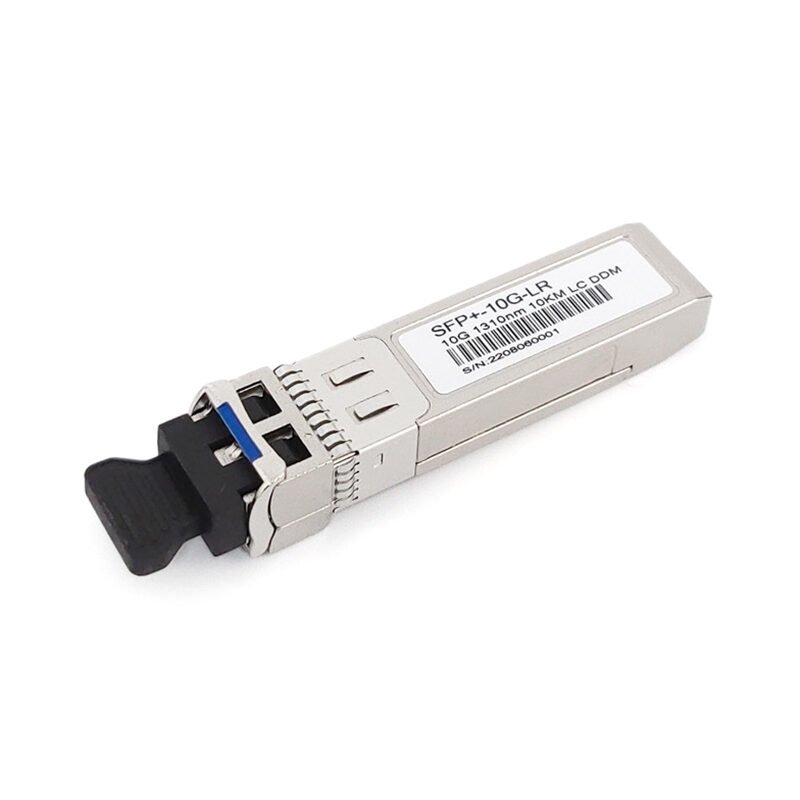

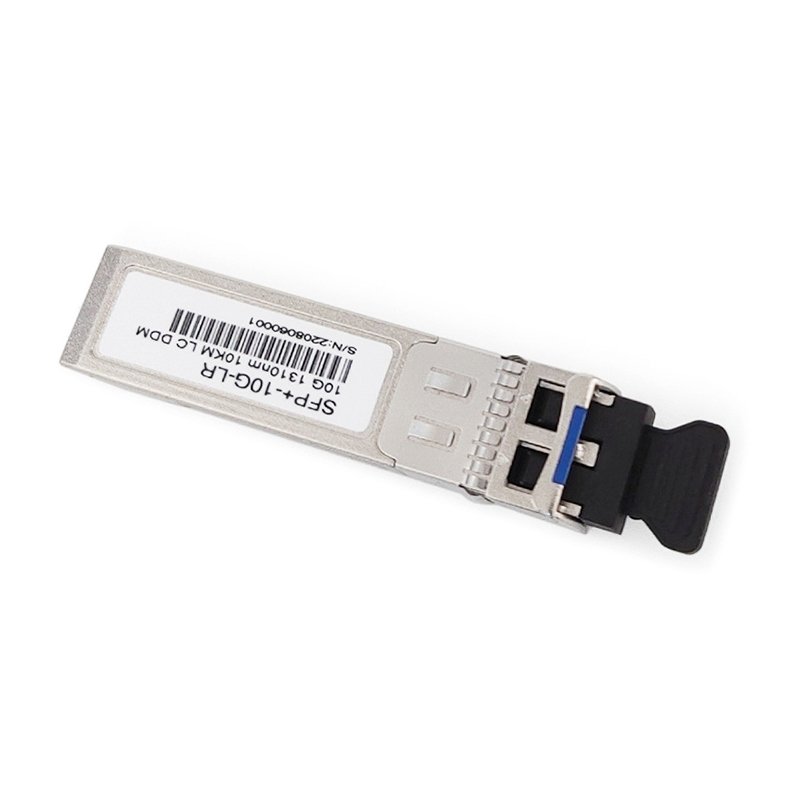

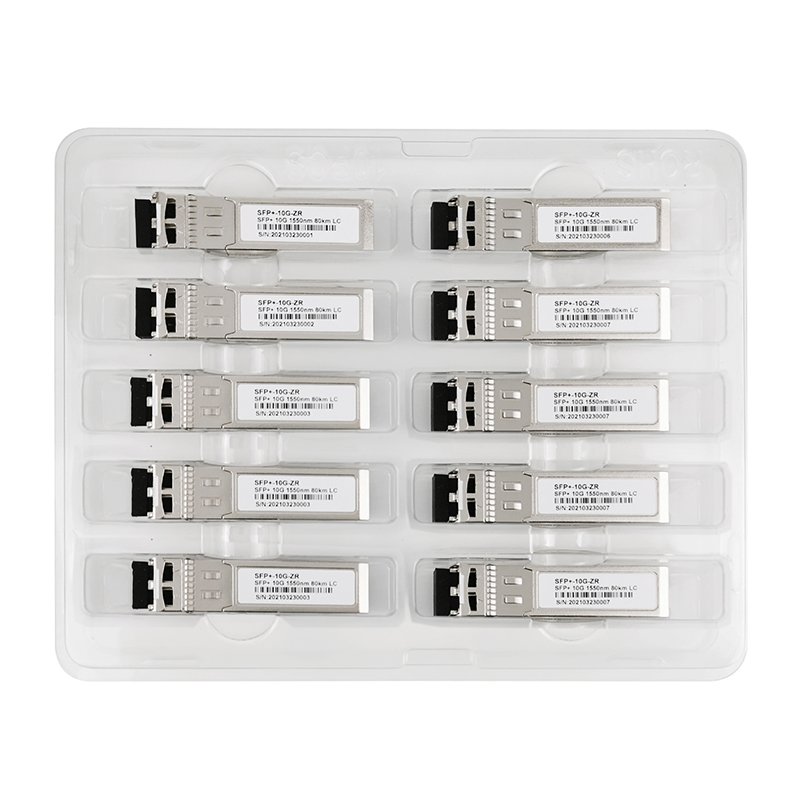

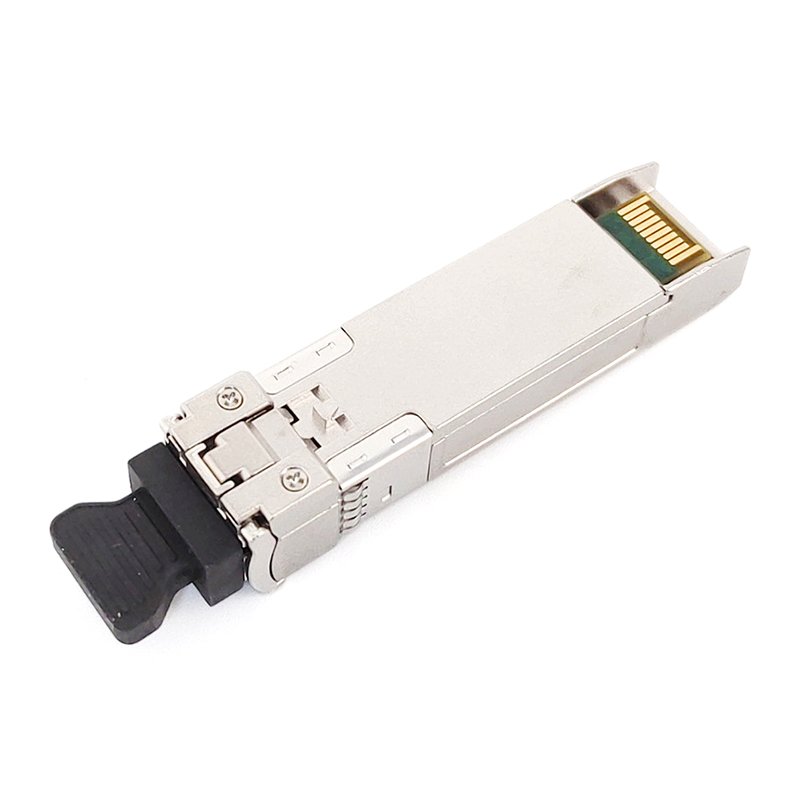

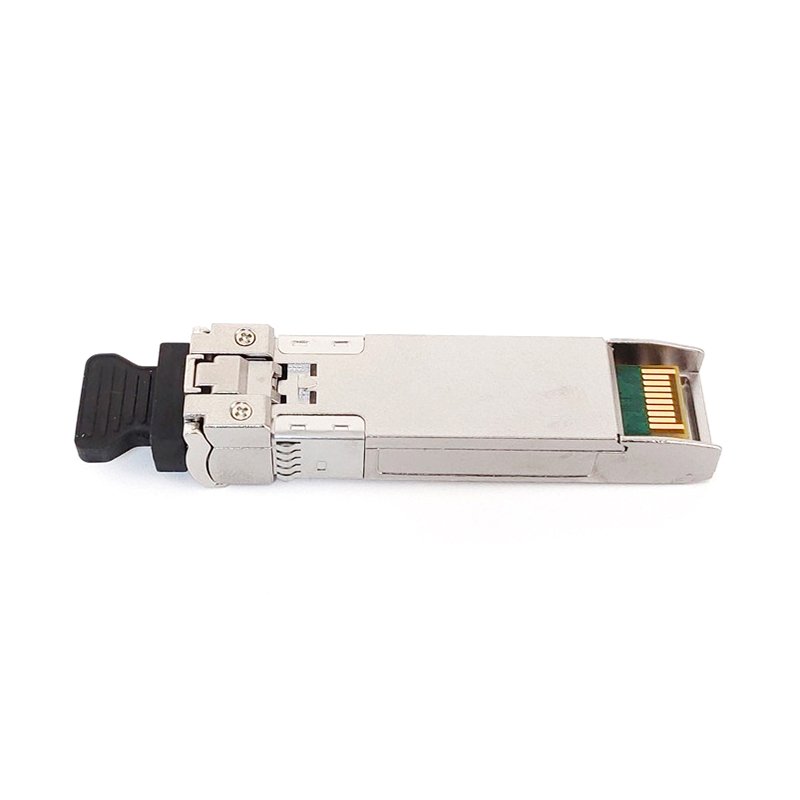

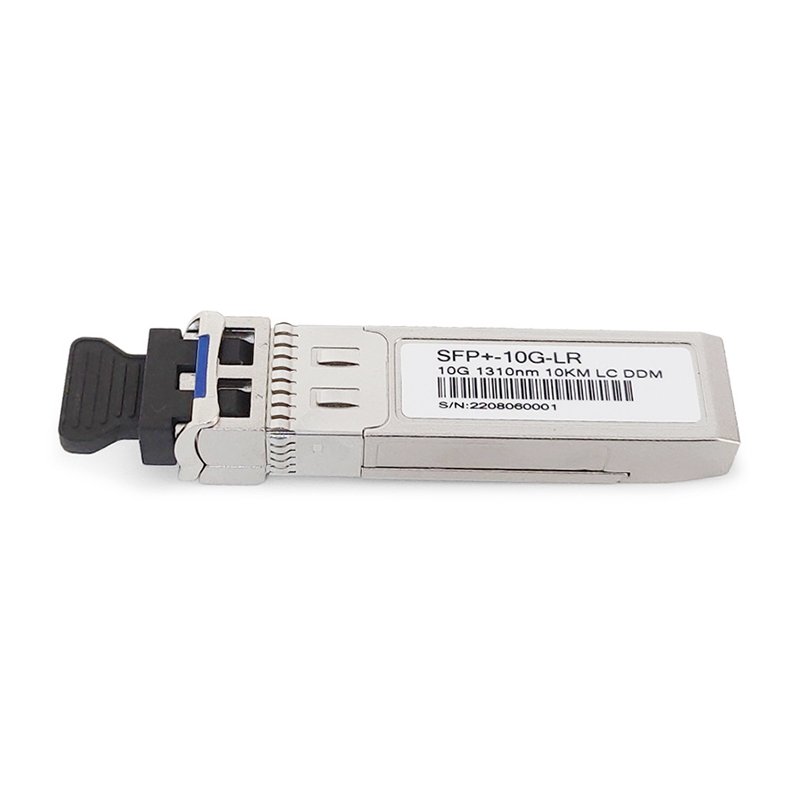

SFP Plus Optical Transceiver
The SFP Plus Optical Transceiver is a hot-pluggable transceiver that supports data rates of up to 10 Gbps. It is designed for use in a variety of applications, including data centers, enterprise networks, and service provider networks.
Description
SFP Plus Optical Transceiver: High-Speed Data Transmission over Fiber Optic Cable
Features
- Supports data rates of up to 10 Gbps
- Hot-pluggable for easy installation and removal
- Supports a variety of distances and wavelengths
- Low power consumption
- RoHS compliant
Applications
- Data centers
- Enterprise networks
- Service provider networks
- High-performance computing (HPC)
- Storage area networks (SANs)
Specifications
| Parameter | Value |
| Data rate | Up to 10 Gbps |
| Distance | Up to 40 km |
| Wavelength |
850 nm, 1310 nm, or 1550 nm
|
| Power consumption | Less than 2.5 W |
| Operating temperature | 0°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Humidity |
5% to 95% RH, non-condensing
|
Product Benefits
The SFP Plus Optical Transceiver offers a number of benefits, including:
- High performance: It supports data rates of up to 10 Gbps, making it ideal for demanding applications.
- Versatility: It is available in a variety of distances and wavelengths, so you can choose the right one for your needs.
- Reliability: It is designed for high reliability and is backed by a warranty.
- Affordability: It is an affordable solution for high-speed data transmission.
How to Choose the Right SFP Plus Optical Transceiver
When choosing an SFP Plus Optical Transceiver, there are a few factors to consider:
- Data rate: The data rate you need will depend on your application. If you need to transmit data at 10 Gbps, you will need an SFP Plus Optical Transceiver that supports that data rate.
- Distance: The distance you need to transmit data will also depend on your application. If you need to transmit data over a long distance, you will need an SFP Plus Optical Transceiver that supports that distance.
- Wavelength: The wavelength you need will depend on the type of fiber you are using. If you are using single-mode fiber, you will need an SFP Plus Optical Transceiver that uses a 1310 nm or 1550 nm wavelength. If you are using multimode fiber, you will need an SFP+ Optical Transceiver that uses an 850 nm wavelength.
- Connector type: The connector type you need will depend on the type of switch or router you are using. If you are using a switch or router with an LC port, you will need an SFP Plus Optical Transceiver with an LC connector. If you are using a switch or router with an SC port, you will need an SFP Plus Optical Transceiver with an SC connector.
It is a versatile and affordable solution for high-speed data transmission. It is ideal for a variety of applications, including data centers, enterprise networks, and service provider networks.
