Stay Thimble | Protect Wire Rope from Wear and Tear

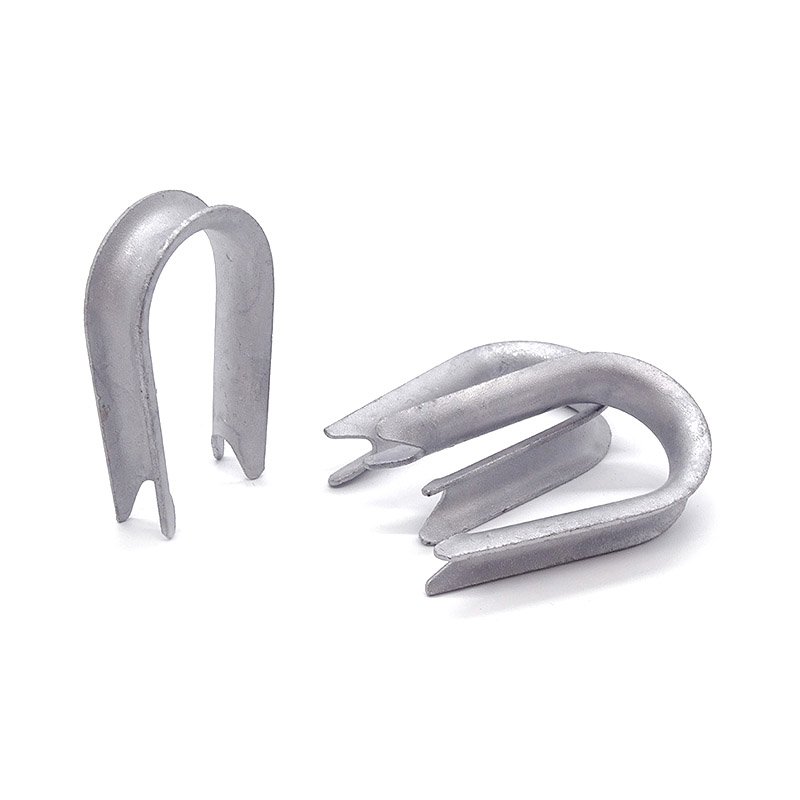

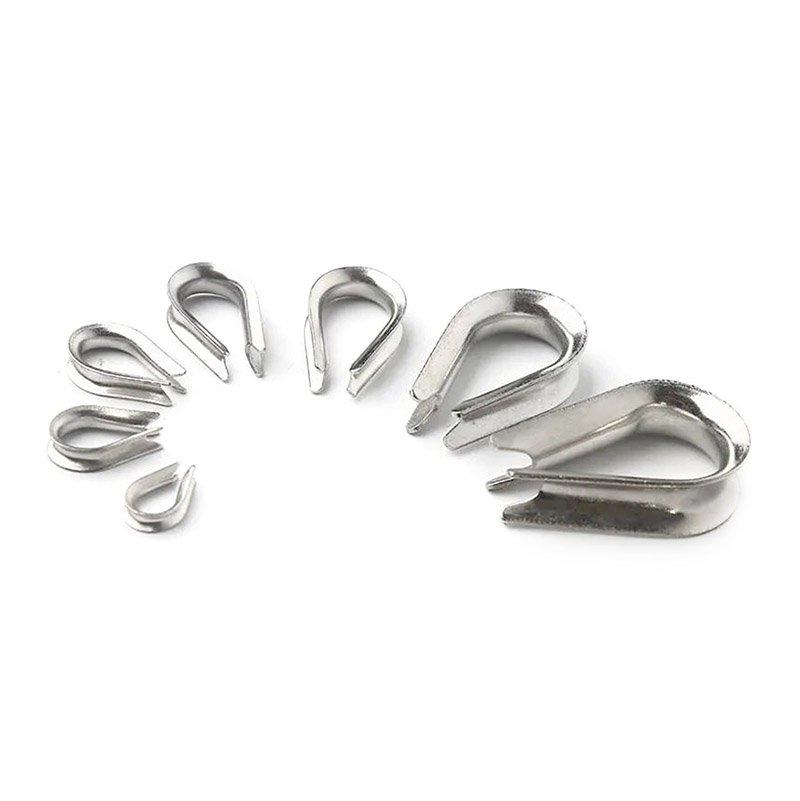

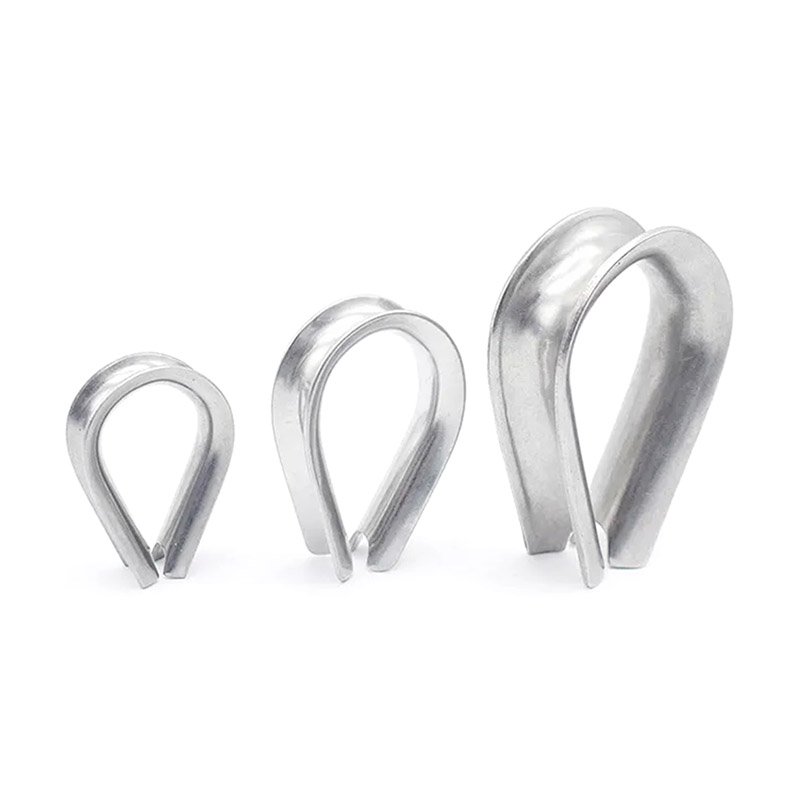

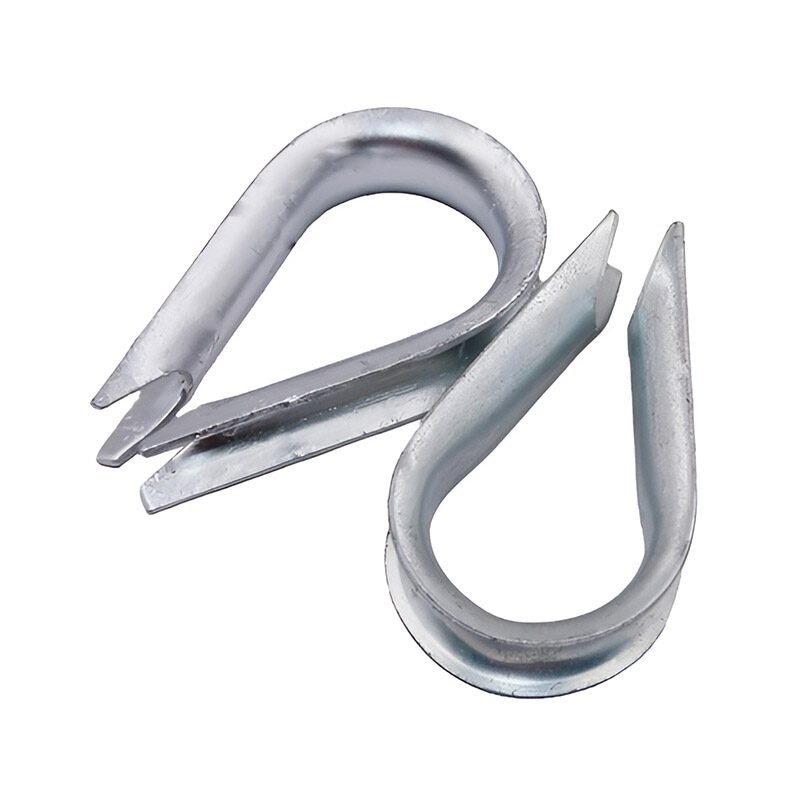

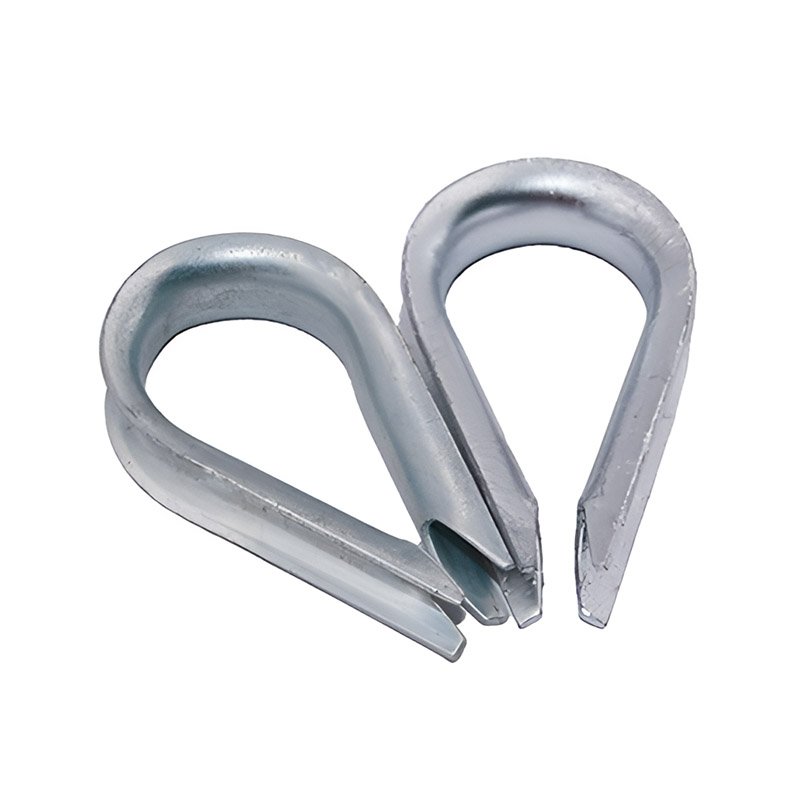

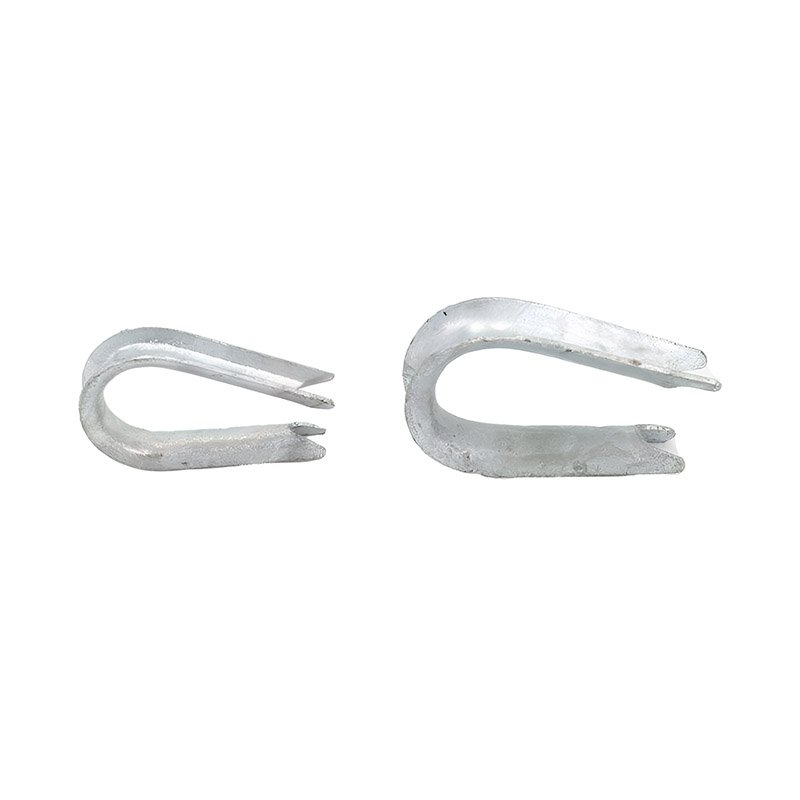

A stay thimble is a metal sleeve that is used to protect wire rope from wear and tear. It is typically made of galvanized steel or stainless steel, and it is available in a variety of sizes to fit different wire rope diameters.
Stay thimbles are commonly used in guying assemblies, which are used to support tall structures such as power poles and radio towers. They can also be used in other applications, such as hoisting and rigging.
Description
Stay Thimble | Protect Wire Rope from Wear and Tear
Benefits
- Durability: They are made of high-quality materials, such as stainless steel, which makes them durable and resistant to wear and tear.
- Strength: They are strong and can withstand heavy loads.
- Versatility: They can be used for a variety of applications.
- Ease of Use: They are easy to use and install.
Common Parameters
| Size | Wire Rope Diameter (mm) | Eye Diameter (mm) | Length (mm) | Weight (g) |
| 1/4″ | 6.35 | 12.7 | 22.2 | 35 |
| 3/8″ | 9.53 | 19.05 | 28.6 | 63 |
| 1/2″ | 12.7 | 25.4 | 35 | 90 |
| 5/8″ | 15.88 | 31.75 | 41.3 | 127 |
| 3/4″ | 19.05 | 38.1 | 47.6 | 170 |
| 7/8″ | 22.23 | 44.45 | 53.9 | 227 |
| 1″ | 25.4 | 50.8 | 60.3 | 292 |
| 1-1/8″ | 28.6 | 57.15 | 66.7 | 368 |
| 1-1/4″ | 31.75 | 63.5 | 73.1 | 454 |
| 1-1/2″ | 38.1 | 76.2 | 82.6 | 580 |
| 1-3/4″ | 44.45 | 88.9 | 92.1 | 726 |
| 2″ | 50.8 | 101.6 | 101.6 | 892 |
Applications
- Construction: They are commonly used in the construction industry to secure guy wires.
- Rigging: They are used in rigging applications to secure cables and ropes.
- Marine: They are used in marine applications to secure rigging and sails.
- Agriculture: They are used in agriculture applications to secure fences and other structures.
How to Choose the Right Stay Thimble
When choosing a Thimble, it is important to consider the following factors:
- The diameter of the wire rope that will be used with the Thimble.
- The application for the Stay Thimble.
- The desired material and finish of the Stay Thimble.
Conclusion
They are a versatile tool that can be used for a variety of applications. They are durable, strong, and easy to use. When choosing a Stay Thimble, it is important to consider the diameter of the wire rope that will be used with the Thimble, the application for the Stay Thimble, and the desired material and finish of the Stay Thimble.
