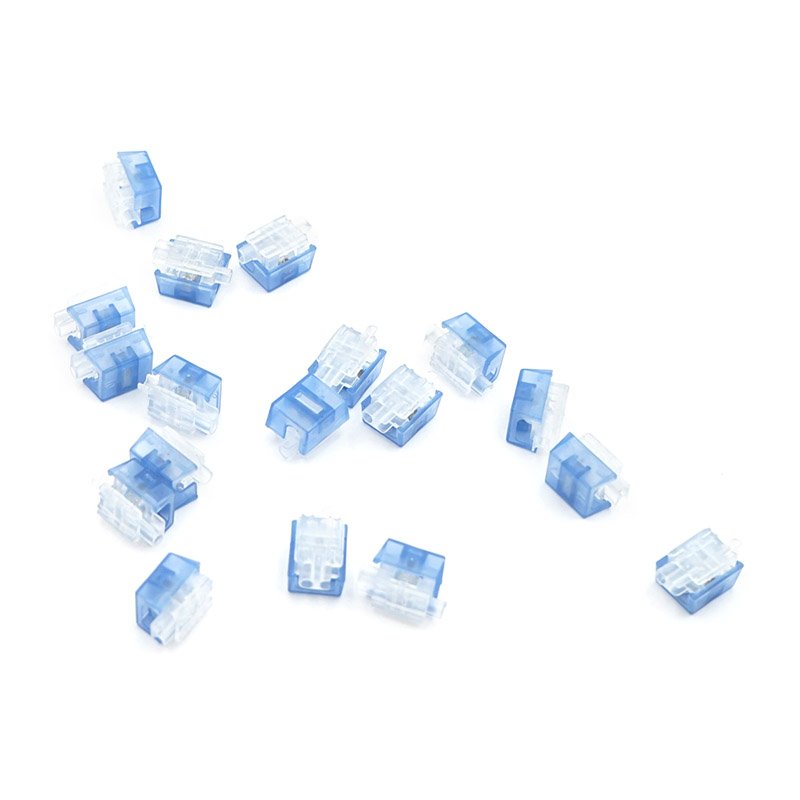

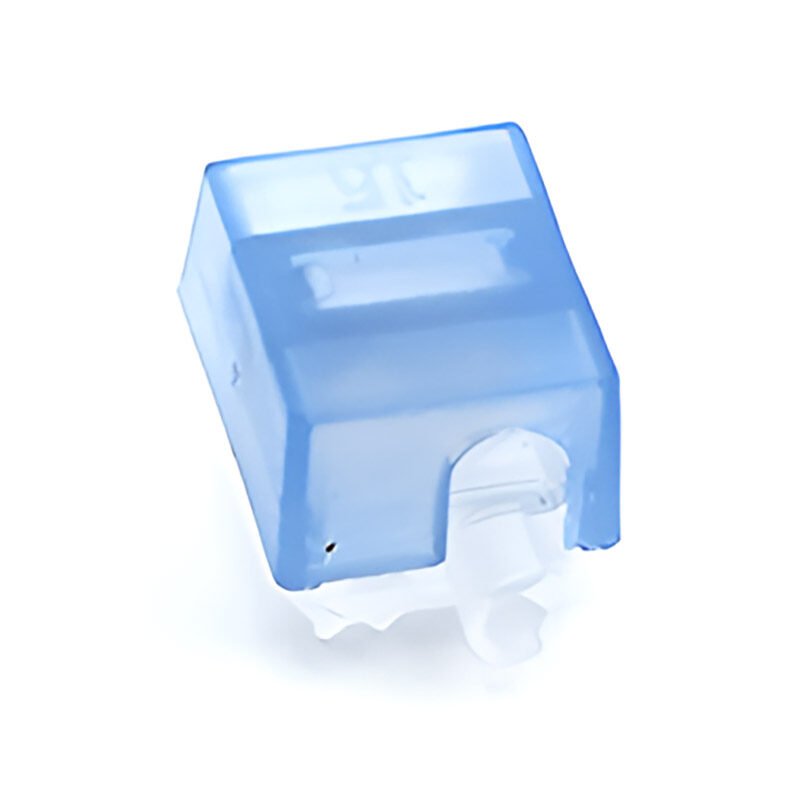

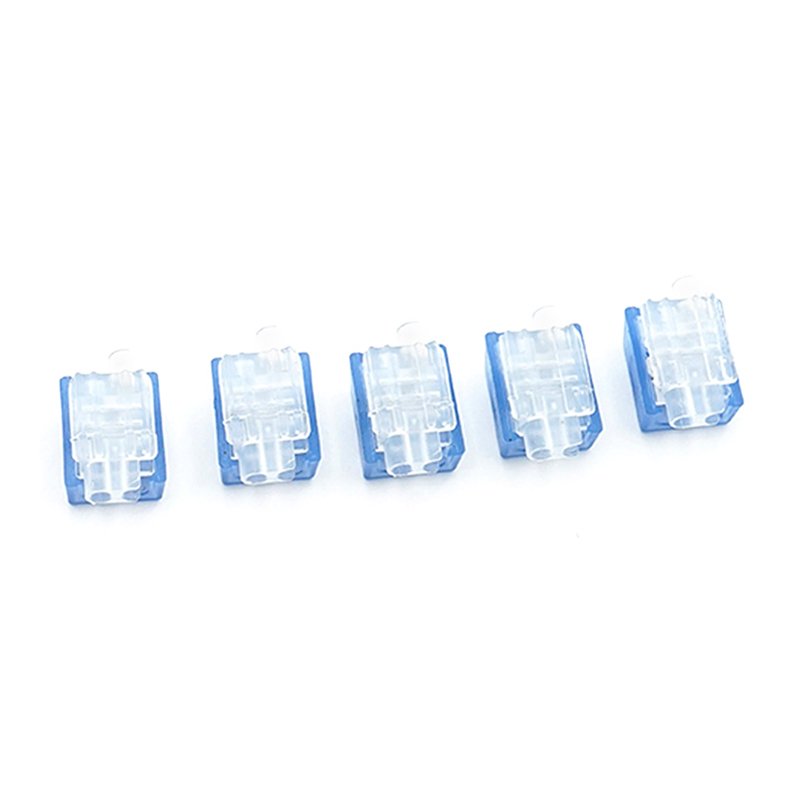

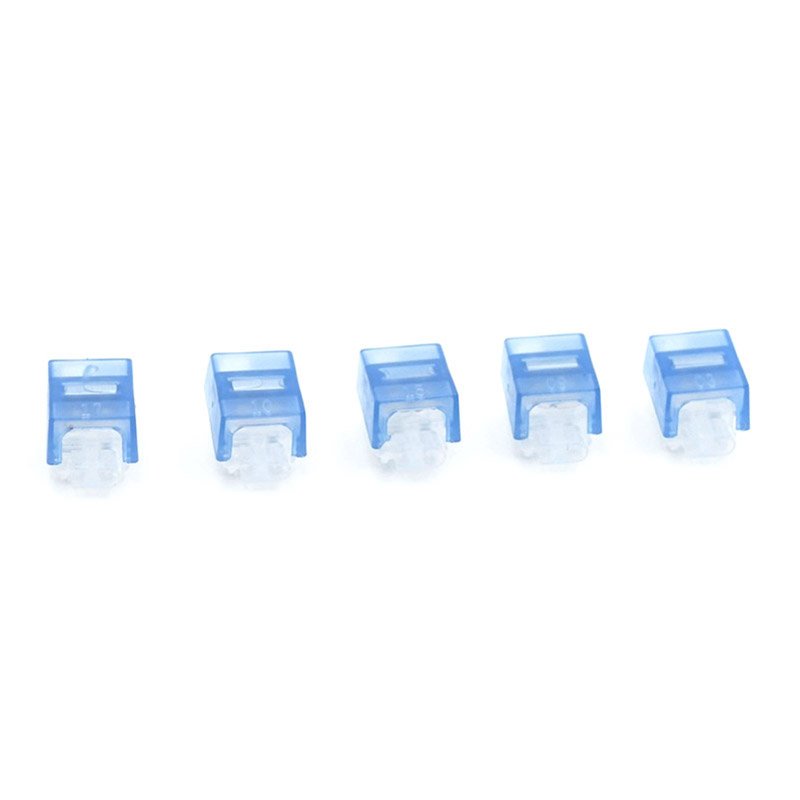

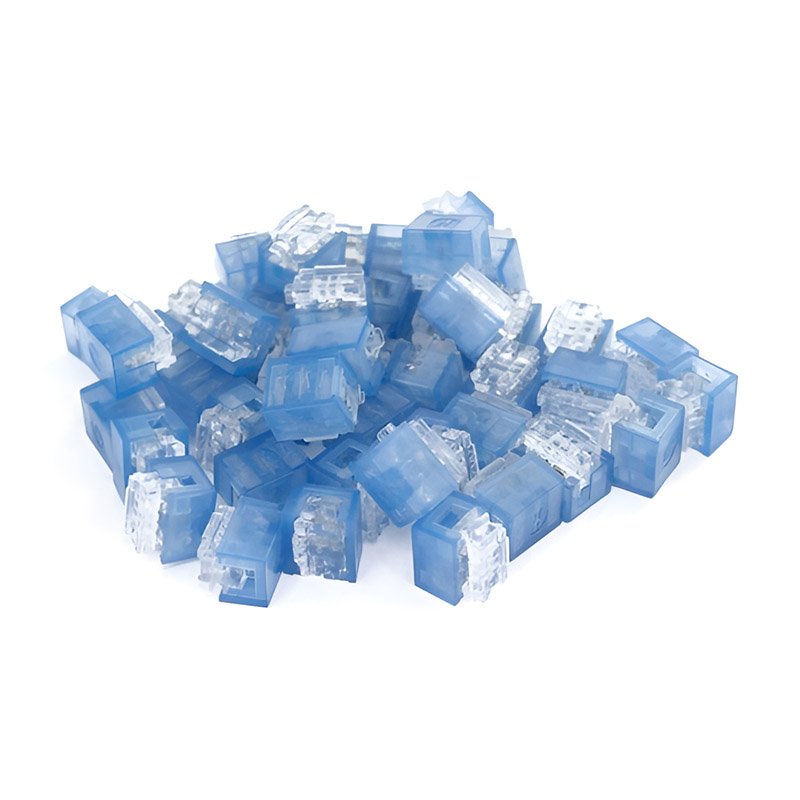

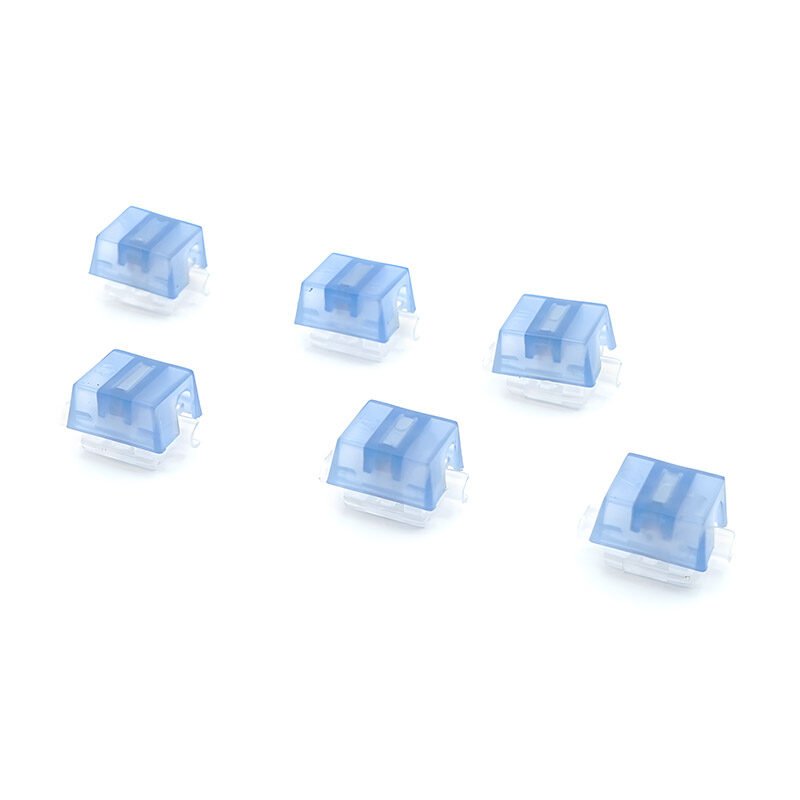

UB2A Bridging Connector
UB2A Bridging Connectors are a type of electrical connector that is used to connect two wires together. They are made of copper, which is a highly conductive material that ensures a reliable connection. They are also equipped with a factory-installed sealant to protect against corrosion and seal out moisture, making them ideal for use in harsh environments.
Description
UB2A Bridging Connector: Reliable, Easy-to-Use Electrical Connector
Features
- Real time savers: UB2A Bridging Connectors enable the user to tap into another wire without interrupting service.
- Durable: Made of copper and equipped with a factory-installed sealant to protect against corrosion and seal out moisture.
- Easy to use: Pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
- Versatile: Compatible with copper wires of 0.4-0.9mm (19-26 AWG).
Applications
- Splicing: UB2A Bridging Connectors are ideal for splicing two wires of the same size.
- Voice: They can be used to connect telephone wires.
- Data: UB2A Bridging Connectors can be used to connect data cables.
- Premise wiring: They can be used for a variety of premise wiring applications.
Specifications
| Feature | Value |
| Copper Wire Number | Two |
| Applicable Wire |
Telephone copper wire of 0.4mm-0.9mm (19-26 AWG) or copper-clad steel connector with insulation diameters 2.08mm (0.082″), and Cat.5 compliant
|
| Gel | Yes |
| Operating Temperature | -30 to +70°C |
Benefits
- Reliable connections: They provide a reliable connection that is resistant to corrosion and moisture.
- Easy to install: They can be installed quickly and easily with a crimping tool.
- Versatile: They can be used for a variety of applications.
How to Use
- Strip the insulation from the ends of the wires you want to connect.
- Insert the wires into the UB2A Bridging Connector.
- Crimp the connector with a crimping tool.
- Inspect the connection to ensure that it is secure.
UB2A Bridging Connectors are a versatile and reliable solution for connecting wires. They are easy to use and are ideal for a variety of applications.
