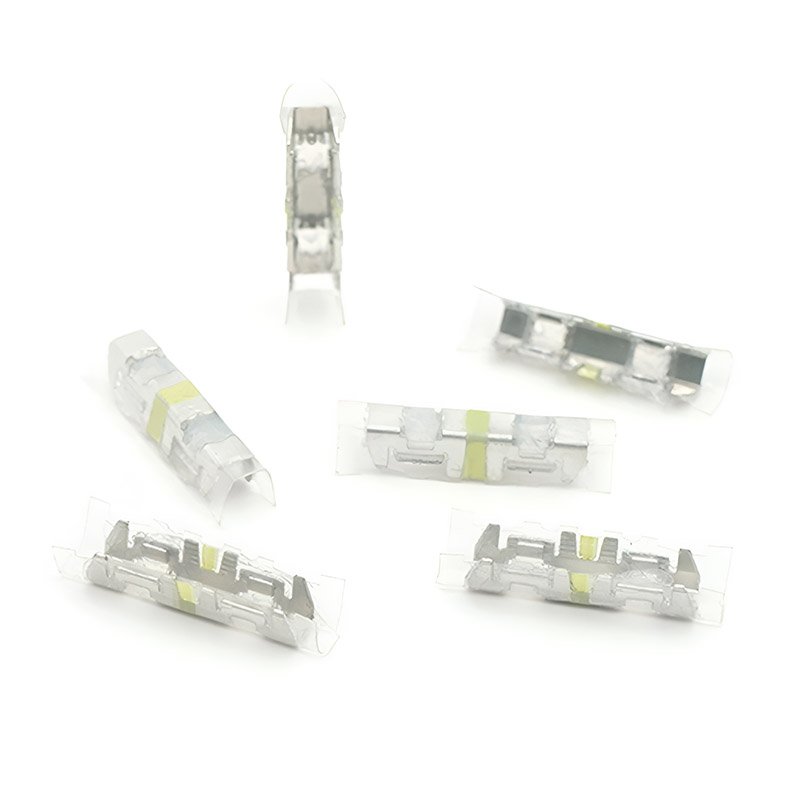

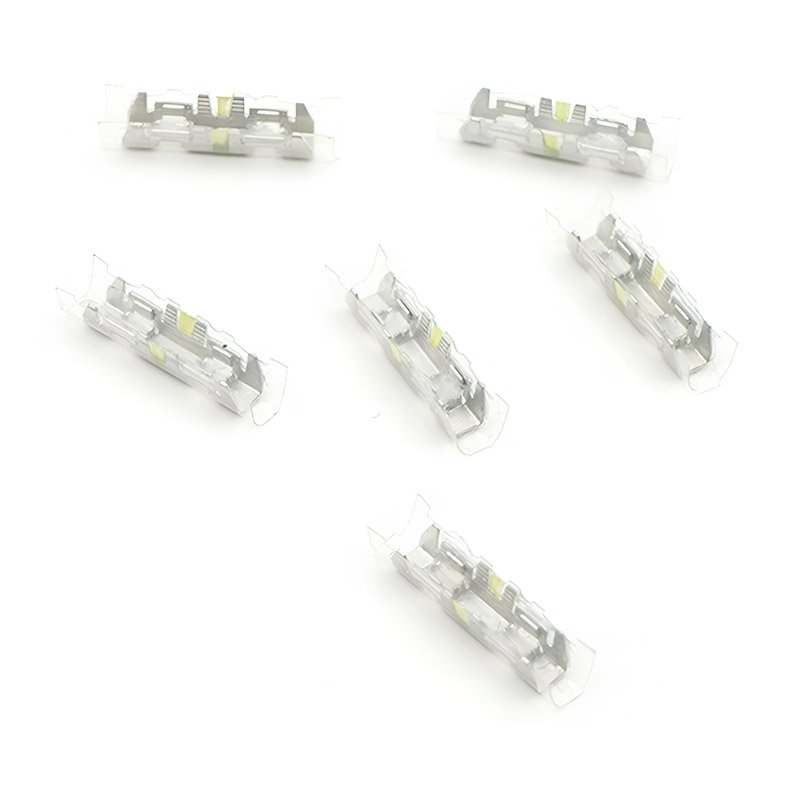

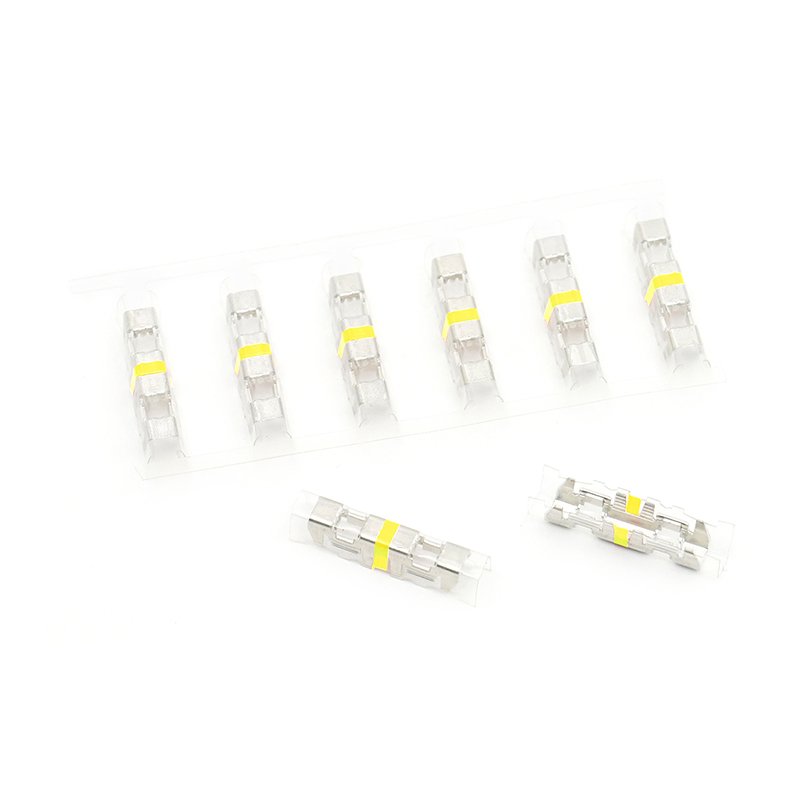

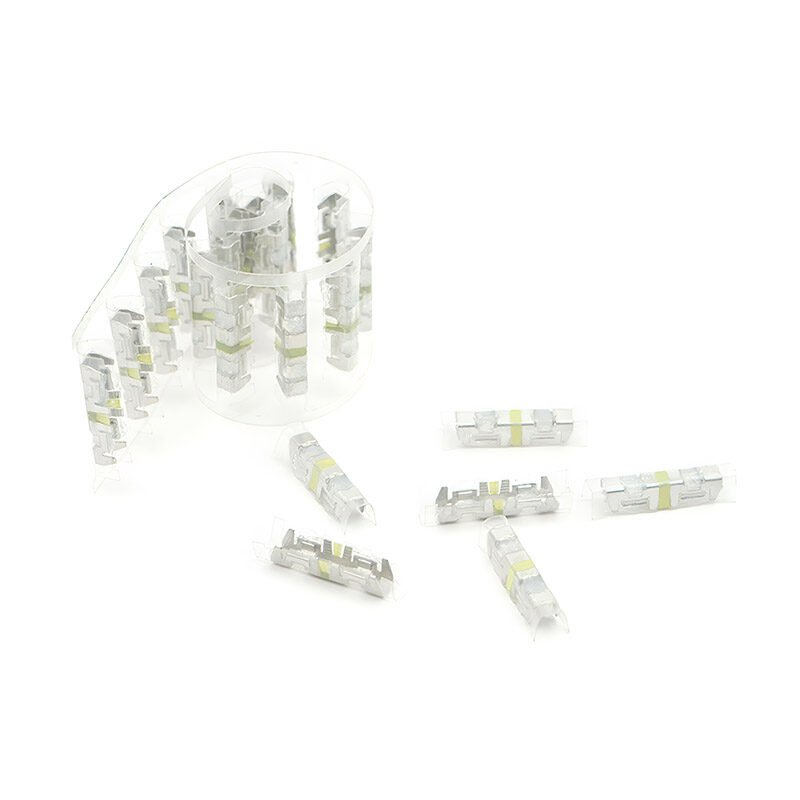

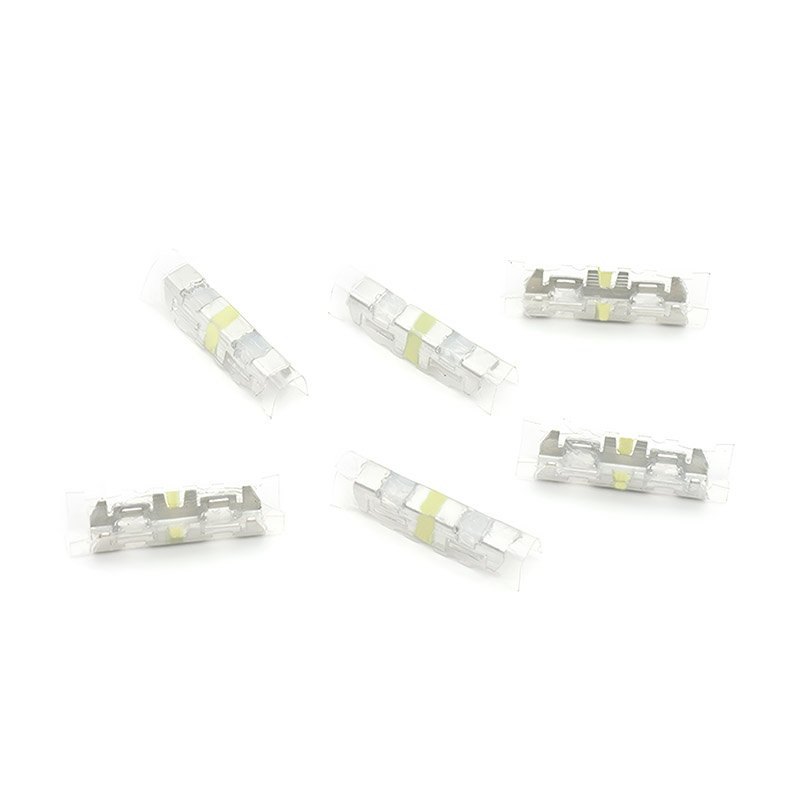

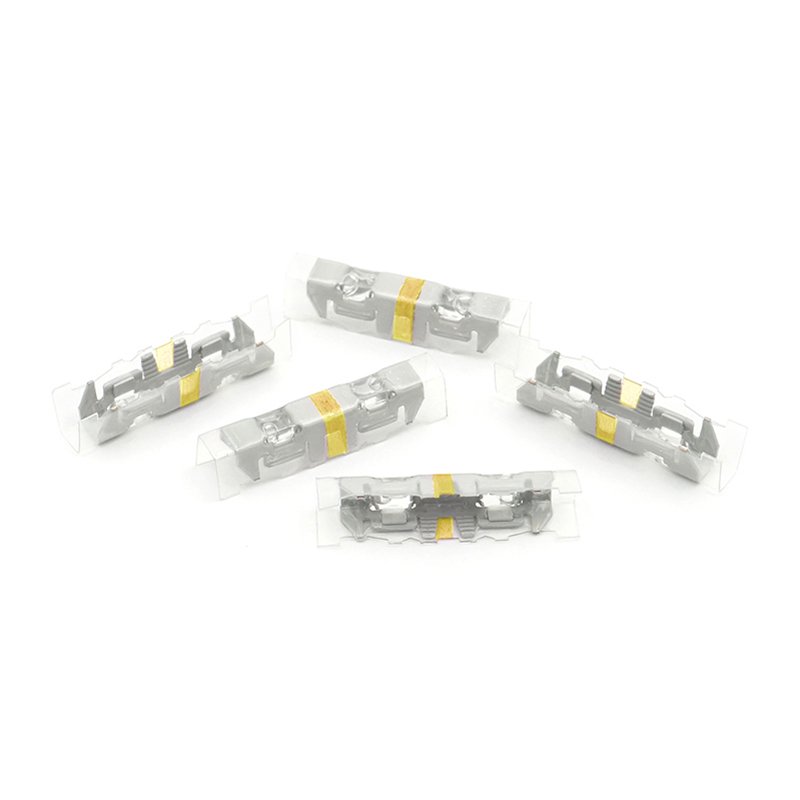

Yellow Picabond Connector

Yellow Picabond Connector is a cost-effective and dependable solution for splicing multi-conductor telephone cable. They are constructed from tin-plated phosphor bronze and tin-plated brass with bonded polyester insulation for durability and long-lasting performance.

Description

Yellow Picabond Connector: Economical and Reliable Splicing Solution

Key Features

  • Economical and reliable splicing solution
  • Tin-plated phosphor bronze and tin-plated brass construction for durability
  • Bonded polyester insulation for long-lasting performance
  • Splices any solid core wire, 28 to 19 AWG (0.32 – 0.9 mm), with pulp, paper, or plastic insulation
  • Lightweight and compact design reduces space requirements by up to 33%
  • Supports straight, butt, tap, and bridge splices

Applications

  • Telephone cable splicing
  • Data cable splicing
  • Security cable splicing
  • Intercom cable splicing

Common Specifications

Specification Value
Wire Size
28 to 19 AWG (0.32 – 0.9 mm)
Insulation Type
Pulp, paper, or plastic
Connector Material
Tin-plated phosphor bronze and tin-plated brass
Insulation Material
Bonded polyester
Splice Type
Straight, butt, tap, and bridge

Benefits

  • Economical: Yellow Picabond Connector is a cost-effective solution for splicing multi-conductor telephone cable.
  • Reliable: These connectors are constructed from high-quality materials and are designed to provide long-lasting performance.
  • Versatile: Yellow Picabond Connector can splice a wide range of wire sizes and insulation types.
  • Space-saving: The lightweight and compact design of these connectors reduces space requirements by up to 33%.
  • Easy to use: Yellow Picabond Connector can be easily installed using a crimp tool.

How to Order

Yellow Picabond Connector is available in a variety of sizes and quantities. To order, please contact our sales team or visit our website.
